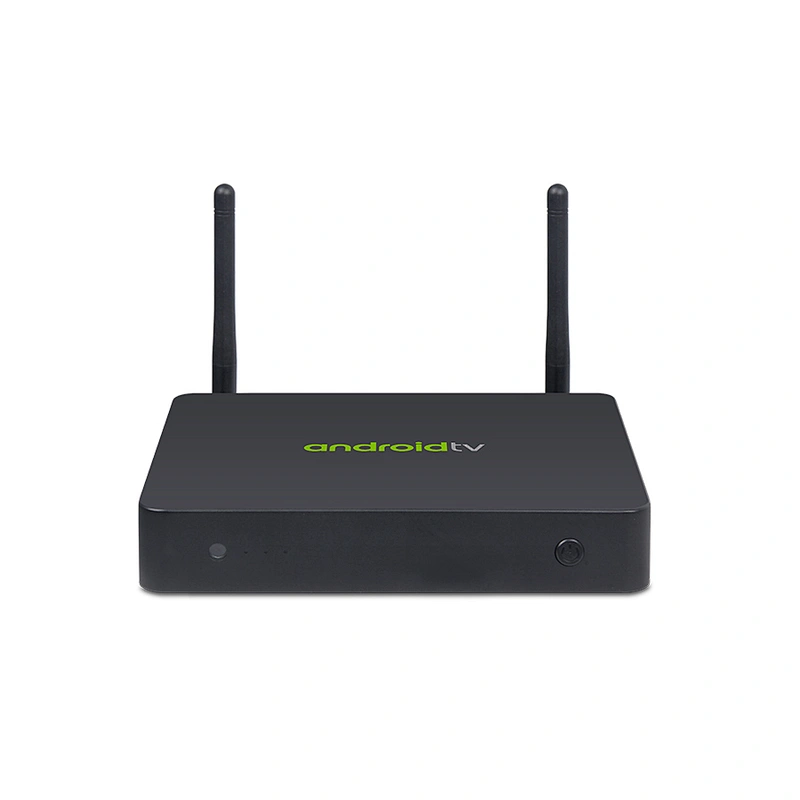

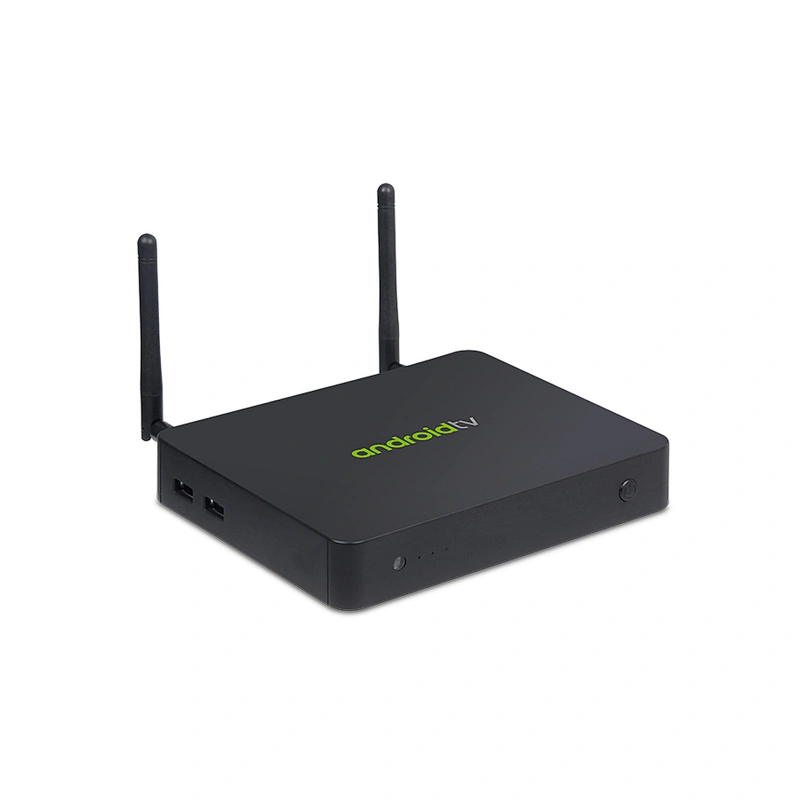

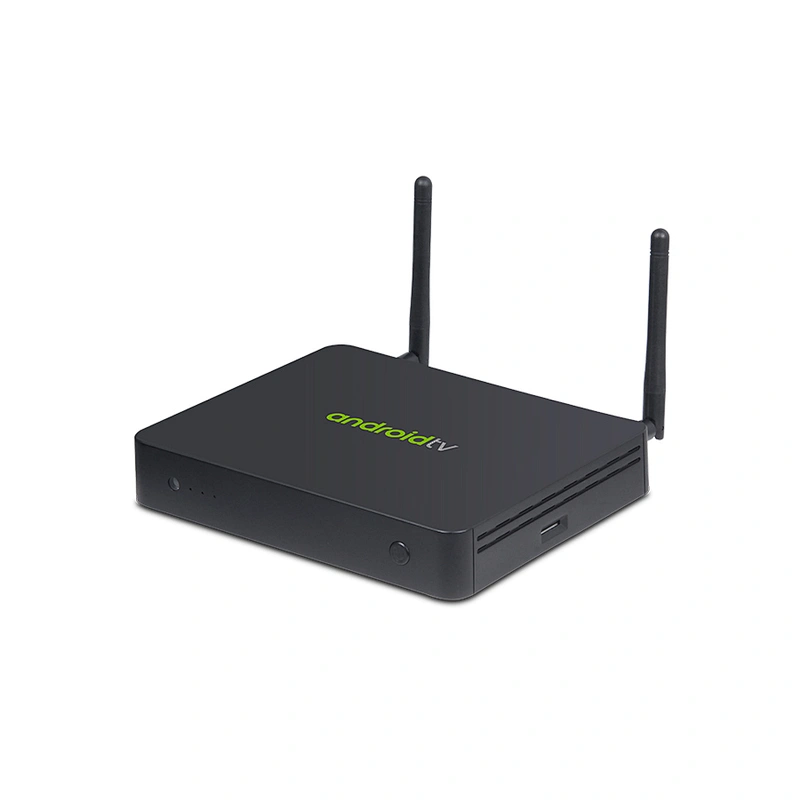

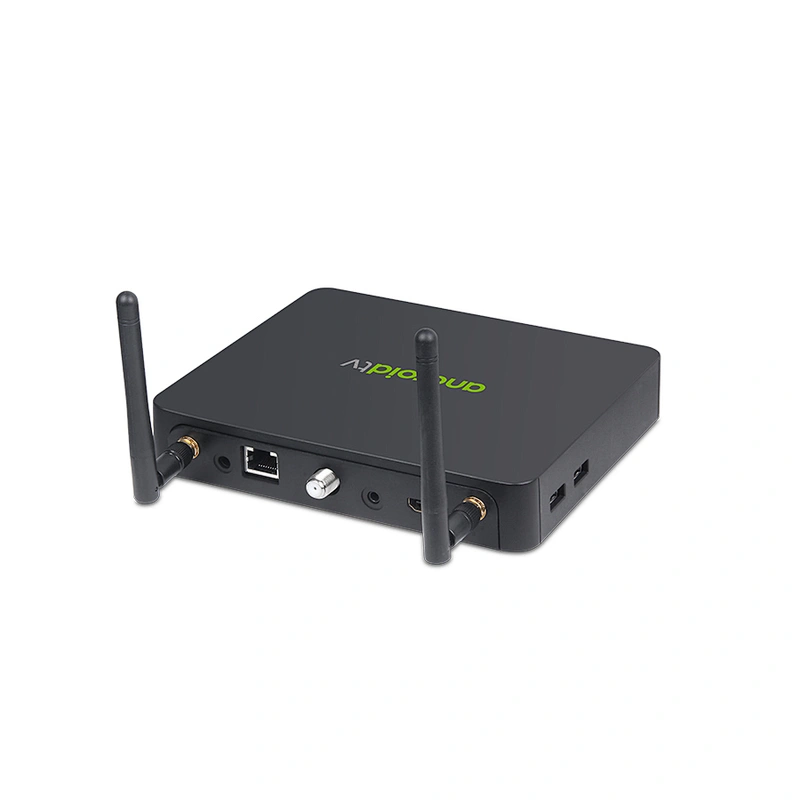

ATV2300 Android TV Quad Core Box

Product Features:

Amlogic S805X Quad Core CPU

Router

IPv6 protocol is optional, both on STB and Router can access to device support IPv6 protocol. Support 4*WLAN and 1*LAN; WPS enabled. Set the router attribute via both background webpage and router setting application on desktop.

3 G & 4G LTE

The LTE wireless module enables the device to have wireless communication function, and can connect to any LTE operator network around the world to achieve high speed data connection through FDD-TE, TDD-LTE, TD- SCDMA, HSPA, UMTS, WCMDA, EVDO, EDGE, EDGE, etc. The module also provides SMS, address book, voice and other functions.

Server Management

Compliance to Broadband Forum TR069 protocol, the device will upload its system information to the server when connect to the server. Users can access to the service using allocated user name and password, manage this device remotely

ISDBT TV Tuner

Compliant to ISDB-T implementation in the Philippines, brings comprehensive audio-visual entertainment while sharing the network

Product Specification

Video/Picture Decoder

VP9 Profile-2 up to 1080p@60fps

H.265 HEVC MP-10@L4.1 up to 1080p@60fps

H.264 AVC HP@L4.2 up to 1080p@30fps

H.264 MVC up to 1080P @60fps

MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)

WMV/VC-1 SP/MP/AP up to 1080P@60fps

AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps

MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)

MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)

RealVideo 8/9/10 up to 1080P@60fps

Supports JPEG thumbnail, scaling, rotation and transition effects

Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats.

Size 134x106x10 mm

Net Weight 276 g

User's Guide

HDMI Cable

BT Remote Controller

Power Adapter AC100 ～ 240V 50/60Hz
