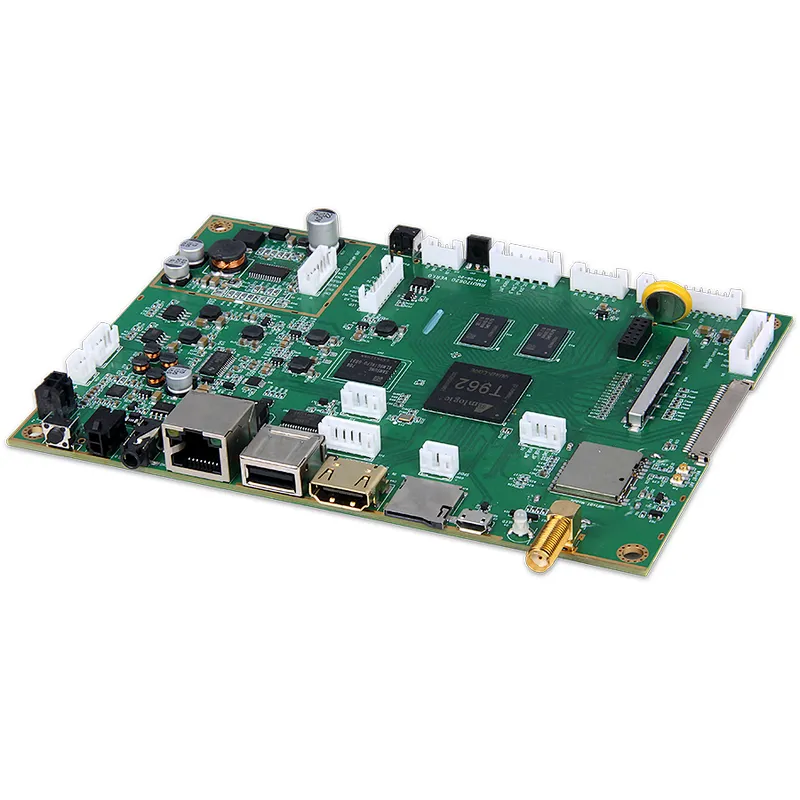

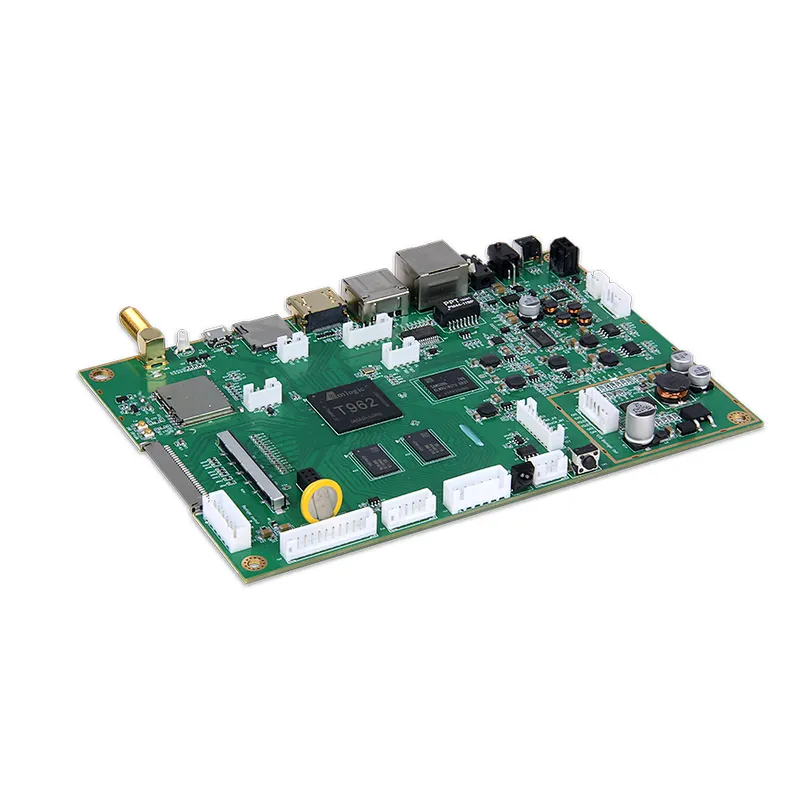

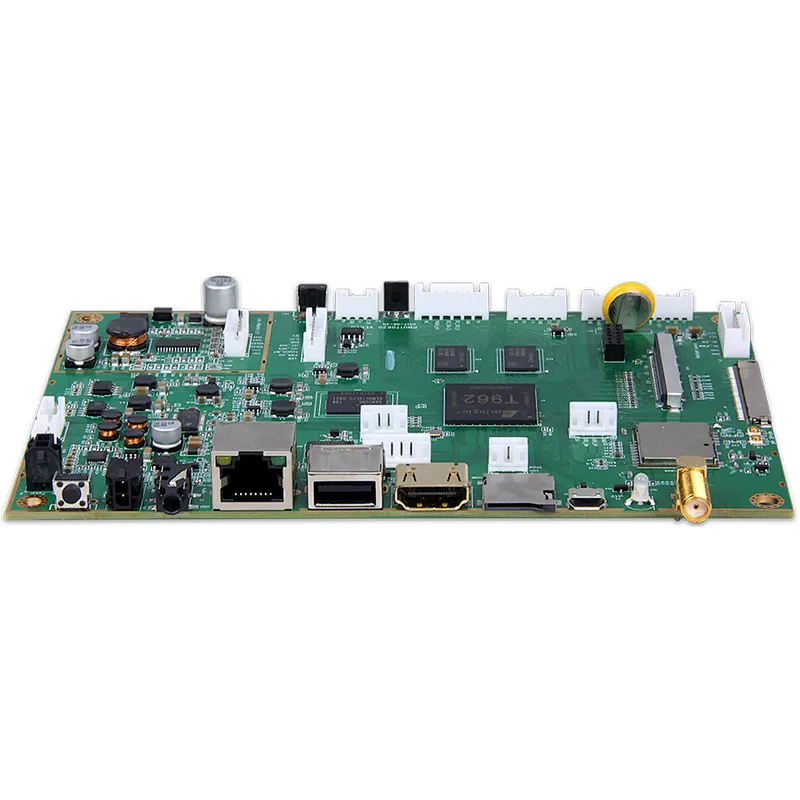

Amlogic T962 Board – DB7

Model NO.: Amlogic T962 Board – DB7

▪ Quad core ARM® Cortex™-A53 CPU up to 1.5GHz
▪ Quad-core ARM® Mali™-Mali 450MP
▪ 3GB Dual-channel DDR4 750MHz RAM
▪ 64GB eMMC 7.1 OS
▪ WLAN 802.11ac and Bluetooth Supporting via USB
▪ USB 2.0 *2,USB OTG 2.0 *1
▪ Support NTSC/PAL/SECAM/DTMB/DVB-C/TS
▪ HDMI-in, V-by-one, LVDs, 4K

Quantity:

Product Description

DB7 is T962X SOC Developer Board, low power consumption and high performance, suitable for developers, and can also be directly applicable to different sizes and types of large screens, projectors....

Support for customization:

Optional hardware configuration: DDR/EMMC/WIF+BTI Provide SDK secondary development MDM custom Custom APP

Tuner: DVB-T/DVB-T2/ATSC/DMB-TH/ISDB-T Module(Optional)

Powerful display interface:

IN：1*HDMI

Out：1*Double LVDS or 1*V-BY-ONE 4K (Optional)

Rich extension interface:

1*TF、4*USB、1*RJ45、1*WIFI+BT、1*RS232、 1*microphone、1*Speaker、1*Camera、 1*SPDIF

Product Specification

DB7	DB7 based motherboard
CPU Frequency	1.5GHz
Internal Memory	1GB/2GB DDR4 RAM Optional
Internal Storage	8~64GB eMMC Optional
OS	Android 7.1
Built-in WiFi	802.11 a/b/g/n/ac
WiFi Frequency Range	2.400~2.497GHz 4.900~5.845GHz
BT	4.0
Ethernet port	1*RJ45 10/100Mbps
Display	IN：1HDMI Out：1Double LVDS or 1* V-BY-ONE(Optional)
USB Interface	4USB 2.0(1USBSlot+3USB Head pin);1Micro USB(OTG)
TF Slot	MAX 128GB
Serial port	1*RS232
Tuner	DVB-T/DVB-T2/ATSC/DMB-TH/ ISDB-T Module(Optional)
IR	support
Camera	USB 2.0MP/5.0MP(Optional)
Speaker	2*8Ω5W
Audio	1SPDIF（Head pin）、 1Standard 3.5mm headphone jack and microphone jack
watch dog	support
LED	1POWER LED(on/standby red, working green) +1 Backlight
Size (cm)	17.0*11.0
Net Weight (g)	115
Power	DC12V/3A

Send Message

Related Products

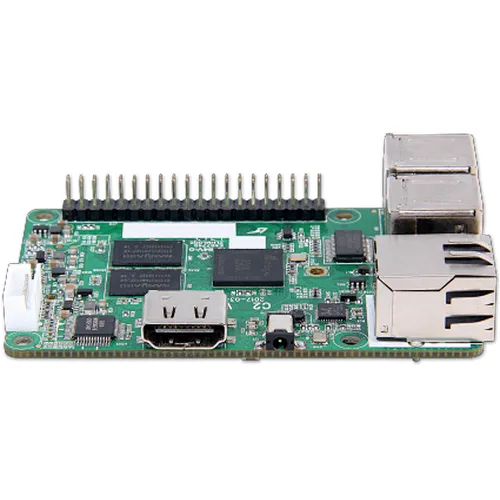

XPI-S905X
