Qualcomm MSM8909 Quad Core CPUProduct Features:
+ ARM Cortex-A7 microprocessor cores up to 1.1 GHz
+ QDSP6 v5 core at up to 691 MHz
+ 2GB DDR3 memory
+ 8GB EMMC
+ Android OS 6.0
Product Introduction

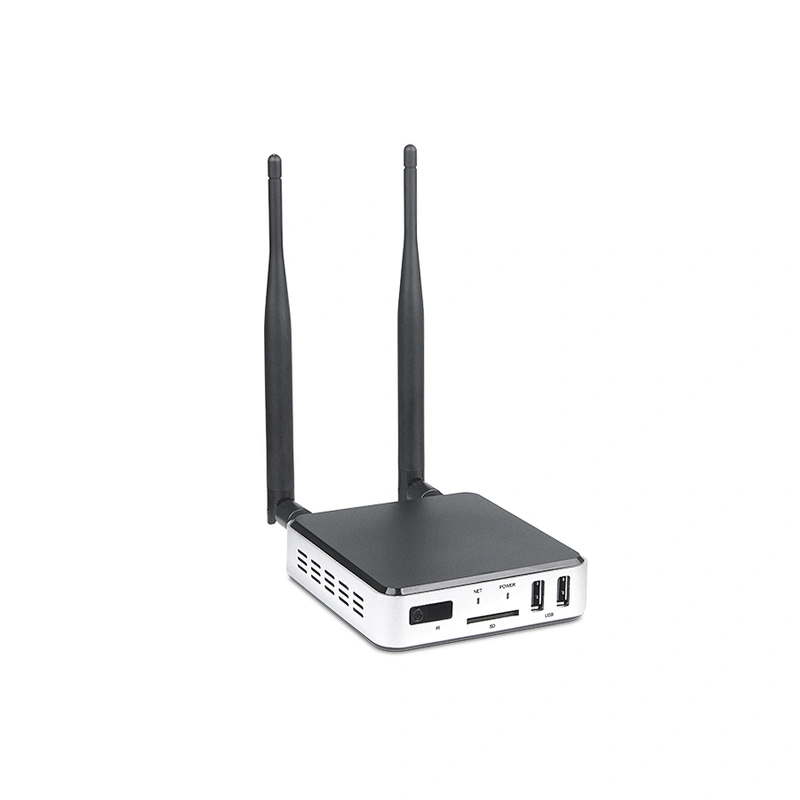

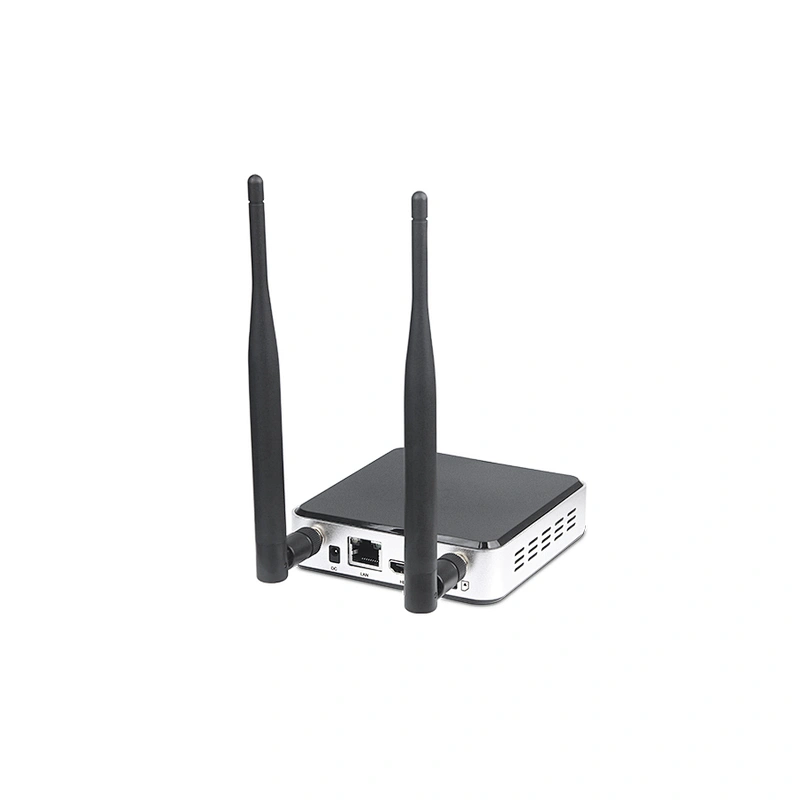

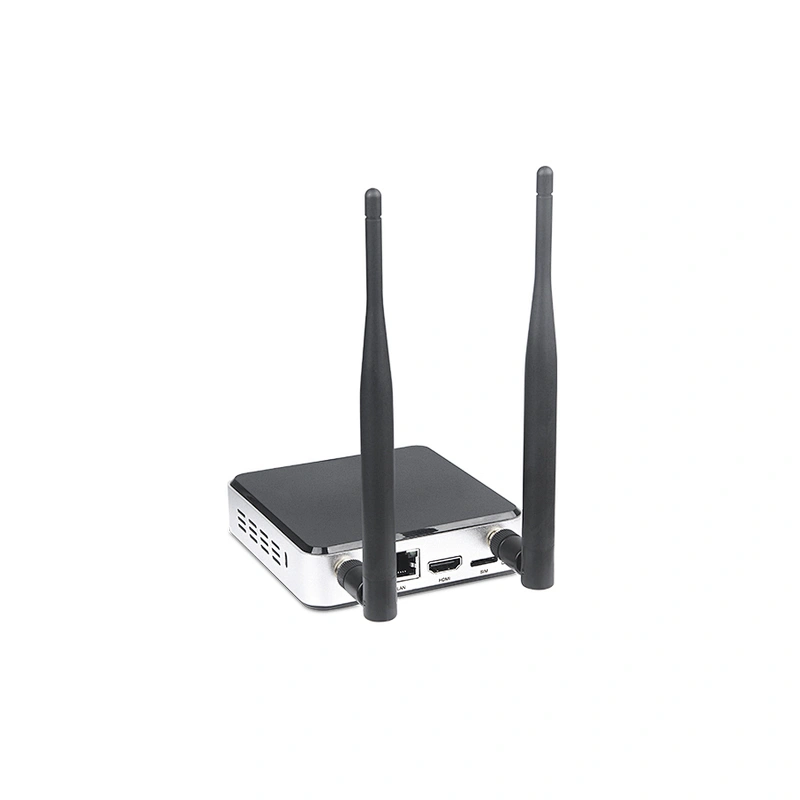

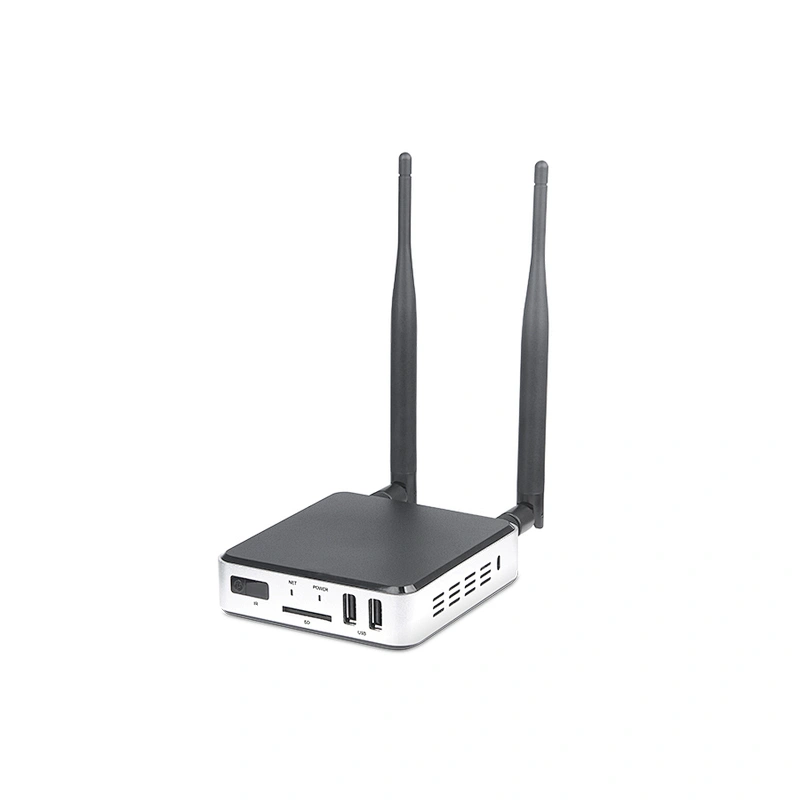

The ATV329Q maintains mobile devices’ feature sets while drastically reducing cost and board space. Its ARM® Cortex™-A7 application processors helps expand mass-market chipset capabilities by making 3G and 4G high-speed data and rich multimedia features accessible to more consumers worldwide. The MSM8909 chipset and system software solution supports the Convergence Platform for mobile applications by leveraging QTI’s years of systems expertise and field experience with CDMA, WCDMA, GSM, TD-SCDMA, LTE, and GNSS .technologies.
QDSP6 v5 core GPU
QDSP6 v5 core GPU is designed to maximize reuse of the available resources during graphics operation.
Therefore it is able to deliver both performance and power efficiency.
Customizable GUI
We provided GUI customization and we have a vast collection of Launcher created by our R&D team for you to choose from.
Product Specification
CPU | Quad Core ARM Cortex-A7 microprocessor cores up to 1.1 GHz |
GPU | QDSP6 v5 core at up to 691 MHz |
RAM | 2G DDR3 (Optional 1G DDR3) |
ROM | 8G EMMC |
OS | Android OS 6.0 |
Optional USB HDMI DC Input MicroSD Slot Video Output Audio Output IR Receiver LAN WiFi BT 3G/4G WAN air interfaces Audio Decoder | DOLBY USB2.0 x2 V1.4 5.0V-2A Max: 32G HDMI HDMI n/a RJ45 10/100M/(1000M Optional) Ethernet interface IEEE 802.11 b/g/n, 2.4G (5.8G Optional) Optional Built-in CDMA, WCDMA, GSM, TD-SCDMA, LTE GSM/GPRS/EDGE CDMA2000® 1x, 1x Advanced, and 1xEV-DOrA WCDMA R99 to Rel 9 DC-HSPA+ (42 Mbps) TD-SCDMA with 4.2 Mbps DL and 2.2 Mbps UL option LTE Cat 4, including 2 x 10 MHz carrier aggregation PM8909/PM8916-1 audio required Low power audio for mp3 and AAC playback; surround sound Versatile – many audio playback & voice modes; encoders for audio & FM recording; many concurrency modes G711; Raw PCM; QCELP; EVRC, -B, -WB; AMR-NB, -WB; GSM- EFR, -FR, -HR MP3; AAC+, eAAC; AMR-NB, -WB, G.711, WMA 9/10 Pro Dolby Digital Plus and DTS-HD surround sound Fluence™ Noise Cancellation QAudioFX™/Qconcert™/QEnsemble 128-voice polyphony wavetable |
Video/Picture Decoder
H.264 BP/MP – 720p, 30 fps
MPEG-4 SP / H.263 P0 – WVGA, 30 fps
VP8 – WVGA, 30 fps
H.264 BP/MP/HP – RES, 30 fps
MPEG-4 SP/ASP – RES, 30 fps
DivX 4x/5x/6x – RES, 30 fps
H.263 P0 – WVGA, 30 fps
VP8 – RES, 30 fps
(HEVC) H.265 MP 8-bit – RES, 30 fps
GraphicsAdreno™ 304; 3D graphics accelerator
Up to 400 MHz
Size
Net Weight
User's Guide
HDMI Cable
Optional Remote Controller 2.4G wireless Remote Controller with Nano receiver
USB wire/wireless Mouse & Keyboard
PowerAC100～ 240V 50/60Hz
