1. GENERAL DESCRIPTION
APC810B is an Android Consumer BOX with below new features:
- NXP Quad Core Cortex A53 @1.5GHz and Cortex-M4 core , Android 9.0 OS andLinux
- Support 2GB/3GB LPDDR4,16GB eMMc flash, external expansion storage Micro SD card
- Built- Tuner Module,can support DVB-T2/T/C,ATSC1.0/3.0,ISDB-T or DTMB
- Support 3G/4G networks(IV)Two USB Type-A, Micro SD Card slot, support program playback
- Built-in WiFi /BT , 1000M LAN interface(VI)one HDMI-out, one HDMI-in, support 4K video play.

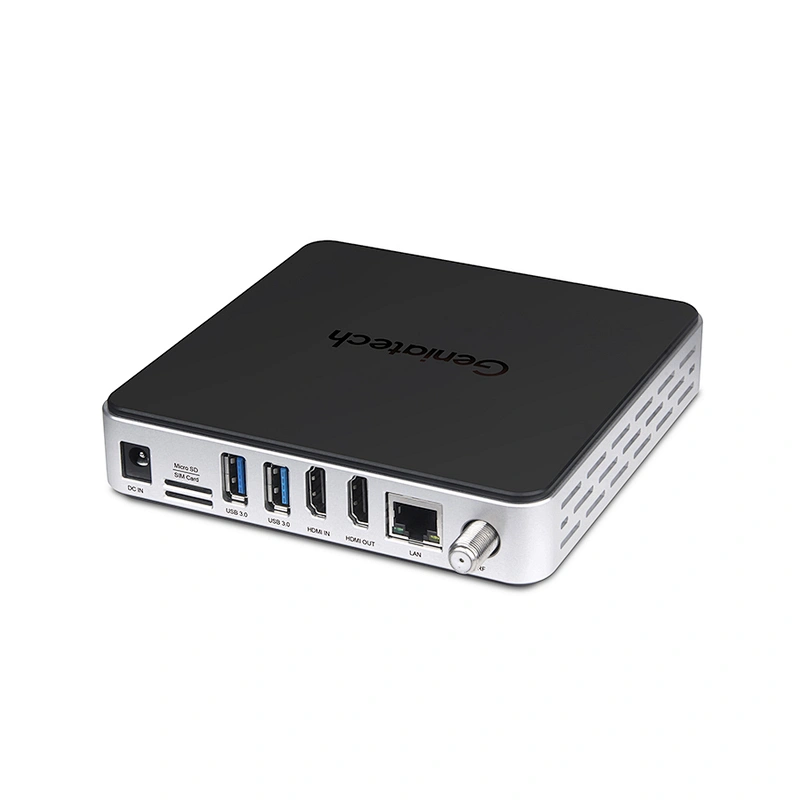

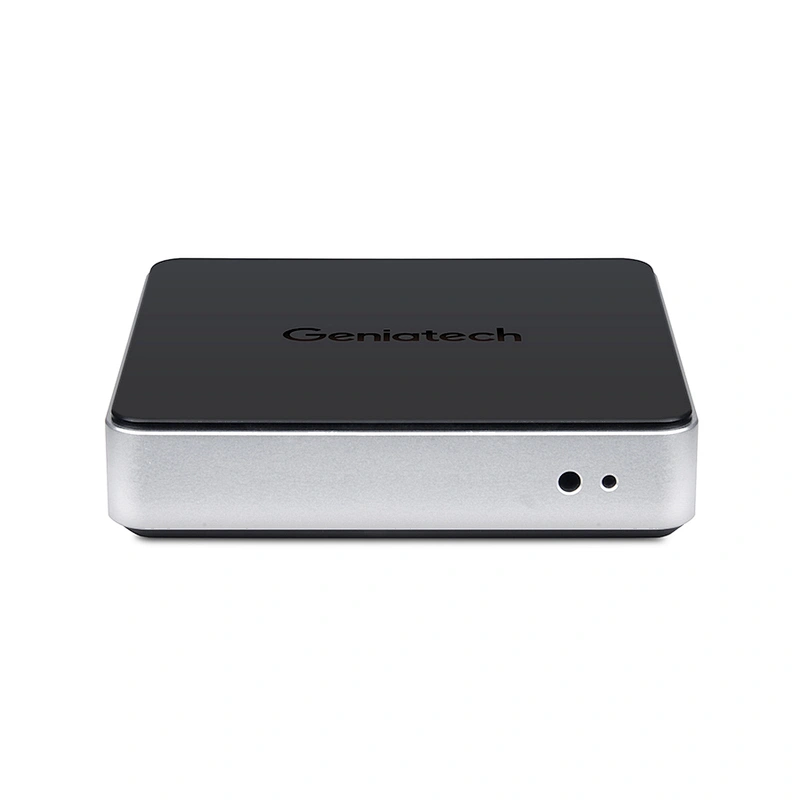

2. PRODUCT OVERVIEW
No. | Name | Description |
1 | IR receiver | IR receiver |
2 | LED indicator | Dual-color |
3 | DC IN | 12V |
4 | Micro SD slot | SD card *1(max 64GB) |
5 | USB | USB 3.0 TypeA OTG |
6 | USB | USB 3.0 TypeA Host |
7 | HDMI in | HDMI in*1, support HDMI 1.4A |
8 | HDMI out | HDMI out*1, support HDMI 2.0A |
9 | LAN | Ethernet 10/100/1000M |
10 | RF Jack | Mini RF Jack*1 for tunner module |
11 | RF Jack | RF Jack*1 for 3/4G module |
3.FEATURES
CHIPSET | NXP i.MX 8M Quad Core CPU |
MARKET AREA | Global |
OSD LANGUAGE | English/Chinese (multi language OSD) |
Processor | OS | Android 9.0/Linus |
CPU | Quad Core Cortex A53 @1.5GHz and Cortex-M4 core |
GPU | GC7000，support Open GL/ES 3.1, Open GL 3.0, Open CL 1.2 |
LPDDR4 | 3GB |
EMMC FLASH | 16GB（8G/32G Optional） |
NETWORK | Ethernet | RJ45, 10/100/1000M |
WiFi | WIFI/802.11.AC，2X2 MIMO |
Bluetooth | BT4.1 |
3G/4G | Support (Optional） |
DTV | Tuner standard: DVB-T2/T/C ATSC1.0/3.0 ISDB-T DTMB |
Standby Power | <0.5W |
Interface | SD | Micro SD card *1(max. 64GB) |
HDMI OUT | HDMI OUT*1 |
HDMI IN | HDMI IN*1 |
USB Host | USB Host 3.0*1 |
USB OTG | USB OTG 3.0*1 |
DC IN | DC IN*1 |
Master Carton | 118*105*22mm，1pcs/carton |
Adapter | DC12V / 2A |
Accessory | Adapter*1 |
Customizable GUI | We provided GUI customization and we have a vast collection of Launcher created by our R&D team for you to choose from. |
| | | | |
4.Support Formats
Media | | |
Remark | Codec | Remark |
Video | MPEG-2 | up to MP : 1080p@60fps (1920x1080) |
MPEG-4 | up to ASP level 5 : 1080p@60fps (1920x1080) GMC(global motion compensation)not supported |
H.263 | 1080p@60fps(1920x1080) |
H.264 | up to HP level 5.1 : 4kp@30fps (3840x2160) |
H.265 | 4K@60fps (4096x2304) |
VC-1 | up to AP level 3 : 1080p@30fps (1920x1080) |
VP9 | 4k@60fps (4096x2304) |
5.Precautions for use
1.Relative humidity: ≤80% .
2.CPU Operation temperature: -40~ 105℃
3.Do not squeeze ,distort or disassemble the PC.
4.Keep the Board away from static electricity .
5.Keep the Board away from water and other liquid.
6.Don’t use long connect wires which may affect performance and image quality.
