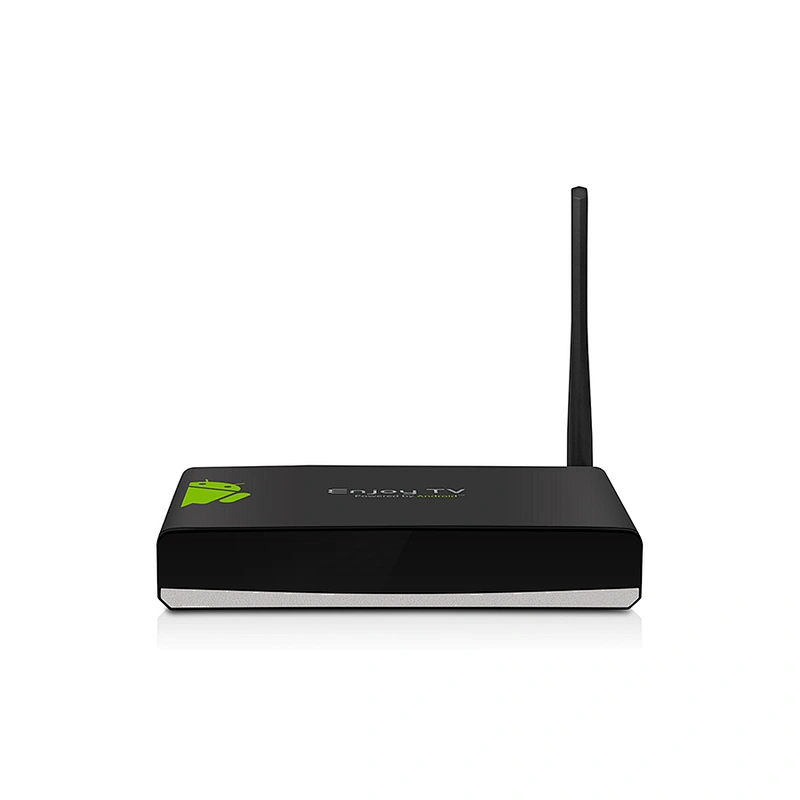

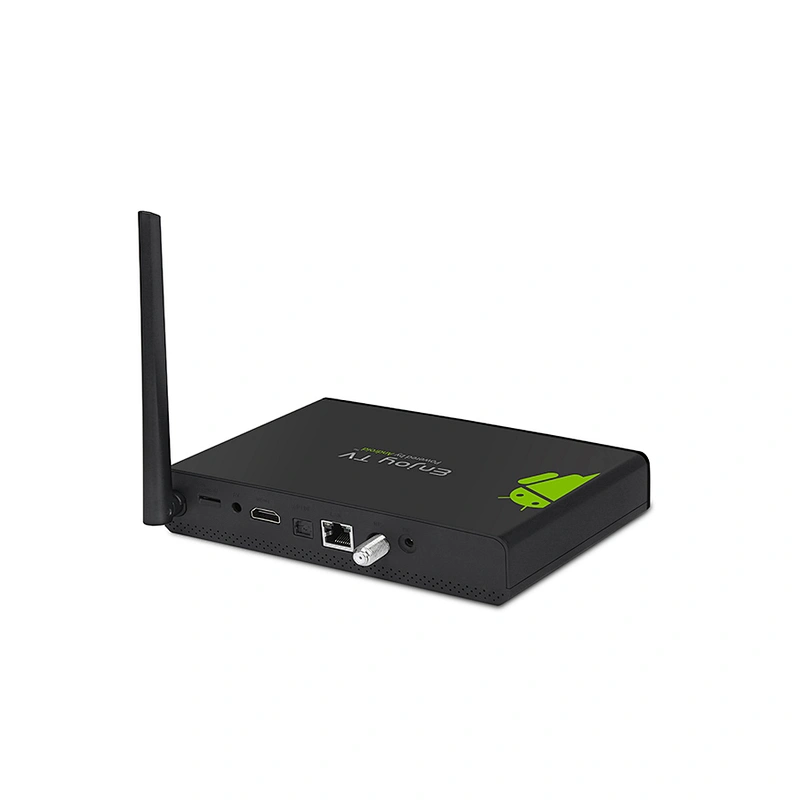

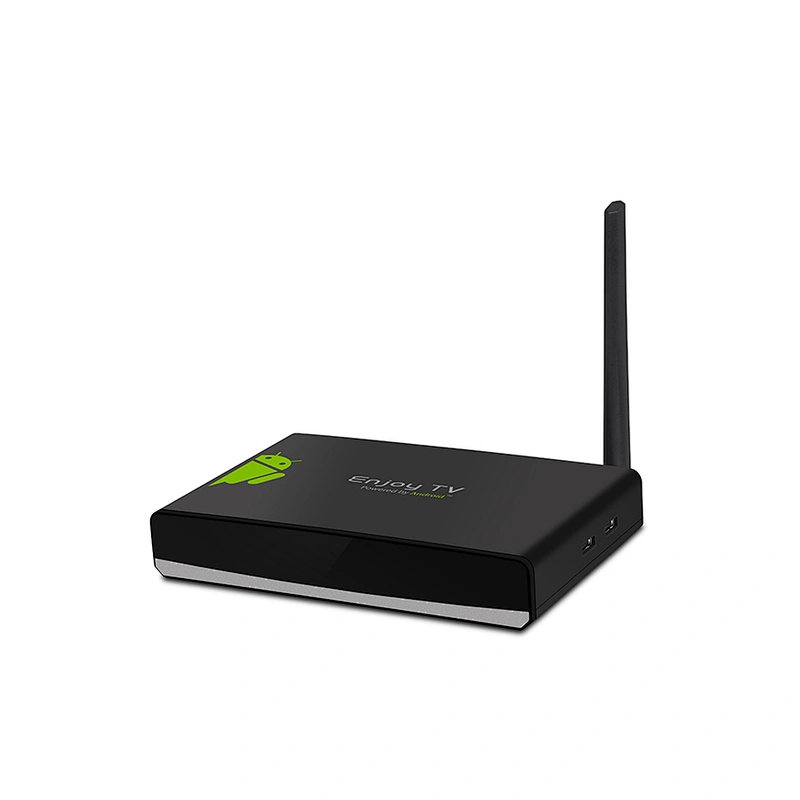

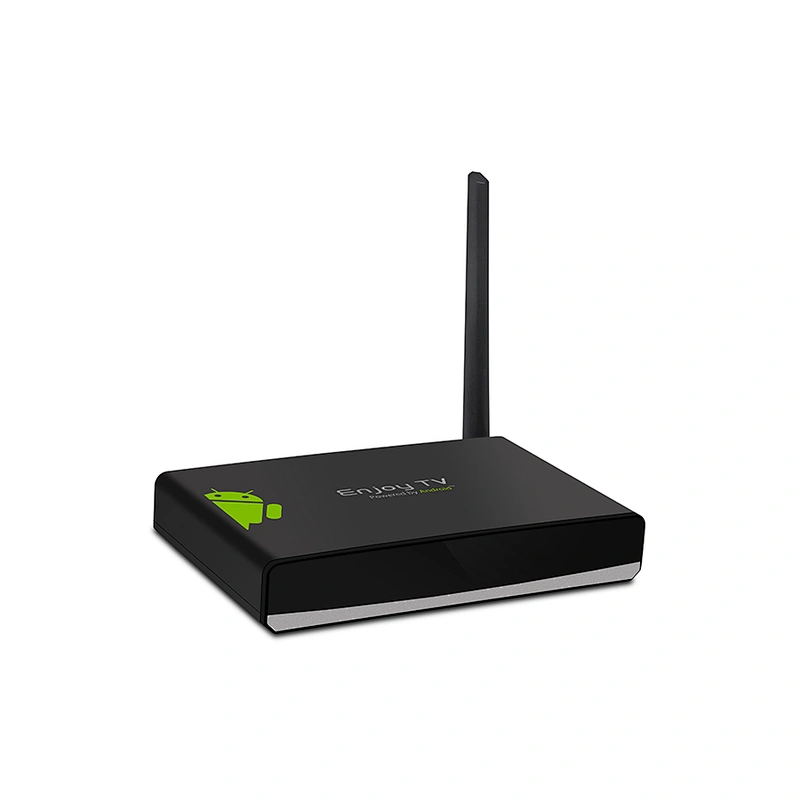

ATV1962 S912 Octa Core with Dual Tuner

Model NO.: ATV1962
Delivery: EXW,FCA,FOB…
Country of Origin: China

Quantity:

Product Description

Amlogic S912-B Octa Core CPU

Octa core ARM Cortex-A53 CPU up to 2GHz (DVFS),Mali-T820MP3 GPU up to 750MHz（DVFS）

DLNA

Support DLNA streaming. You can easily stream photos, vidoes, music from you Android Phone/Pad to the TV.

Rich Applications

There are over 1 million applications in the market, and supports most famous,applications like: Youtube,Facebook, and Twitter, etc...

Mali-T820MP3 GPU

Mali-T820MP3 GPU is designed to maximize reuse of the available resources during graphics operation. Therefore it is able to deliver both performance and power efficiency

Customizable GUI

We provided GUI customization and we have a vast collection of Launcher created by our R&D team for you to choose from.

eMMC Storage

Adopting 2GB DDR3 memory,16GB EMMC

Product Specification

CPU	Octa Core ARM Cortex-A53 CPU up to @ 2.0GHz
GPU	Mali-T820MP3 GPU @ 750MHz
RAM	2G DDR3
ROM	built in 16G, EMMC
OS	Android 6.0
Optional	DOLBY
USB	USB2.0 x 2
HDMI	V2.0a
DC Input	5.0V-3.0A
MicroSD Slot	Max: 32G
Video Output	HDMI/CVBS
Audio Output	HDMI/CVBS
RF Input	75 Ohm Digital TV Antenna Input; Receive Frequency: TV54~862MHz (ATSC) / TV48.25 ~ 863.28MHz (DVB-T2)
LAN	Integrated IEEE 802.3 10/100/1000M Gigabit Ethernet MAC controller with RGMII interface
WiFi	IEEE 802.11 b/g/n AC 2.4G 5.8G (Optional)
BT	Optional
SATA 3.0	Optional
Size	176x114x33mm
Net Weight	234g
Power Adapter	AC100 ～ 240V 50/60Hz
