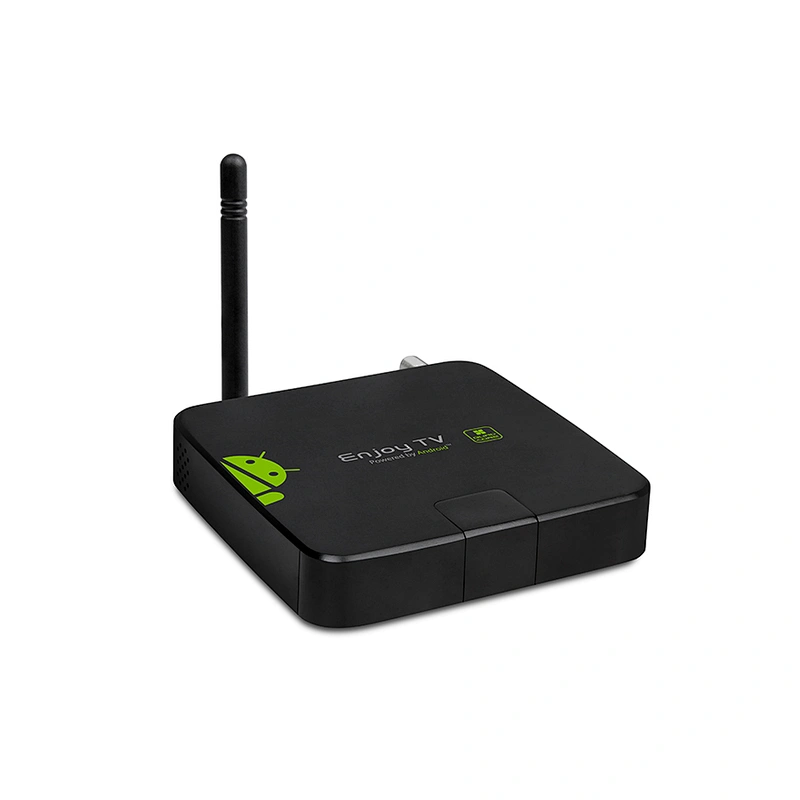

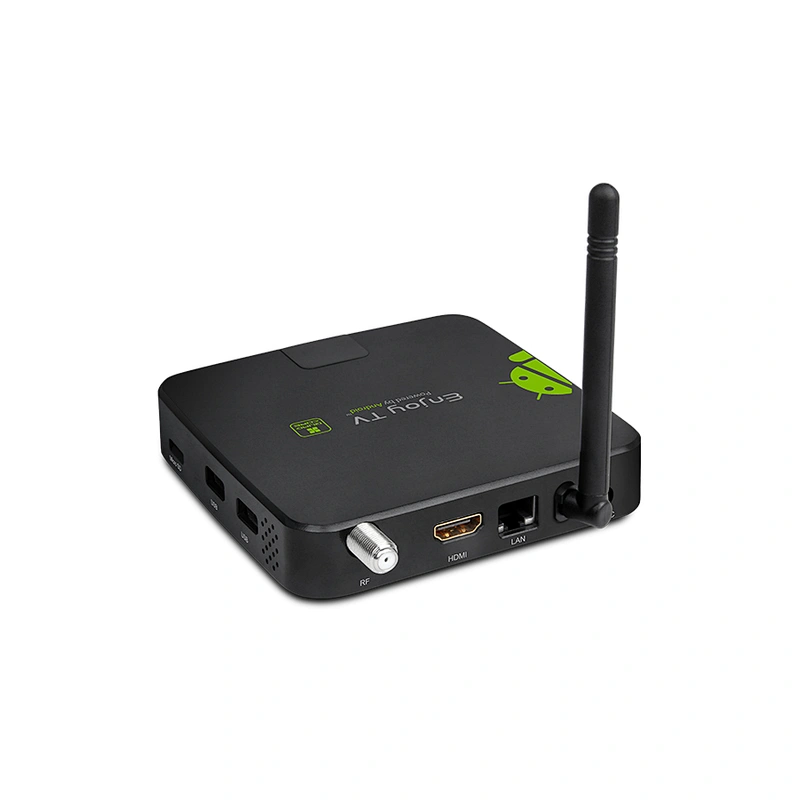

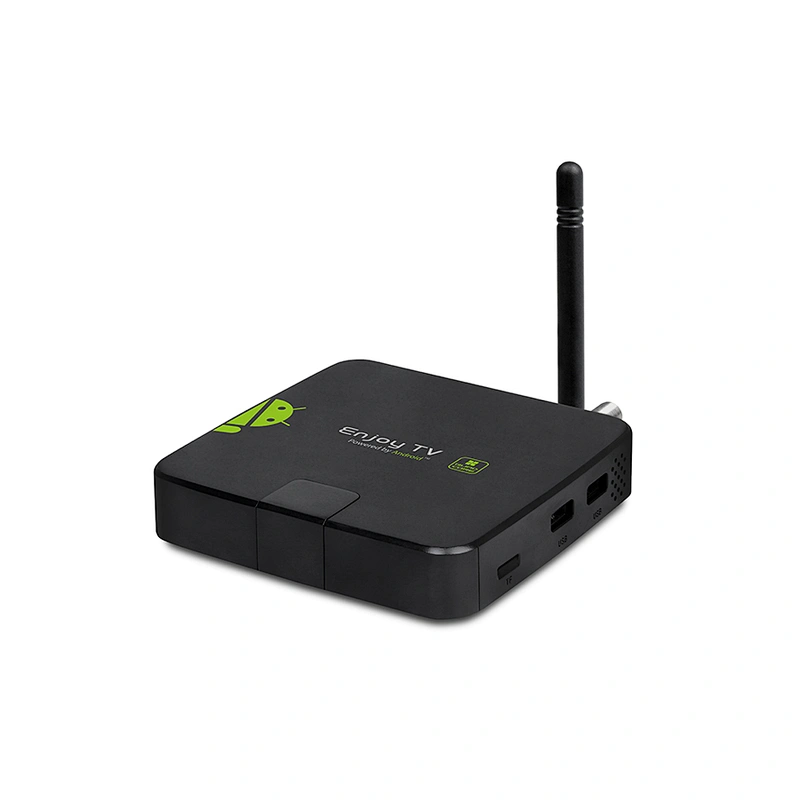

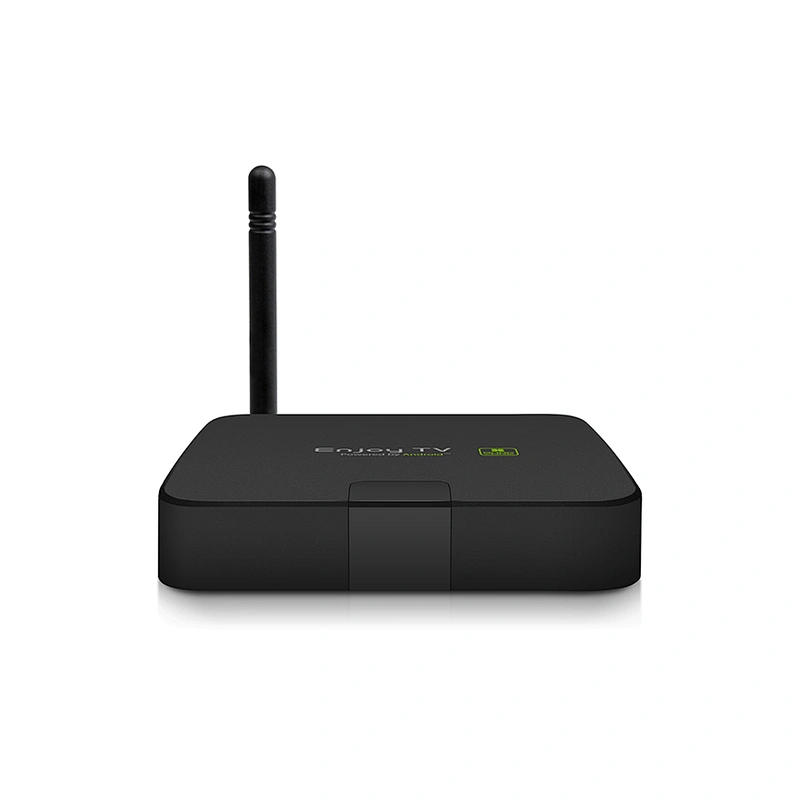

ATV698 is a new generation of Android 9.0 TV box launched by Geniatech.It can play 4K Ultra HD video with the latest HDR standard, providing more realistic colors and vibrant images.It also supports mobile screen projection and Bluetooth voice search, so you can easily stream media to TV and enjoy your favorite TV shows via voice control devices
Ultra high performance, ultra low power Amlogic A905X3-B ,2G DDR3+16GEMMC CPU:Quad-core ARM Cortex-A55 GPU:ARM Mail-G31 MP2 OpenGL ES3.2 Vulkan 1.1and OpenCL2.0 | 4K& mobile screen projection Support 4K HD video, you can have a cinema level feeling at home; At the same time also support mobile screen projection, to meet your multi-scene use need |
Support a variety of digital TV reception DVBT2 DVBT DVBC ATSC1.0/3.0 ISDB-T DTMB | Gigabit network & dual WiFi (2.4g / 5.8g) & dual antennas Gigabit LAN provides extremely fast and stable local network video streaming and ultra-high definition streaming, and dual WiFi and dual antennas provide less interference and wider signal coverage. |
Remote Device Management System (MDM) Support remote control of online devices, support remote management of content distribution, application deployment and service push。 | Personalized customization Hardware configuration is optional, SDK secondary development, MDM customization (remote device management), APP customization |
Product specification
| CPU | Quad-core ARM Cortex-A55 CPU |
| GPU | ARM G31 MP2 GPU |
| RAM | 2GB （1GB optional） |
| ROM | 16GB（8-64G optional） |
| OS | Android 9.0 |
| Dolby | Optional |
| USB Interface | USB Host 2.0*1 USB OTG 3.0*1 |
| HDMI | V2.0 |
| DC Input | 5.0V-2A |
| Micro SD card | Max: 256GB |
| Video output | 1*HDMI |
| Audio output | 1*HDMI，1*BT |
| Remote control | Supports infrared/Bluetooth voice /USB |
| Ethernet | RJ45 100/1000M |
| Built-inWiFi | IEEE 802.11 ac/n/a/g/b 2.4G/ 5.8G |
| BT | BT4.0(4.1 /5.0 optional) |
| RF | ATSC1.0/ATSC3.0/DVB-T2 optional |
| Size | 115x114 x 27mm(Not including antenna) |
| Net weight | 159g |
