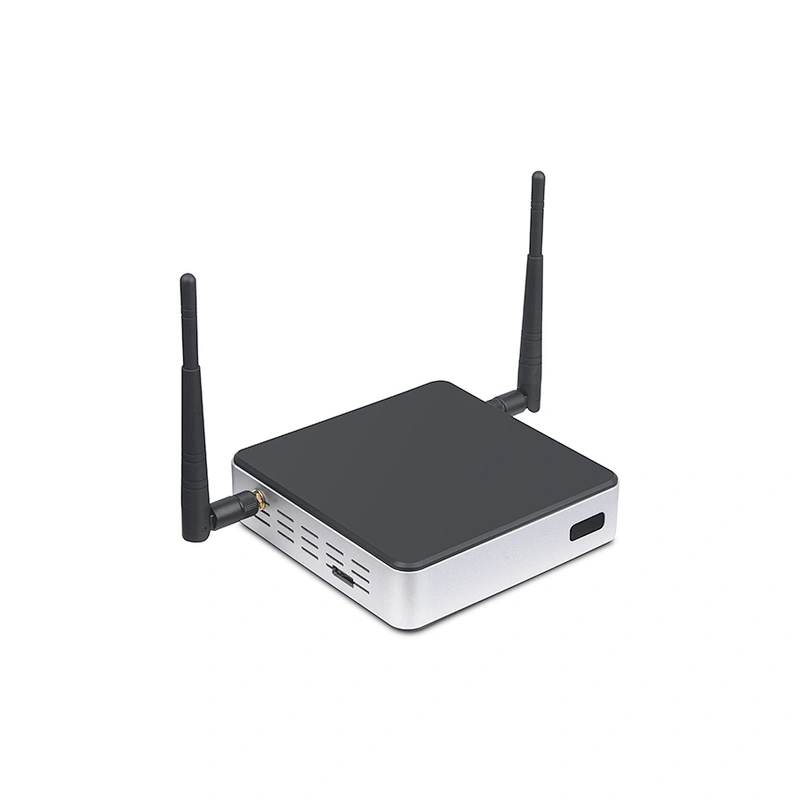

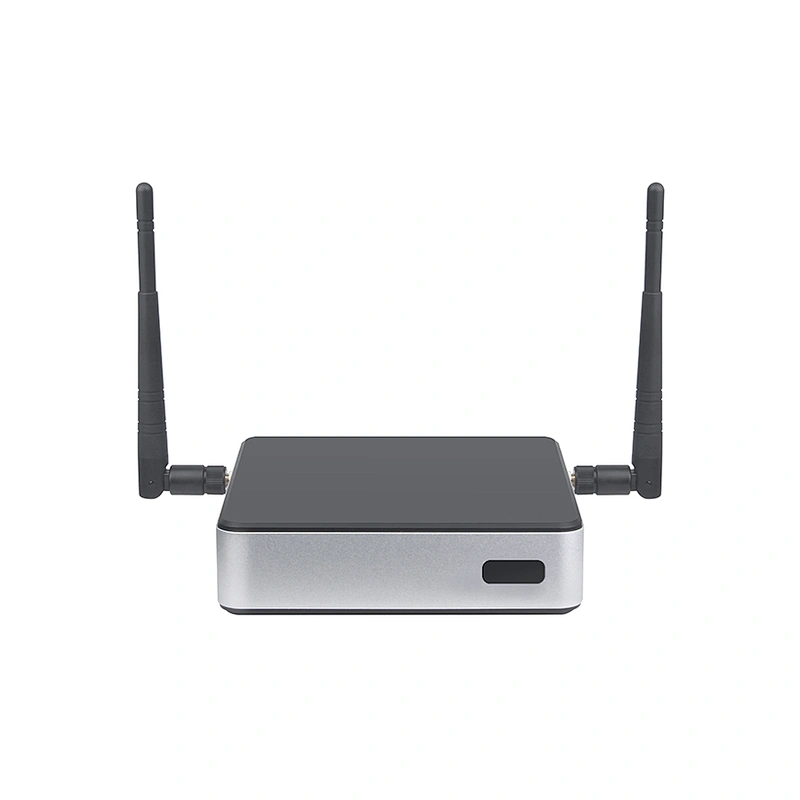

APC820 is a high-performance player that supports multiple display interfaces,It is fully equipped with Rockchip RK3399 ultra-high-performance CPU,The highest processor frequency can reach 1.8G. The inherent super decoding pedigree can decode up to 4 ways 1080P videos at the same time, With HDMI 4KP30 input interface, and a wealth of peripheral interfaces (supports multiple standard Tuner modules), supports multiple wireless and wired communication methods.
Multiple video interfaces: HDMI OUT：1 * HDMI HDMI IN：1 * HDMI LVDS：1*LVDS（Supports 10.1"~65"multi-brand size display screen） EDP：1*EDP（Supports 10.1"~65"multi-brand size display screen） | Diversified functions： Built-in RJ45 interface（10/100/1000M） Standard RS232 protocol, multiple applications； built-in WatchDog&RTC：7*24H Stable and unguarded. LTE (Mini PCIE interface/global standard) satisfies outdoor network coverage |
Tuner: Support a variety of digital TV reception:DVB-T2/T/C,ATSC1.0/3.0, ISDB-T/DTMB | Performance good heat dissipation effect: The motherboard uses solid materials, meets CE/FCC and other certification requirements, and the maximum operating temperature can reach -20~85℃ |
GTIOT: Support multiple optional wireless protocols： Z-WAVE / ZIGBEE / LoRa / LTE / GPS / WiFi / BT5.0 | personalized customization： Provide SDK secondary development; MDM customization (remote device management); APP customization. |
Product Specification
| CPU | Dual-core Cortex-A72 up to 1.8GHz + Quad-core Cortex-A53 up to 1.4GHz |
| GPU | Mali-T860 GPU, support OpenGL ES1.1/2.0/3.0/3.1, OpenCL and DirectX 11.1 |
| RAM | 2GB （4GB optional） |
| ROM | 16GB eMMC (8~128GB optional) |
| LAN | 1*RJ45 10/100/1000Mbps (LED) |
| WiFi | 802.11 a/b/g/n/ac (2.4G/5G) |
| BT | BT4.2/5.0 (optional) |
| GTIOT | Support multiple optional wireless protocols: Z-WAVE / ZIGBEE / LoRa / LTE / GPS / WiFi / BT5.0 |
| Tuner | Support a variety of digital TV reception : DVB-T2/T/C,ATSC1.0/3.0, ISDB-T/DTMB |
| WatchDog & RTC | Support |
| I/O | 1 x GTIOT（Built-in）
1 x HDMI OUT
1 x HDMI IN
1 x LVDS(Built-in Back light)
1 x EDP（Built-in）
1 x RF
1 x RJ45 10/100/1000M(LED)
1 x Type C（shared OTG）
1 x USB3.0 + 3x USB2.0 (Two built-in)
1 x Micro SD
1 x LTE + 1 x Micro SIM
1 x DC IN（Φ5.5/2.1mm）
1 x IR（Built-in）
1 x RS232（Built-in）
1 x SPK（MAX 2 x 8Ω10W）
1 x Power_Key（Optional automatic power-on）
2 x WIFI/BT Antenna interface |
| OS | Android 10.0 / Linux |
| POWER | DC 12V/2A |
| Size(mm) | 136*136*35 |
| Certifications | CE / FCC |
