1 Specifications
Processor
Snapdragon 410 quad core ARM® Cortex® A53 (64bit, 1.2GHz)
Qualcomm® Adreno™ 306 GPU
Memory/Storage
1GB or 2GB LPDDR3 533MHz
8GB or 16 GB eMMC 5.0
SD 3.0 (UHS-I)
LoRa Module Specification
General Radio
• Semtech Radios SX1301 and SX1257 (x2)
• LoRaWAN Compliant
• Support Public and Private LoRa network deployments
RF Characteristics
• Frequency Range 863 to 870 MHz or 902 to 928MHz ISM Bands
• RX sensitivity Up to -140 dBm
• Max RF Output Power Up to +26 dBm
Power Consumption
• TX (max)–440 mA
• RX (all channels)–340 mA Software
• LoRaWAN 1.0 and 1.1 Compliant
Regulatory
• CE / FCC / IC Certified
Connectivity
1x 10/100M Ethernet
2x USB 2.0 type A (host mode only)
2x dry contact output controllable by application
RS485 or RS232 Modbus protocol
4x GPIOs contact input controllable by Peripheral
WLAN 802.11 b/g/n 2.4GHz
Bluetooth 4.0
GPS with External antenna
External BT and WLAN antenna
HDMI Output
Expansion (Internal)
1x 40 pin Low Speed (LS) expansion connector
• UART, SPI, I2S, I2C x2, GPIO x12, DC power 1x 60 pin High Speed (HS) expansion connector
• 4L-MIPI DSI, USB, I2C x2, 2L+4LMIPI CSI
• WTD And RTC
User Interface
8 LED indicators
• 4 - user controllable
• 4 - for Power、BT、WLAN and Ethernet activity
OS-support
Linux based on Debian
Power, Mechanical and Environmental
Power: +6.5V to +18V
Dimensions: 160*144.5*38mm
Operating Temp: -10°C to +85°C
RoHS and Reach compliant
Overview

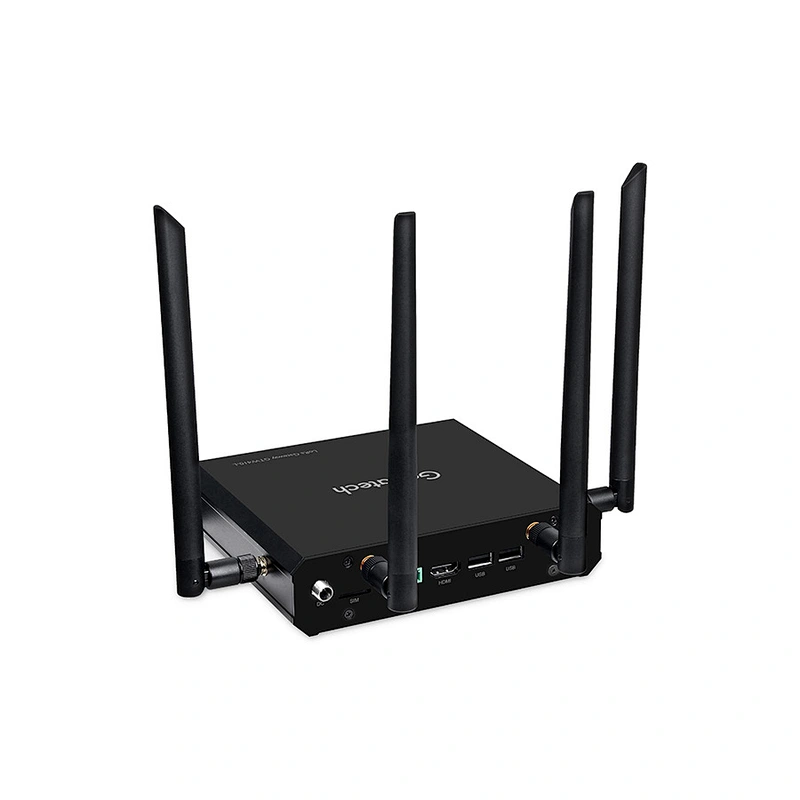

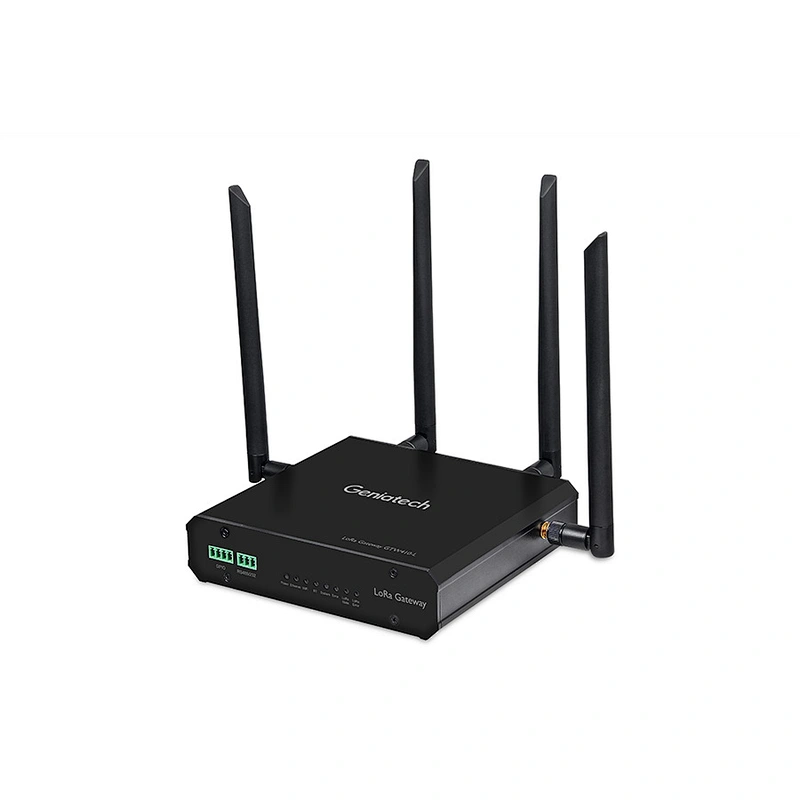

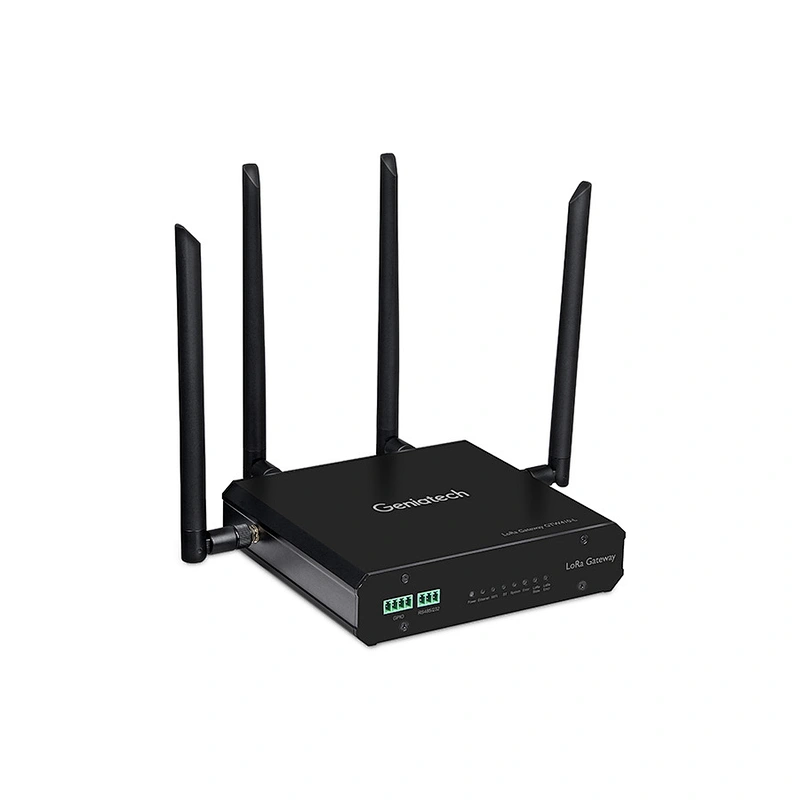

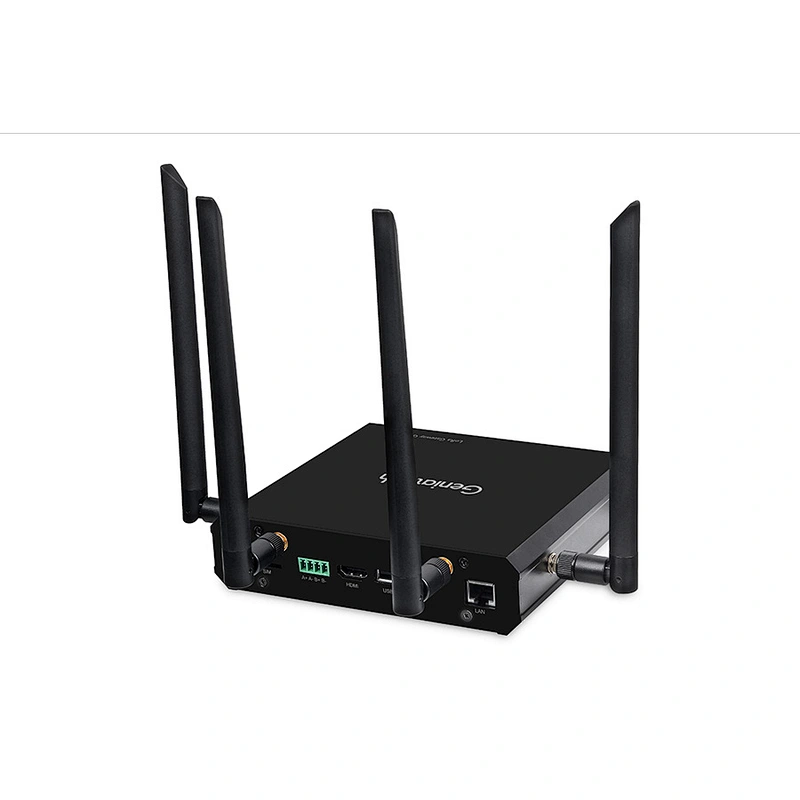

Geniatech’s GTW410-L features Qualcomm Snapdragon 410 processor, a Quadcore ARM® Cortex™ A53 at up to 1.2GHz clock speed per core, capable of 32-bit and 64-bit operation. It supports Linux for LoRa Gateway and offers advanced processing power, WLAN, Bluetooth, GPS, and popular RF modules. Through this Industrial LoRa Gateway,anything will be easy to be indexed, searched and traded as any other online product. And the LoRa Gateway is widely used in Smart metering,Smart lighting control,Smart building system, Security and remote sensing ,Agricultural monitoring ,M2M applications,etc.
