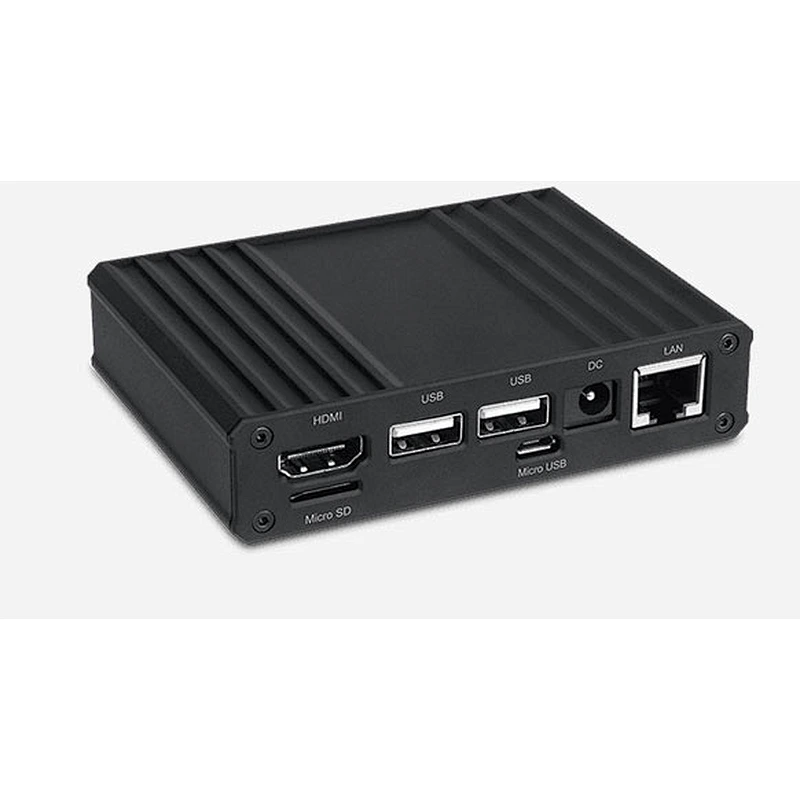

Specifications
Processor
Snapdragon 410 quad core ARM® Cortex® A53 (64bit, 1.2GHz)
Qualcomm® Adreno™ 306 GPU
Memory/Storage
1GB or 2GB LPDDR3 533MHz
8GB or 16 GB eMMC 5.0
SD 3.0 (UHS-I)
Display
HDMI 1.3 - HDMI full-size type A connector (1080p HD @ 30 fps)
Up to 720p 60fps or 1080p 30fps for optional display/touch
Camera(Internal)
2x MIPI-CSI: 1x 4-lane, 1x 2-lane, up to 13MP
Audio(Internal)
PCM/AAC+/MP3/WMA, ECNS, Audio+ post-processing (optional)
All signals are routed to the analog expansion connector
LoRaWAN
General Radio
• Semtech Radios SX1301 and SX1257 (x2)
RF Characteristics
• Frequency Range 863 to 870 MHz or 902 to 928MHz
• RX sensitivity Up to -140 dBm
• Max RF Output Power Up to +27 dBm
Power Consumption
• TX (max)–440 mA
• RX (all channels)–340 mA
Software
• Based on Semtech Rev 1.0 -SX1301 AP1 Regulatory
• CE / FCC / IC Certified
ZigBee 3.0
• 2.4GHZ IEEE 802.15.4
• 250 kbps O-QPSK DSSS
• Sensitivity:-102.7 dBm @250 kbps O-QPSK DSSS
• Programmable Output Power:+19 dBm
• Antenna Diversity
BT 5.0
• Compatible with Bluetooth 5 Specification
• Receive Sensitivity: -103.3 dBm @125 kbps GFSK(select devices)
• Programmable Output Power:+17 dBm
• Active Mode RX: 9.5 mA
• Active Mode TX: 10.0 mA @ 0 dBm
Z-Wave
• Receiver sensitivity with SAW filter down to -103dBm @ 9.6kbps
• Transmit power with SAW filter up to +4dBm
• Z-Wave 9.6/40/100kbps data rates
• Supports all Z-Wave sub-1 GHz frequency bands (865.2 MHz to 926.3 MHz)
• TX mode current typ. 36mA@0dBm
• RX mode current typ. 32mA
• Supply voltage range from 2.3V to 3.6V for optional battery operation
RS485 and RS232
Connectivity
MiniPCI-E LTE/3G module (Optional)
WLAN 802.11 b/g/n 2.4GHz
Bluetooth 4.1
1x 10/100M Ethernet
1x USB 2.0 micro B (device mode only)
2x USB 2.0 type A (host mode only)
GPS On-board GPS antenna
External BT and WLAN antenna
Expansion connector(Internal)
1x 40 pin Low Speed (LS) expansion connector
• UART, SPI, I2S, I2C x2, GPIO x12, DC power 1x 60 pin High Speed (HS) expansion connector
• 4L-MIPI DSI, USB, I2C x2, 2L+4LMIPI CSI Footprint for one optional 16-pin Analog expansion connector
•Headset, Speaker, FM antenna
External Storage
1x Micro SD socket
User Interface
8 LED indicators
• 4 - user controllable
• 4 - for Power、BT、WLAN and Ethernet activity
OS-support
Android 5.1
Linux based on Debian
Windows 10 IoT core
Power, Mechanical and Environmental
Power: +6.5V to +18V
Powered by Dimensions: 160*144.5*38mm
Operating Temp: -10°C to +85°C
RoHS and Reach compliant
