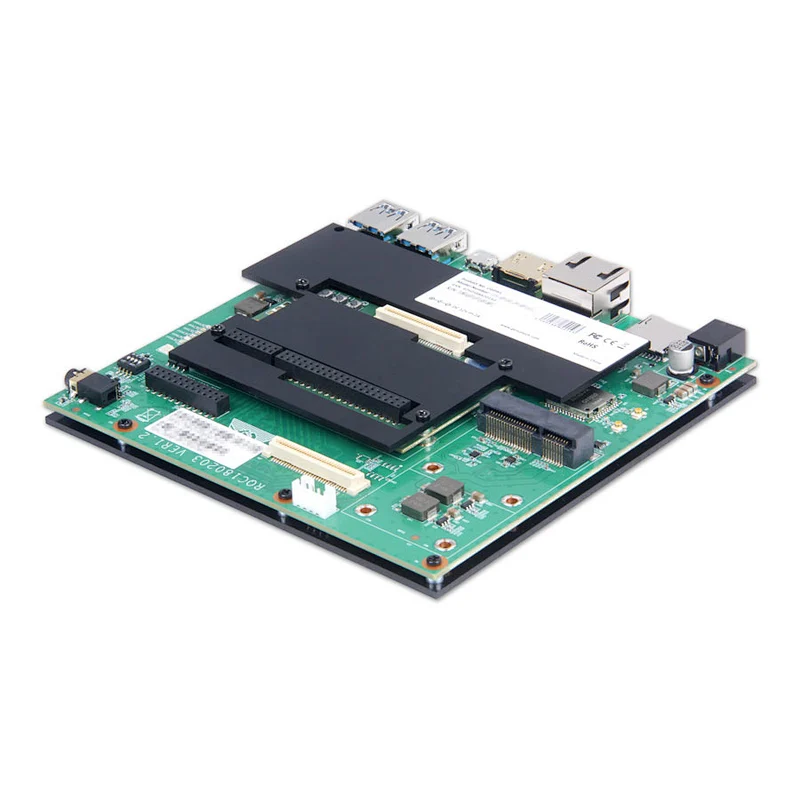

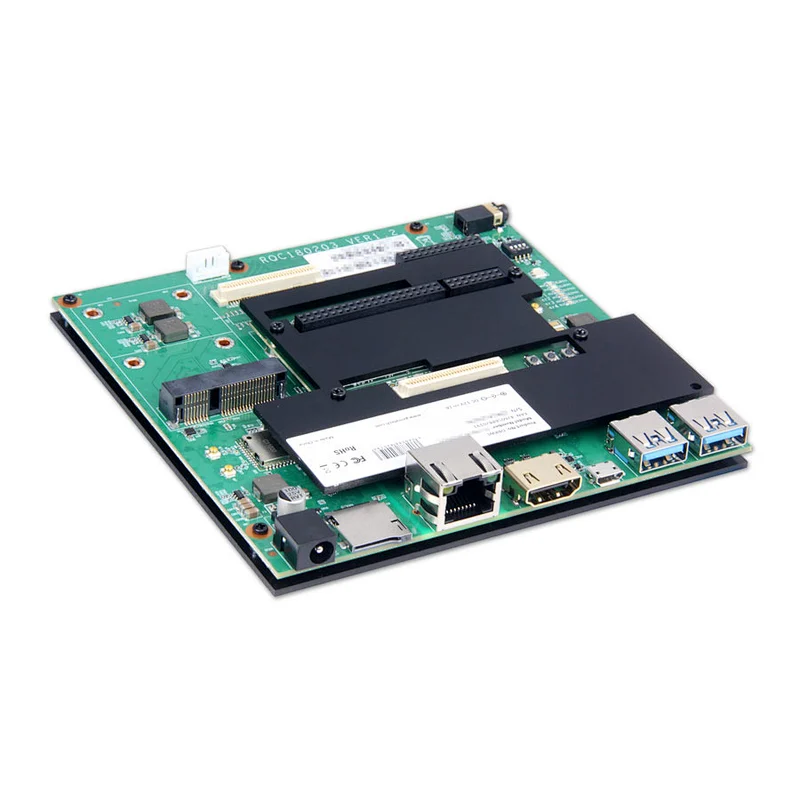

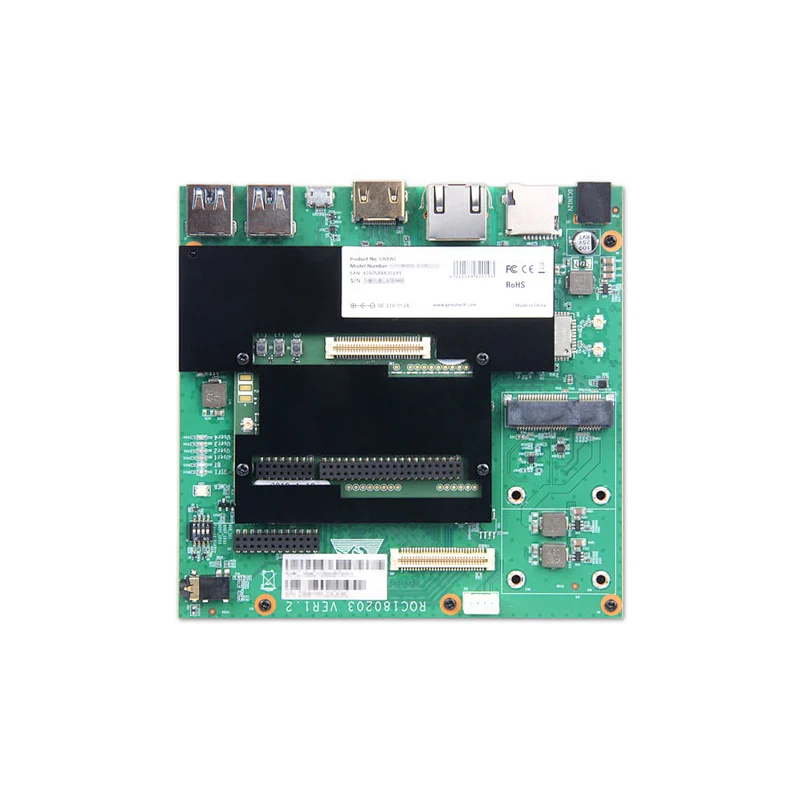

Snapdragon Board – DB8

Model NO.: Snapdragon Board – DB8

▪ Compliant with the 96Boards Mezzanine Board
▪ Custom 64-bit Kryo quad-core CPU up to 2.35GHz
▪ Qualcomm® Adreno™ 530 GPU
▪ MIPI CSI, DSI, HDMI out
▪ 4GB RAM, 32-64GB Flash
▪ WLAN 802.11 n/ac Dual Band, Gigabit Ethernet and Bluetooth 4.2
▪ Support Linux and Android

Quantity:

Product Description

Processor

Quad-core ARM® Cortex® A53 processor with a maximum frequency of 1.2GHz per core supporting 32 and 64bit computing

Graphics

AdrenoTM 306 400MHz, PC-level graphics processing power

Excellent graphics processing power

HD video 8 x 1080p@30fps Ultra HD video 4K@60fps playback

Camera

Support 13MP camera, support wavelet denoising, JPEG decoding and other hardware-level post-processing techniques.

Wide range of application scenarios

Applications in the communications, smart home, smart healthcare, Internet of Things (IOT) applications

Compatibility

Compatible with Mezznine Board interface standard. Multiple Mezznine boards (optional)

Support system diversification

Android, Linux, Windows 10

Enterprise service

Provide comprehensive quality assurance, after-sales service and technical support

Product Specification

CPU	Snapdragon SD820E, Quad core
CPU Frequency	2.15GHz
Internal Memory	4GB LPDDR4
Internal Storage	64GB UFS2.0
OS	Android 7.1/Linux
Bluetooth	4.2
Built-in WiFi	802.11 a/b/g/n/ac
WiFi Frequency Range	2.400~2.497GHz, 4.900~5.845GHz
Ethernet port	RJ45 10/100/1000Mbps
GPS	Yes
USB Interface	USB 3.0 x 2; Micro USB x 1
Micro SD Card Slot	1
Camera	Integrated Dual ISP with support for 3 image sensors up to 28MP
Expansion connector	1x Mezznine boards 40 pin Low-Speed connector • UART x2, SPI, I2S, I2C x2, GPIO x12, DC power 1x Mezznine boards 60 pin High-Speed connector • 4L-MIPI DSI, USB, I2C x2, 2L+4L-MIPI CSI 2x Analog expansion connector • headset, speaker via sound-wire interface, microphones, line-outs 1x 60 pin High-Speed connector • secondary 4L-MIPI DSI, SSC serial busses, TSIF – connection available only in hardware
Size (mm)	Carrier Board：124126 Main Board：7350
Power	DC :+6.5V to +18V

Send Message

Related Products

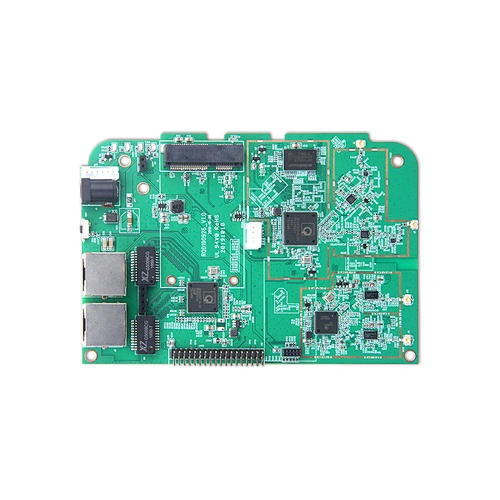

Snapdragon Board

Model NO. GT-Hub

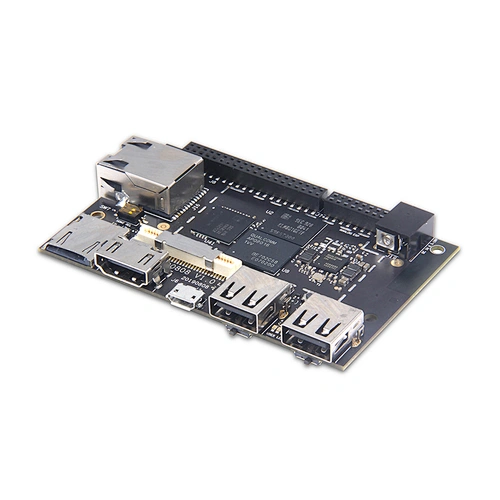

Developer Board 4 V3

Model NO. Developer Board 4 V3

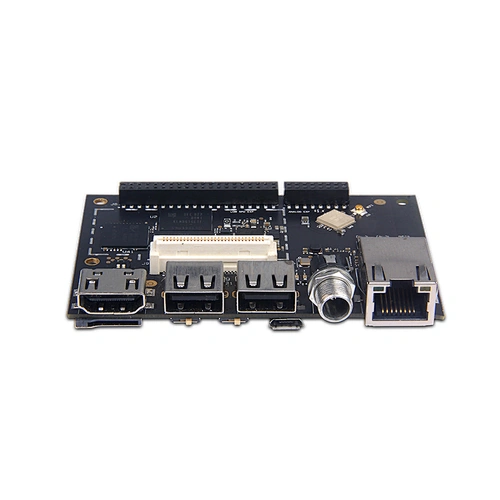

Developer Board 4 V2
