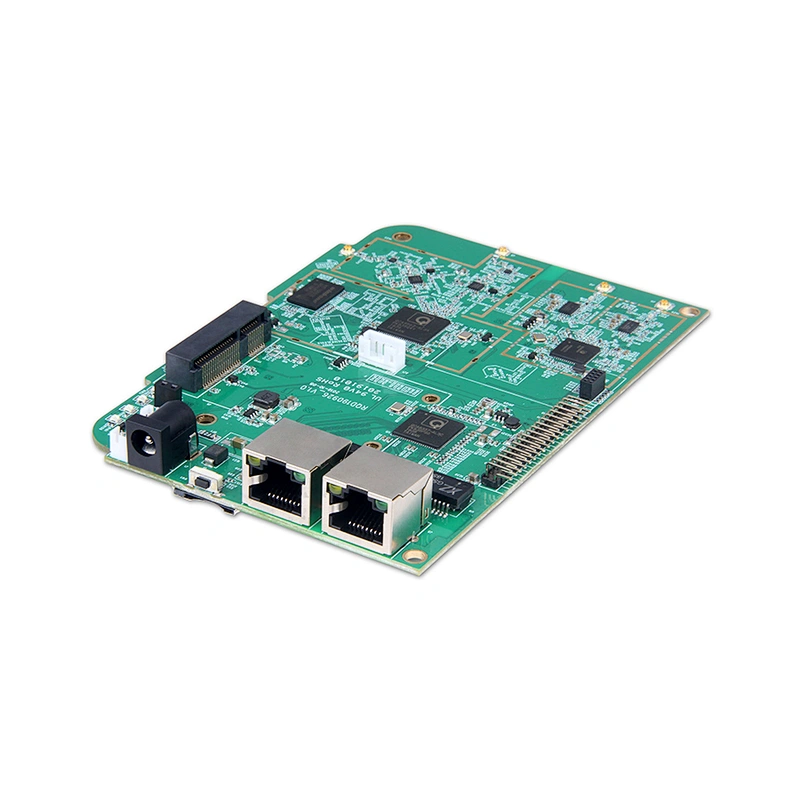

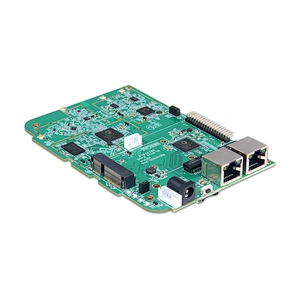

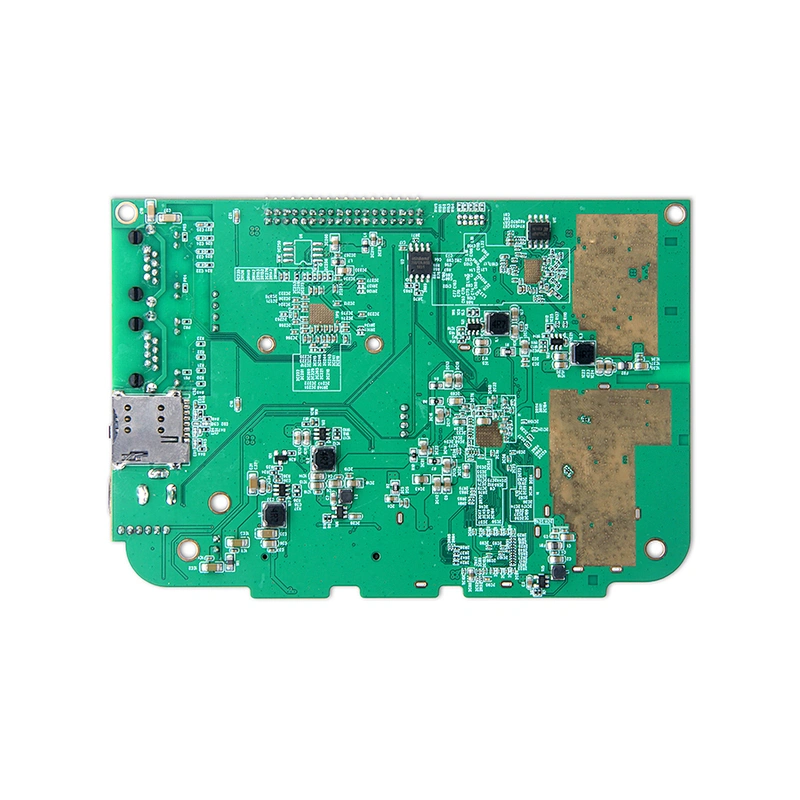

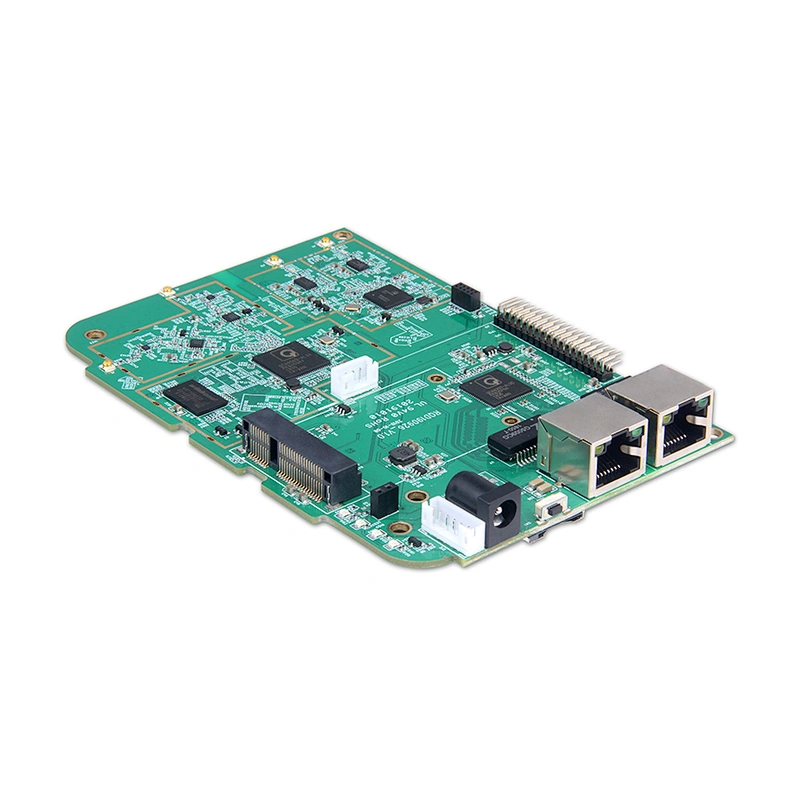

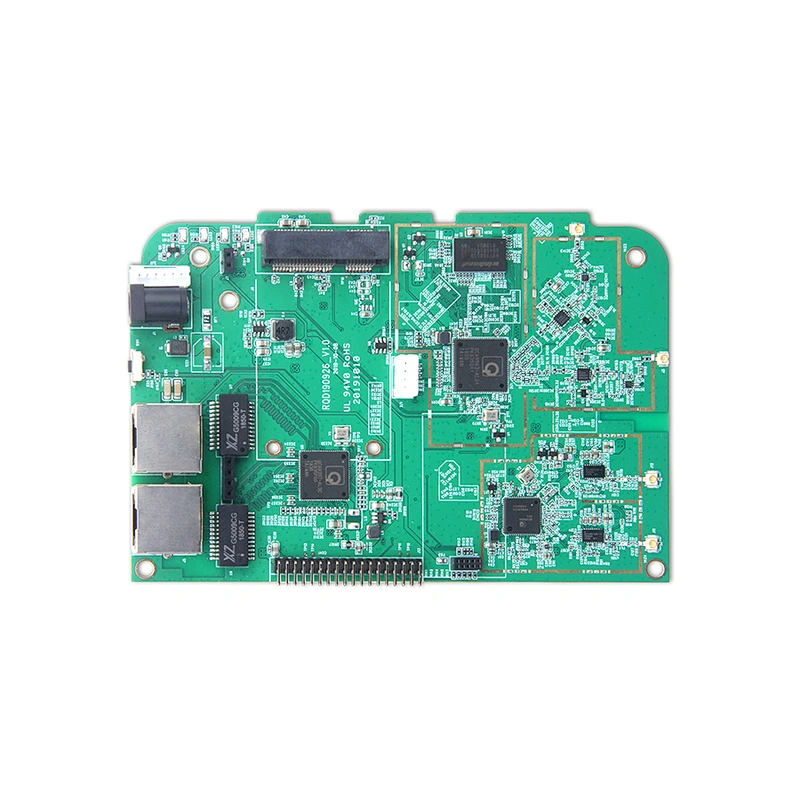

Snapdragon Board

Model NO.: GT-Hub

Qualcomm QCA9563+QCA8337+QCA9886 gigabit cable scheme is adopted,which not only supports 2.4ghz and 5GHz wireless networks,
but also integrates LTE functions. Moreover, GT-IoT(Internet of Things interface defined by Geniatech) interface is reserved to support extended
RF function modules,such as Zigbee, LoRa, Z-Wave, BLE, etc. And Geniatech can combine many set-top box products to form lead-by-function
set-top box products (accepting customization).

Quantity:

Product Description

Qualcomm QCA9563+QCA8337+QCA9886 gigabit cable scheme is adopted, which not only supports 2.4GHz and 5GHz wireless networks, but also integrates LTE functions. Moreover, GT-IoT interface is reserved to support extended RF function modules, such as Zigbee, LoRa, Z-Wave, BLE, etc. And Geniatech can combine many set-top box products to form lead-by-function set-top box products (accepting customization).

Processor

Qualcomm processor and its family inside, by default using QCA9563

Highlights

Low power consumption and ease of use of microcontroller High performance and scalability of application processors

With flexible

Can beused for embedded in any Android and Linux platform

Advanced security

Data encryption, high security level

Customizable

Support various functions customization

Wide operating temperature

Commercial grade operating temperature: -20℃ to +80℃ Industrial grade operating temperature: -40℃ to +80℃

Applications

Home router, commercial router, hotel network, entertainment and smart home

Enterprise service

Provide comprehensive quality assurance, after-sales service and technical support

Product Specification

CPU	QCA9563
5G WiFi	QCA9886
Switch	QCA8337
RAM	128MB
ROM	16MB
OS	Open WRT
Network
WiFi ---2.4G	802.11 a/b/g/n/ac 2.4GHz/5GHz
WiFi ---5G	802.11 a/b/g/n/ac 2.4GHz/5GHz
WiFi Frequency Range	2.400~2.497GHz, 4.900~5.845GHz
Ethernet port	RJ45*2 10/100/1000Mbps
Mini PCIe Interface	4G/LTE SIM Card Slot
GT-IoT Interface Functions
LoRa	Optional
BT 5.0/BLE	Optional
ZigBee	Optional
Z-Wave	Optional
Other RF Module	Customizable
Mechanical parameter
Size (mm)	130*90
Net Weight (g)	75
Power	DC: 12V/2A
PoE	Optional
