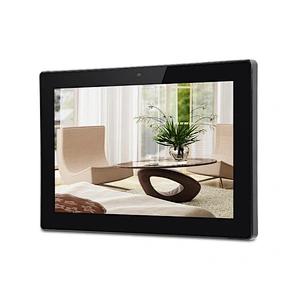

Qualcomm Rugged Tablet PC 10.1”

Model NO.: Qualcomm Rugged Tablet PC 10.1”

TPC1010Q features Qualcomm Snapdragon 410 CPU a Quad core ARM® Cortex™ A53
at up to 1.2GHz clock speed per core, capable of 32-bit and 64-bit operation.

Quantity:

Product Description

10.1'' color TFT LCD, 10points projected capacitive touch screen	USB, SD, TF external storage, support program playback
Quad Core A53 @1.2GHz, Android 6.0/Linux/Win10 IoT	Built-in GPS, WiFi, BT,LAN interface
2GB LPDDR3, 16GB eMMc flash, external expansion storage TF card (max. 32GB)	Designed for retail, interactive communication
Plastic frame, support wall mount and desktop	TPC1010Q can support 2GB DDR3 /16GB EMMC（1GB/8GB Optional）. Note:The optional functions are marked with “”.

FEATURES

SOC	Qualcomm Snapdragon 410
Processor	OS	Android 6.0/Linux/win10 IOT
	CPU	Quad Core A53 @1.2GHz
	GPU	Qualcomm® Adreno™ 306 GPU
	DDR	2GB
	EMMC FLASH	16GB
Panel	Panel type	TFT LCD
	Interface	MIPI
	Resolution	1280*800
	Voltage	3.3 V
Touch Screen		10 Point Capacitive
Network	Ethernet	RJ45, 10/100M
	WiFi	802.11 b/g/n
	Bluetooth	BT 4.0 LE and earlier
Display	Panel	10.1"LCD
	Resolution	1280*800
	Contrast	800:1
	Brightness	350 cd/m2
	Screen	16:9
Standby Power		<0.5W
Interface	SD	SD card *1(max. 32GB)
	HDMI	HDMI out*1（HDMI 1.3）
	USB Host	1USB 2.0 micro B; 2USB 2.0 type A
	DC IN	DC IN*1
Speakers	2*2W
Camera	500 W(option)
Monitor	259x177x26 mm
weight	450g
Adapter	DC12V / 1.5A
Customizable GUI	We provided GUI customization and we have a vast collection of Launcher created by our R&D team for you to choose from.
Rich Applications	There are over 1 million applications in the market, and supports most famous applications like: Youtube, Facebook, and Twitter, etc..
