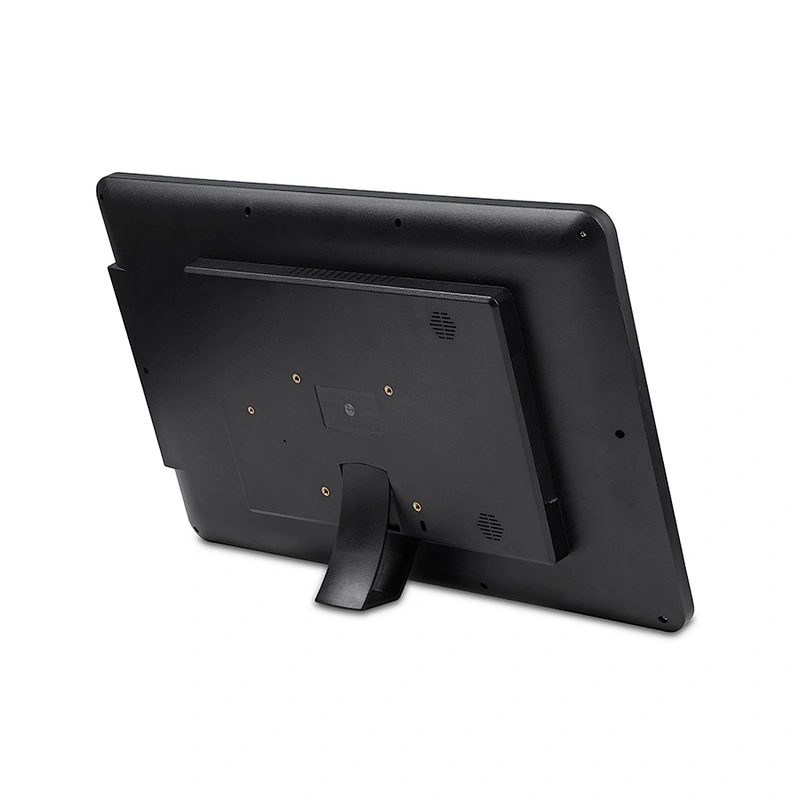

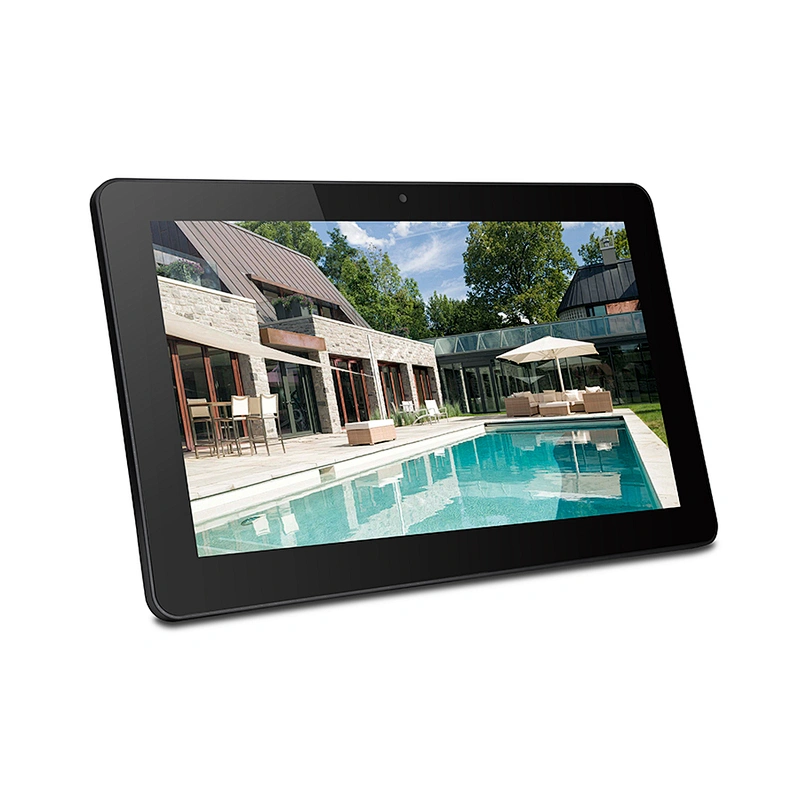

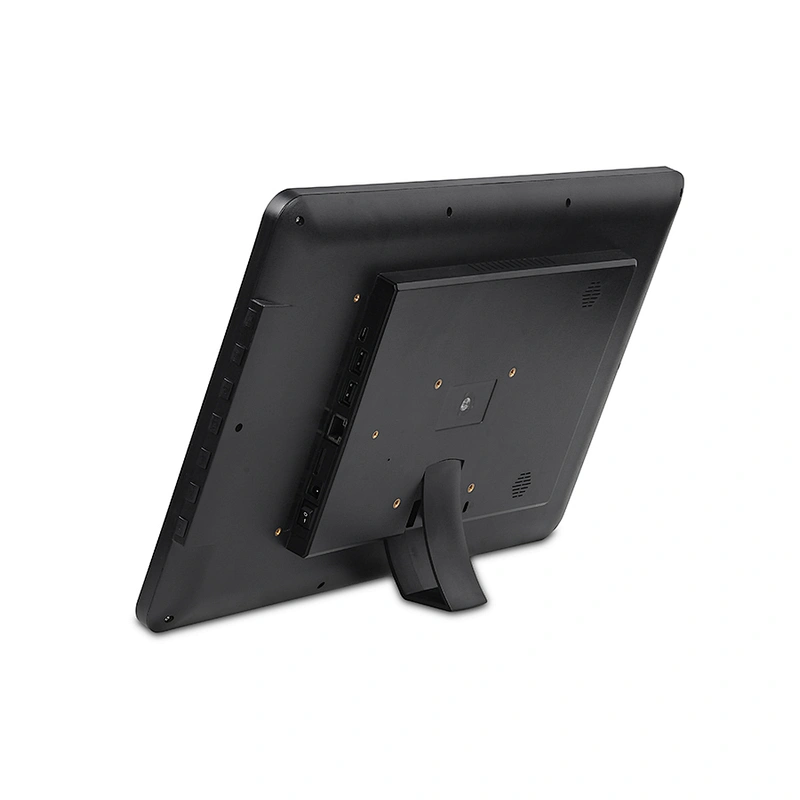

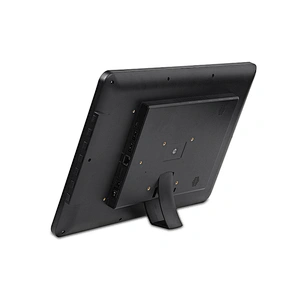

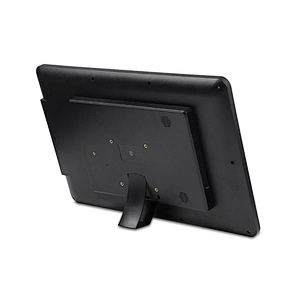

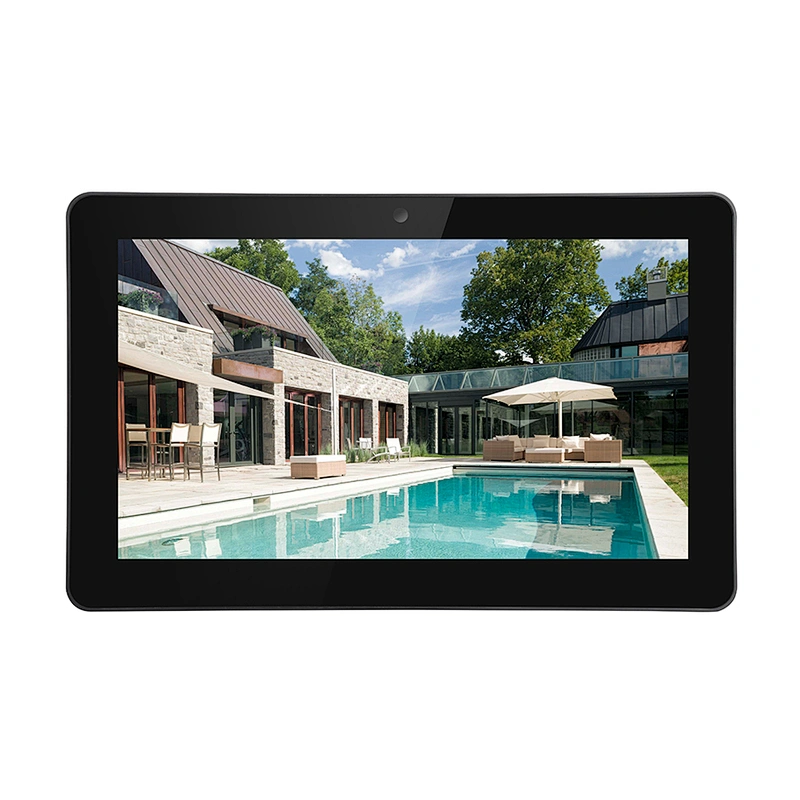

RK3288 TPC Series Touchscreen Display

Model NO.: RK3288 TPC Series Touchscreen Display

Panel SOC Memory/storage Resolution Viewing angle Luminance Dimension
10.1 RK3288 2G/8G 1280*800 89° 300cd/m2 259*177*26
13.3 RK3288 2G/8G 1920*1080 89° 220cd/m2 355*228*32.6
15.6 RK3288 2G/8G 1920*1080 45° 220cd/m2 403.7*252.7*33.5
18.5 RK3288 2G/8G 1366*768 89° 300cd/m2 462*282.5*37.5
21.5 RK3288 2G/8G 1920*1080 89° 300cd/m2 539.1*332.2*39.7
23.6 RK3288 2G/8G 1920*1080 89° 250cd/m2 595.5*363.1*43.6
27 RK3288 4G/8G 1920*1080 89° 300cd/m2 662.7*400*60.5
31.5 RK3288 2G/8G 1920*1080 89° 400cd/m2 763.7*457.2*72.5

Quantity:

Product Description

CHIPSET	Rockchip RK3288
OS	Android 7.1/Linux
CPU	Quad-core Cortex-A17 up to 1.6GHz
GPU	Mali-T764
DDR	2GB （1G/2G Optional）
EMMC FLASH	8GB（16G/32G/64G Optional）
Touch Screen	10 Point Capacitive
Ethernet	RJ45, 10/100M
WiFi	802.11a/b/g/n/ac，802.11b/g/n optional
Bluetooth	BT4.1
POE	802.3at（Optional）
Speakers	2*3W
Camera	Front 2M/5M pixels（Optional）
Interface	Micro SD card 1(max. 64GB) HDMI out1 USB Host 2.01 USB OTG2.01 12V DC IN*1
