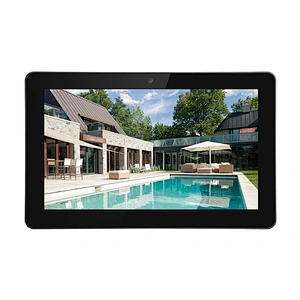

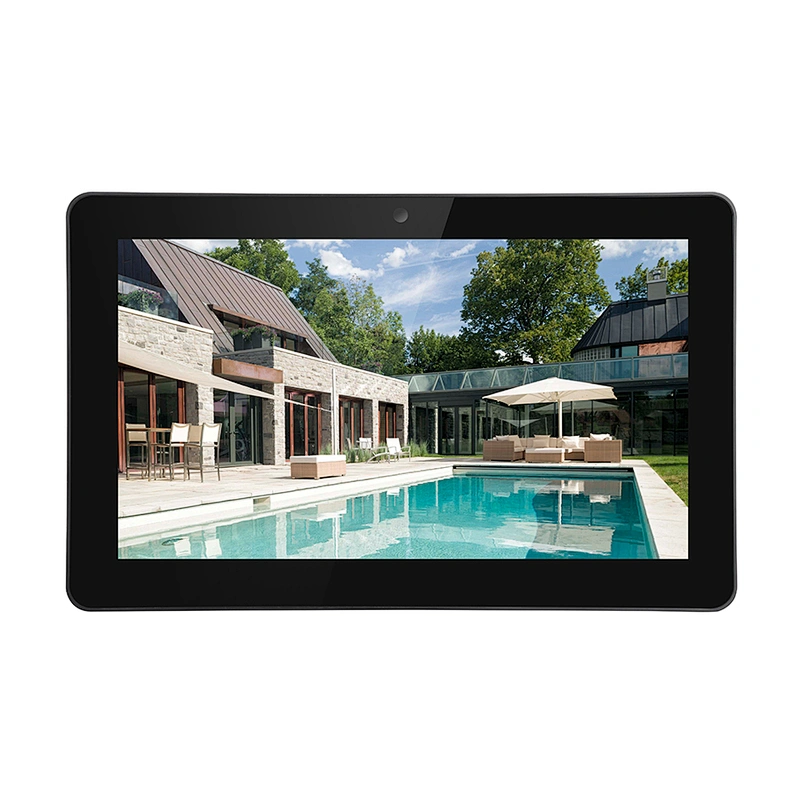

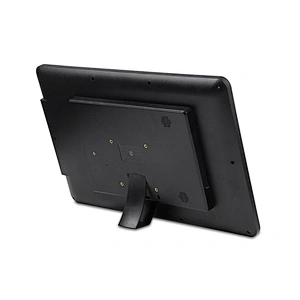

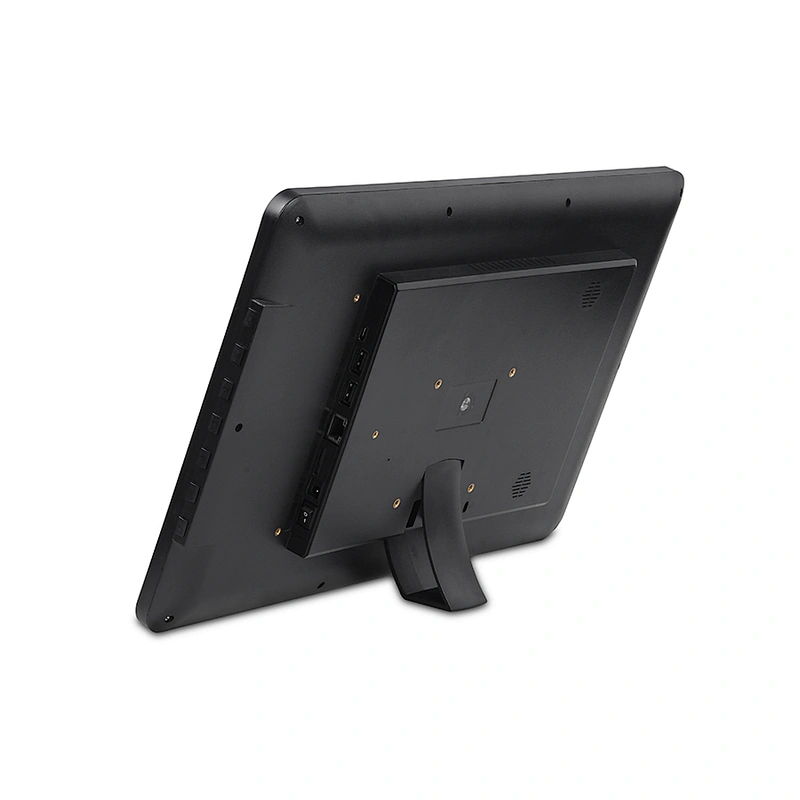

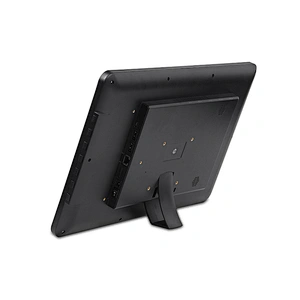

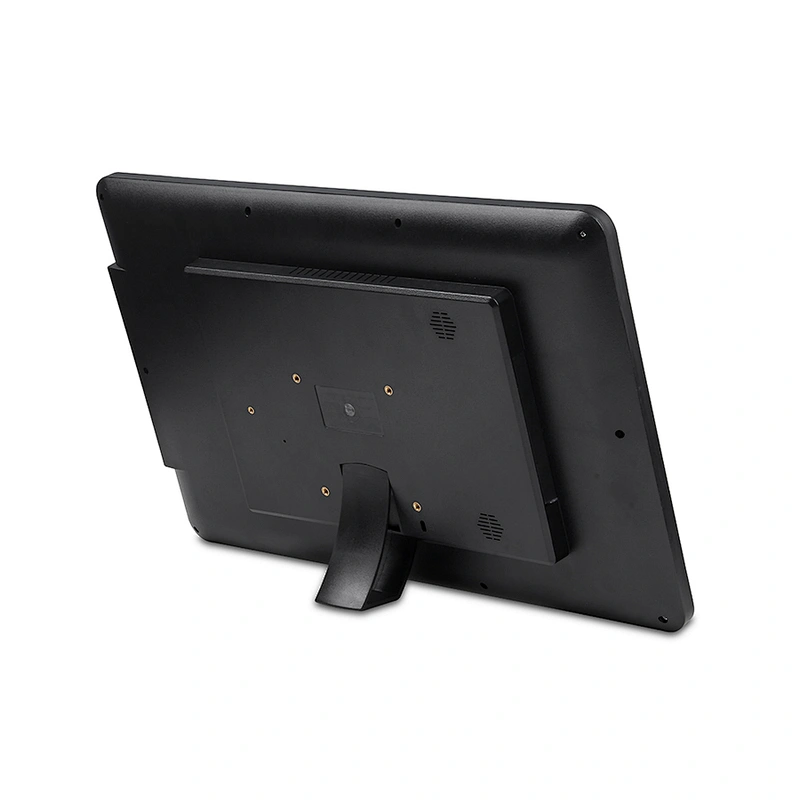

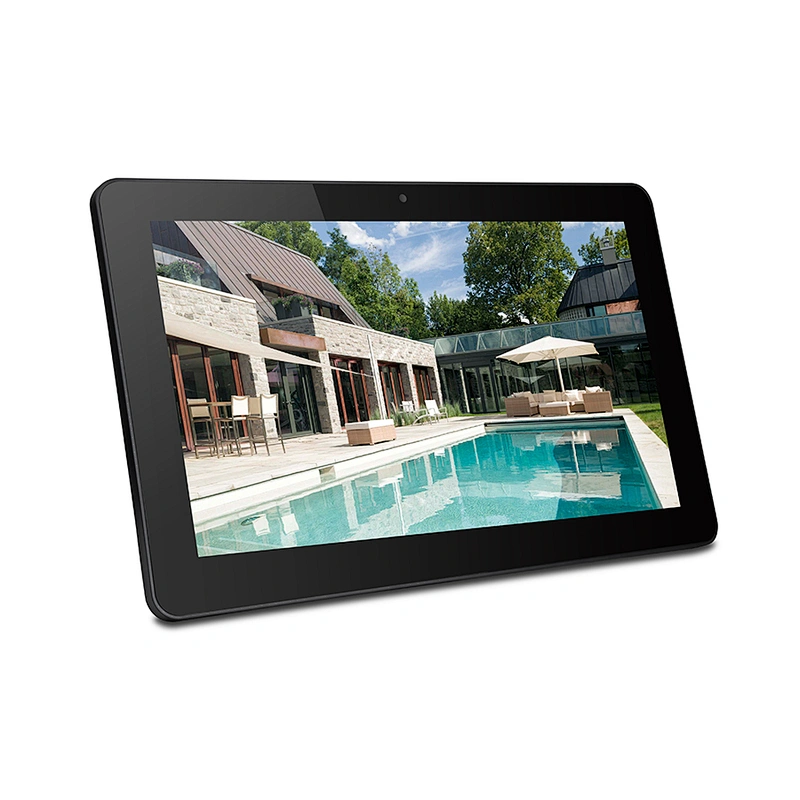

RK3399 TPC Series Commercial Display

RK3399 TPC Series Commercial Display

RK3399 TPC Series Commercial Display

RK3399 TPC Series Commercial Display

RK3399 TPC Series Commercial Display

RK3399 TPC Series Commercial Display

RK3399 TPC Series Commercial Display

RK3399 TPC Series Commercial Display

RK3399 TPC Series Commercial Display

RK3399 TPC Series Commercial Display

Model NO.: RK3399 TPC Series Commercial Display

Custom High performance Tablet Compatible Android and Linux option
(Available in size of 15.6″, 18.5″, 21.5″, 23.6″, 27″, 31.5″)

Quantity:

Product Description

Production	Panel	SOC	Memory/storage	Resolution	Viewing angle	Luminance	Dimension
TPC1561K9	15.6	RK3399	4G/8G	1920*1080	45°	220cd/m2	403.7252.733.5
TPC1851K9	18.5	RK3399	4G/8G	1366*768	89°	300cd/m2	462282.537.5
TPC2151K9	21.5	RK3399	4G/8G	1920*1080	89°	300cd/m2	539.1332.239.7
TPC2361K9	23.6	RK3399	4G/8G	1920*1080	89°	250cd/m2	595.5363.143.6
TPC2701K9	27	RK3399	4G/8G	1920*1080	89°	300cd/m2	662.740060.5
TPC3201K9	31.5	RK3399	4G/8G	1920*1080	89°	400cd/m2	763.7457.272.5

Specification

CHIPSET	Rockchip RK3399
OS	Android 7.1/Linux
CPU	Dual-core Cortex-A72 up to 1.8GHz Quad-core Cortex-A53 to 1.4GHz
GPU	Mali T860MP4
DDR	4GB LPDDR4（1G/2G Optional）
EMMC FLASH	8GB（16G/32G/64G Optional）
Touch Screen	10 Point Capacitive
Ethernet	RJ45, 10/100M/1000M
WiFi	802.11a/b/g/n/ac,2×2 MIMO
Bluetooth	BT4.1
POE	802.3at（Optional）
Speakers	2*3W
Camera	Front 2M/5M pixels（Optional）
Interface	Micro SD card 1(max. 64GB) HDMI out1 USB Host 3.01 USB Type C1 12V DC IN*

Send Message

Related Products

RK3288 TPC Series Touchscreen Display

RK3288 TPC Series Touchscreen Display

Model NO. RK3288 TPC Series Touchscreen Display

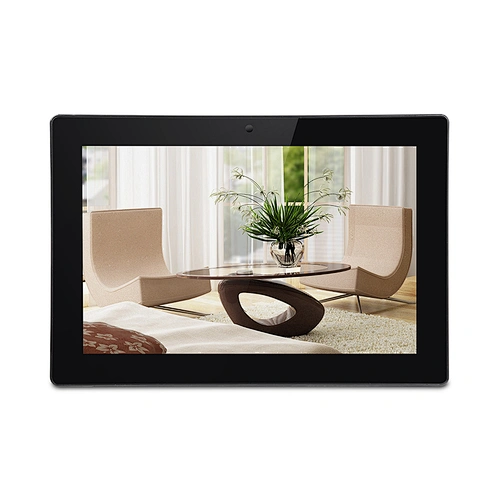

Qualcomm Rugged Tablet PC 10.1”
