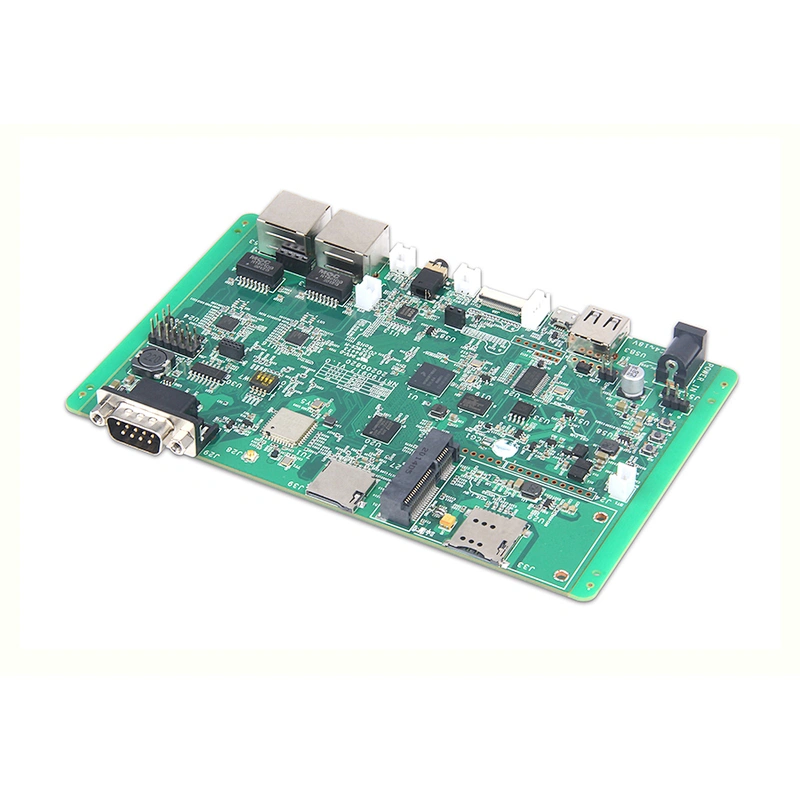

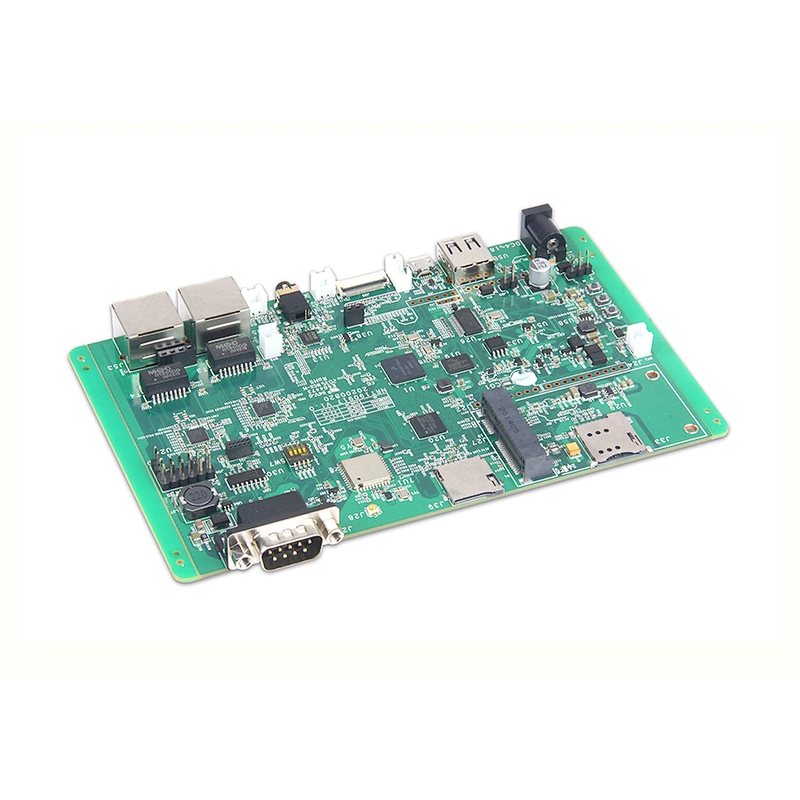

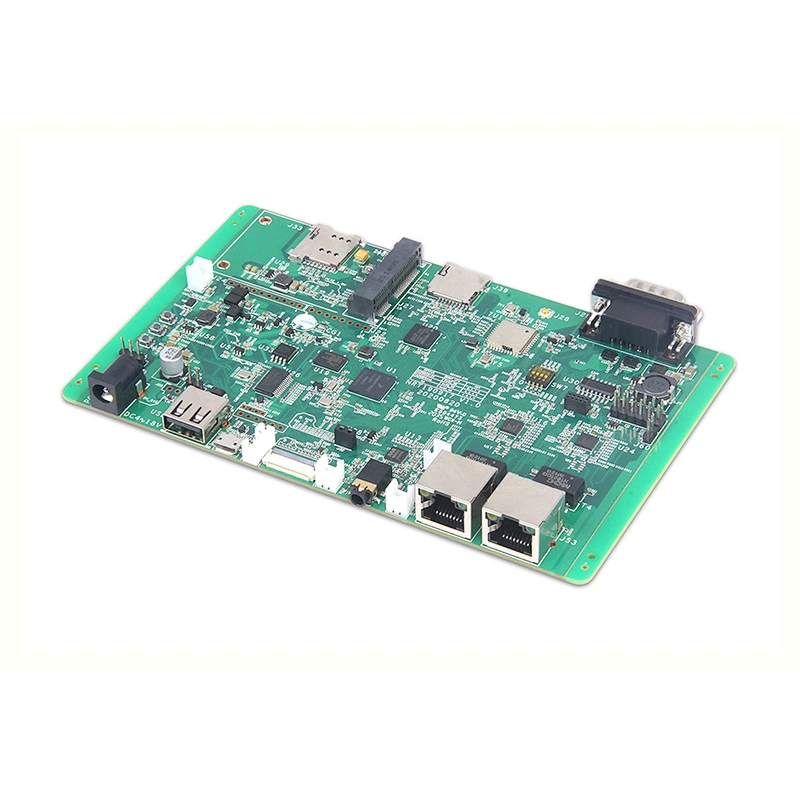

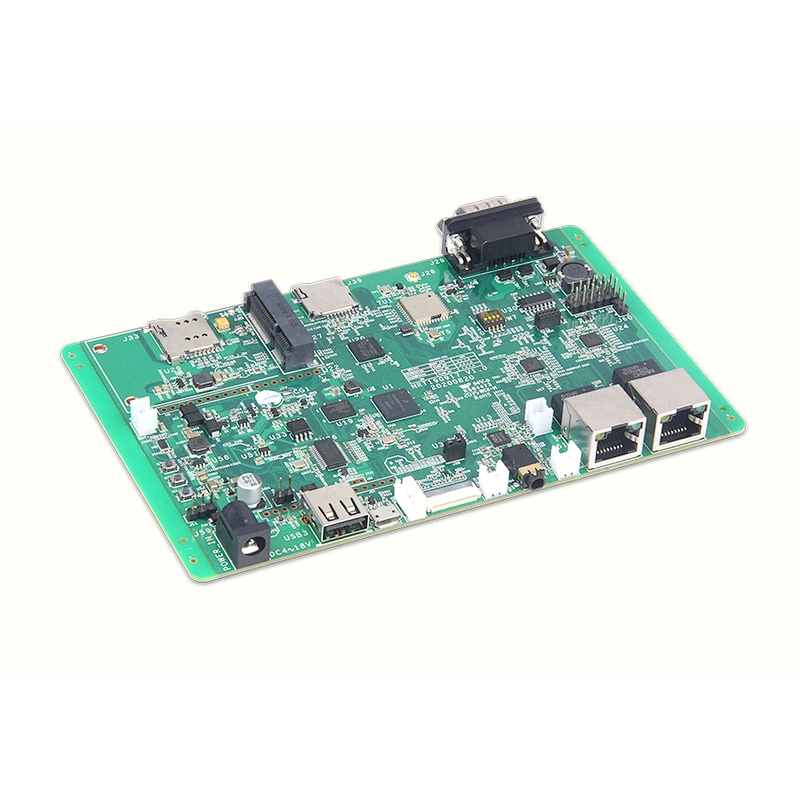

DB1060 (i.MX RT)

Model NO.: DB1060 (i.MX RT)

▪ MIMXRT1052DVL6A processor 600MHz Arm® Cortex®-M7 core
▪ 256Mb SDRAM memory, 512Mb hyper flash
▪ 512KB on-chip RAM
▪ LCD parallel display , MIPI 1.3MP-2MP camera, 2D graphics acceleration, SPDIF, I2S audio interface, with 2 mic input (option)
▪ Supports wired (Ethernet, USB, CAN ), wireless (multi Pre-Certified Wi-Fi module, Bluetooth, BLE, ZigBee, Zwave, LTE, LoRa, GPS, Thread) standards
▪ USBOTG, SDIO, CAN, 10/100 ENET*2（Only for RT1060）, UART/RS485, SPI, I2C, flex PWM, quad timer, ENC, PIT, GPT, ADC peripherals

Quantity:

Product Description

Processor

NXP i.MX RT and its family

Highlights

Low power consumption and ease of use of microcontroller High performance and scalability of application processors

Support system diversification

FreeRTOS (factory default), uCLinux, RT-Thread

Advanced security

Data encryption, high security level

Customizable

Accept various functions customization

Wide operating temperature

Commercial grade operating temperature: 0℃to +95℃

Industrial grade operating temperature: -40℃ to +105℃

Applications

Mobile Kiosks/POCs,Video streaming, voice, audio streaming,and immersive audio, and the smart home

Enterprise service

Provide comprehensive quality assurance, after-sales service and technical support

Product Specification

CPU	iMX RT1062, Arm® Cortex®-M7 core 600MHz
RAM	DRAM 256 Mbit, 166MHz
Internal Storage	• Boot ROM (128 KB) • On-chip RAM (1 MB) • 512 KB OCRAM shared between ITCM/DTCM and OCRAM • Dedicate 512 KB OCRAM
OS	Free RTOS
Bluetooth	4.0+EDR BLE
Built-in WiFi	802.11 a/b/g/n/ac;up to 433.3MHz
LTE	Yes (MiniPCIe Interface)
Ethernet port	RJ45 10/100/Mbps *2
Fuction Interface	RS 485/2321 Speaker1 Mic1 SIM Card Slot1 TF Slot 1 PCIe1 Camera*1
Battery(Chargeable)	3.7V lithium battery(Optional )
USB Interface	USB 2.0 Host x 1; USB 2.0 OTG x 1;
Key	Reset/Pair/Power (Programable)
PoE	Optional
Display	4.3-inch RGB is touchable(Standard) 7/10-inch RGB is touchable (optiona)
Camera array size	640 x 480
Expansion connector	• Standard Ardoino Connector • GT-IoT (LTE/LoRa/ZigBee/Z-Wave/BLE) • Arduino interface
Size (mm)	100*150
Power	+12V
