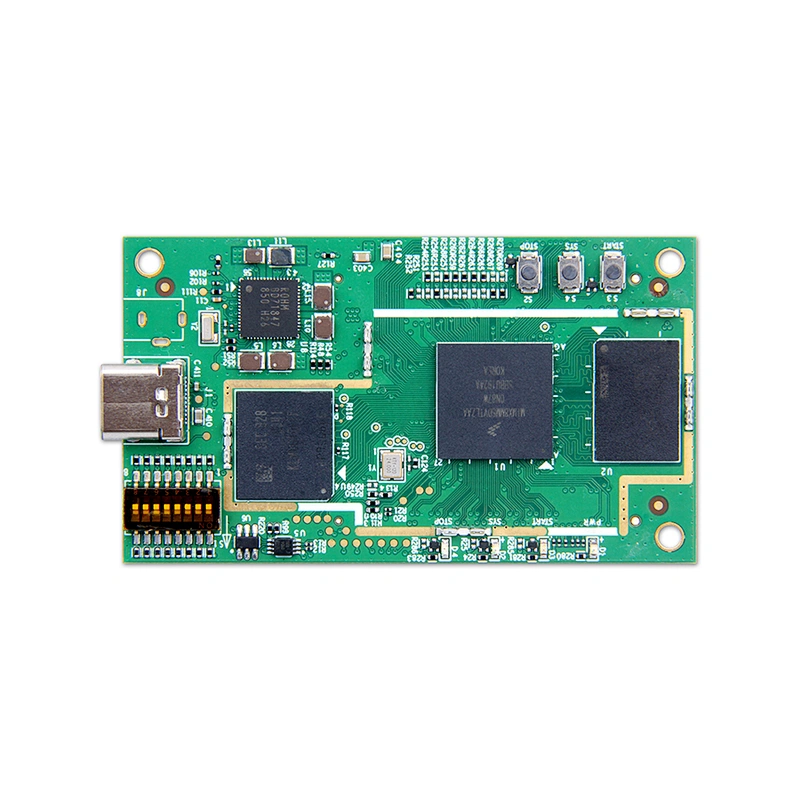

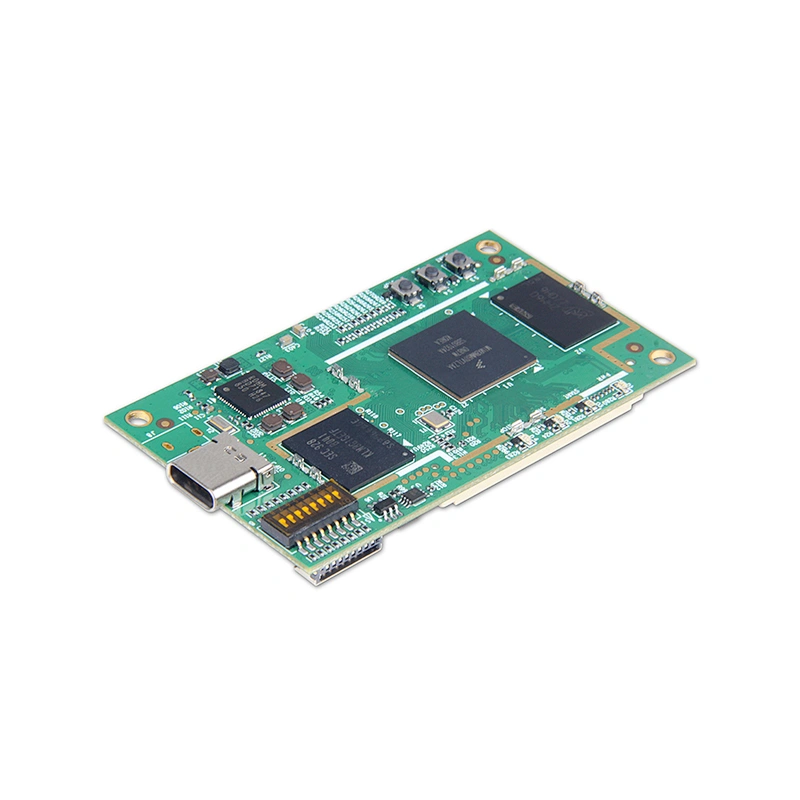

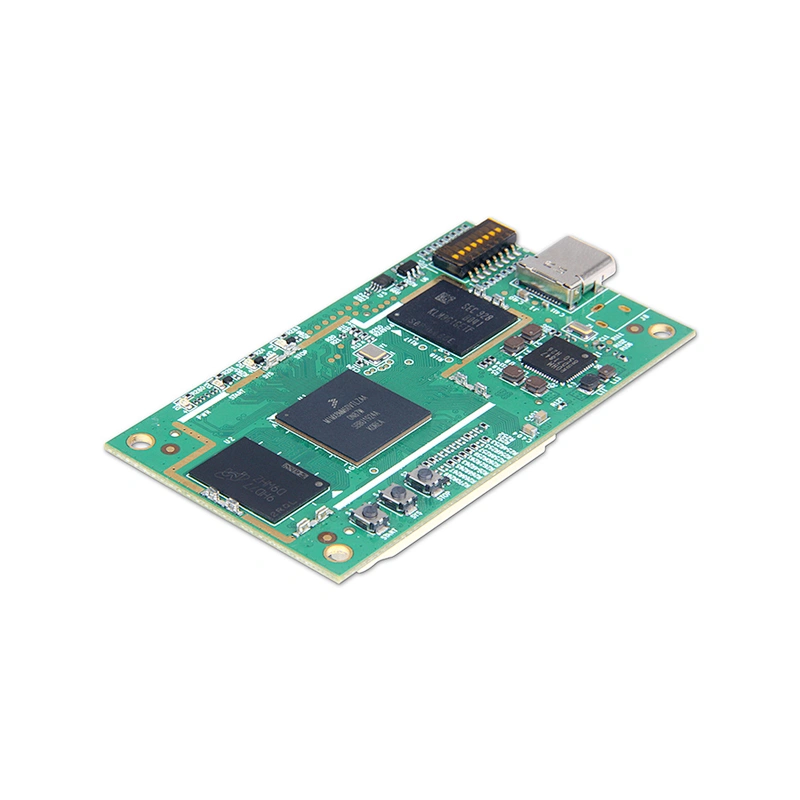

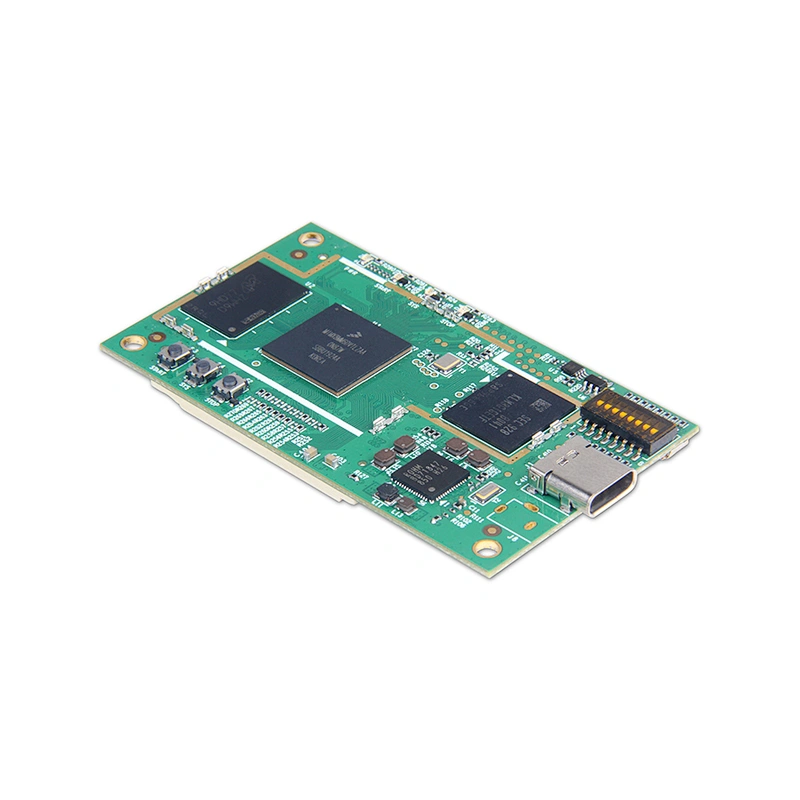

NXP i.MX 8M Mini SOM

Model NO.: NXP i.MX 8M Mini SOM

▪ iMX 8M Mini Quad Cortex-A53@1.8GHz
▪ 1GB LPDDR4
▪ 8GB EMMC
▪ Consumer home audio, industrial building automation and mobile computers, Internet of things and other applications
▪ Dual independent display interface: mipi-dsi (4 channels); HDMI 2.0 a
▪ Consumer electronics (0°C to 95°C Tj); Industrial control (-40°C to 105°C Tj)
.Linux OS, Android

Quantity:

Product Description

Processor advantage

Open source, chip series, first-class stability. etc.

Bright spot functions

Compact size, low power consumption, expandable peripheral interface

System supports

Andriod Linux(Yocto,Ubuntu,Debian) Free RTOS(For M4 Core)

Advanced security

Data encryption, high security level

Customizable

Customizable hardware interface functions, board functions. Structure of the custom.

Wide operating temperature

Commercial grade operating temperature: 0℃ to +70℃ Industrial grade operating temperature: -40℃ to +85℃

Applications

Mobile Kiosks/POCs,Video streaming, voice, audio streaming,and immersive audio, and the smart home

Enterprise service

Provide comprehensive quality assurance, after-sales service and technical support

Product Specification

Processor	i.MX 8M Mini Quad ARM Cortex-A53&Cortex M4
Memory/Storage	2GB LPDDR4(1-4GB optional) 8GB eMMC5.1(8-128GB optional)
Connectivity	Dual band Wi-Fi 2×2 802.11a/b/g/n/ac;Bluetooth 4.1
Peripheral	Key3 TF slot1 DIP switch1 Type C1
Indicator light	LED*4
OS-support	Linux(Yocto) Android
Audio interface	PCM/IIS -TX/RX
Expansion connector	●2x 80 pin High-Speed connector Uart4,IIC4,MIPI DSI1,MIPI CSI1,PCIe1,SPI2,USB1,GPIO18 SAI2,Eth1,Audeo*1,
Size (mm)	70 x 40
Operating	0°C to +70°C
Temperature	(optional -40°C to +85°C )
Net Weight (g)	15
Power	5V/1A
