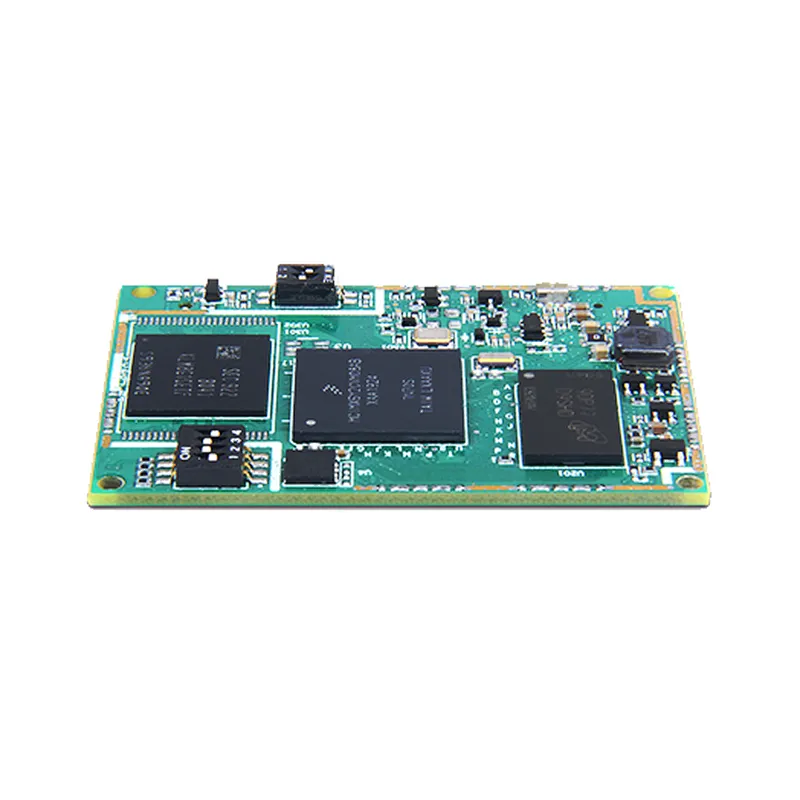

SoM-N6ULL

CPU

NXP i.MX 6ULL 528 MHz ARM® Cortex®-A7 core,

Power Consumption

Power optimization to the extreme.

Support system diversification

Linux Yocto System

Support QT5 visual development platform

Compatibility

Open interface definition, support size, function customization

Accept custom CarryBoard,

Wireless

Mezzanine module that combines the i.MX 6ULL

with 512MB DDR3 and 8GB eMMC.

Wide operating temperature

Commercial grade operating temperature: 0°C to +95°C

Industrial grade operating temperature: -40°C to +105° C(optional)

Application field

Suitable for communications, smart home, smart healthcare, Internet of Things (IoT) applications

Enterprise service

Provide comprehensive quality assurance, after-sales service and technical support

792 MHz(up to 900 MHz, 128 KB L2 cache)

900MHz(optional)

512MB / 1GB DDR3L

16-bit LP-DDR2, DDR3/DDR3L

4G/8G eMMC

8/16-bit Parallel NOR FLASH / PSRAM

Dual-channel Quad-SPI NOR FLASH

8-bit Raw NAND FLASH with 40-bit ECC

UART*5,

SPI*1,

SNVS*6,

SDIO*1,

I2C x2,

GPIO x7,

DC Power,

RTC Power

MIPI CSI*1

USB OTG *2,

10/100 ENET *2
