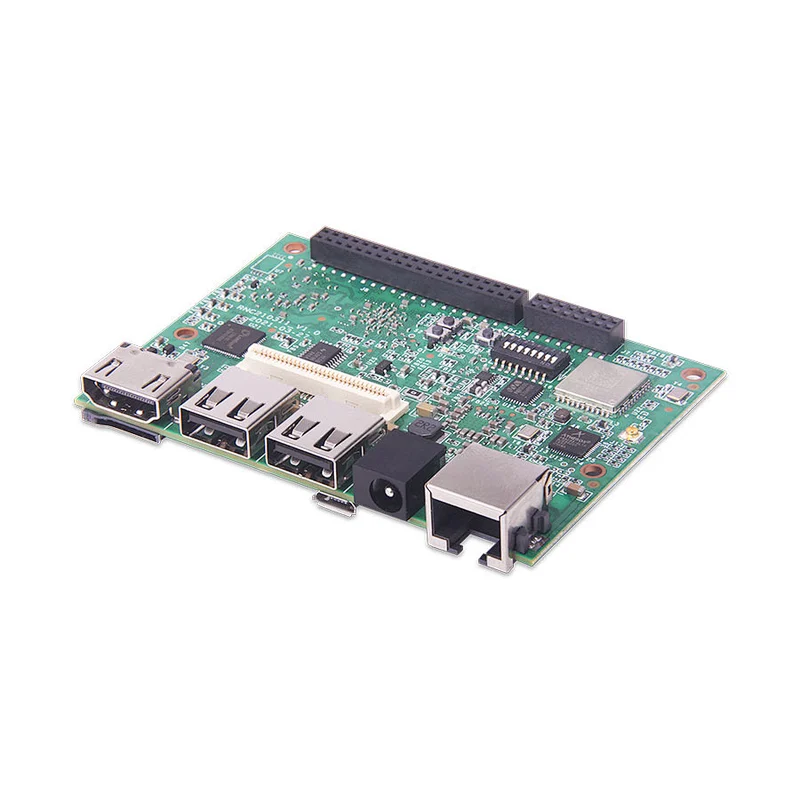

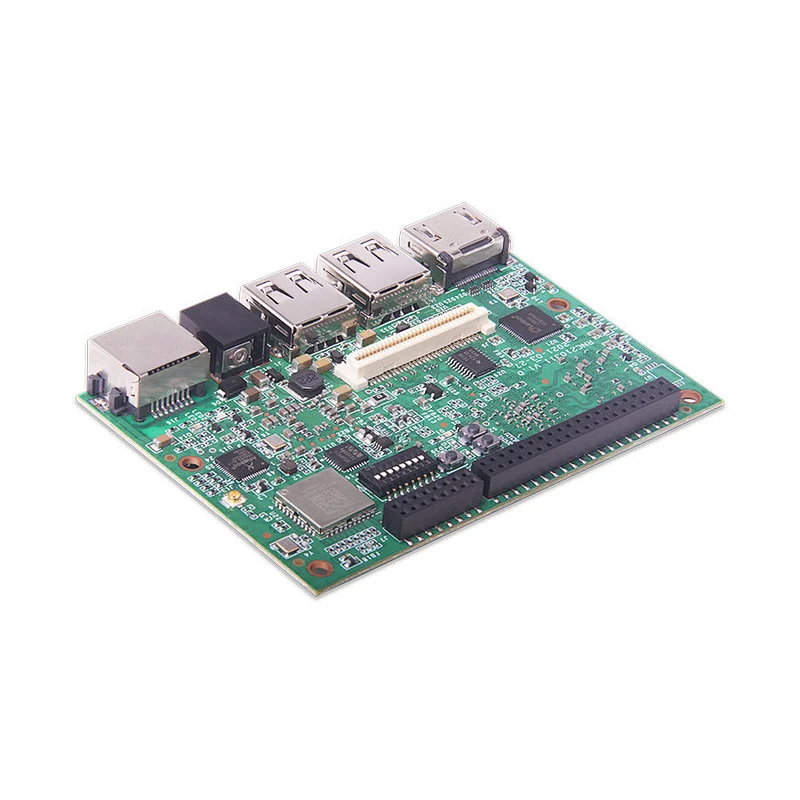

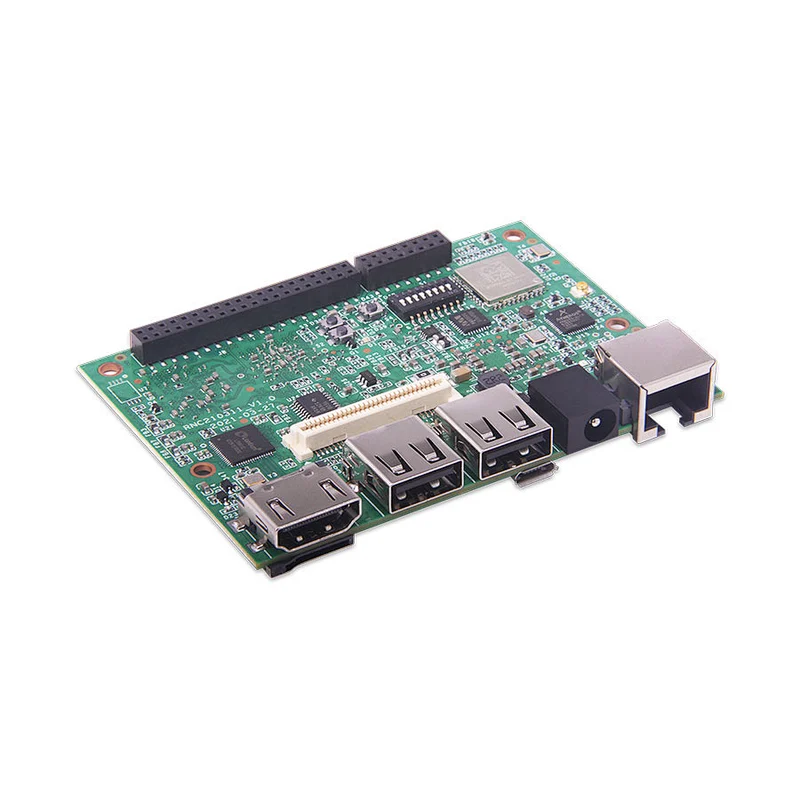

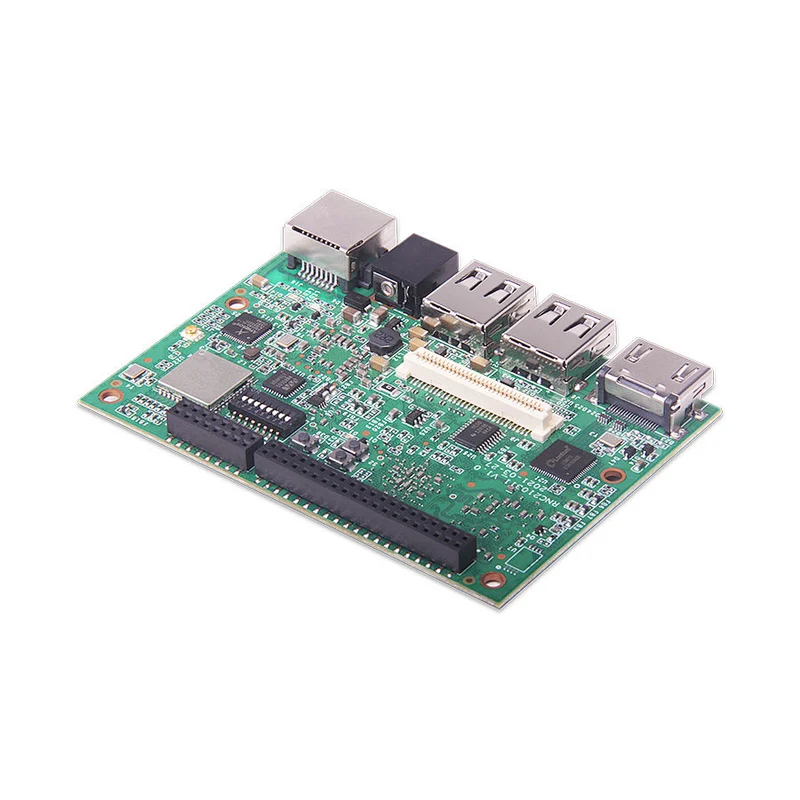

The DB 11 is a refined version of the single board computer product developed by Jinyap based on the NXP I.Mx 8M Mini platform. The i.MX 8M Mini is NXP’s first embedded multicore applications processor built using advanced 14LPC FinFET process technology, providing more speed and improved power efficiency. With commercial and industrial level qualification and backed by NXP’s product longevity program, the i.MX 8M Mini family may be used in any general purpose industrial and IoT application.
Multicore Processing 4xCortex-A53 core up to 1.8GHz per core 32KB L1-I Cache/ 32 kB L1-D Cache 512 kB L2 Cache 1x Cortex-M4 core up to 400MHz 16 kB L1-I Cache/ 16 kB L2-D Cache | Scalability Support 96 MezzanineBoard design specification, can easily extend any function |
Balance of consumption and performance Support for high-performance scenarios Supports low power scenarios | Excellent audio and visual function A variety of audio interfaces are available, including I2S, AC97, TDM and S/PDIF |
OS Support Ycoto(Linux)，Default Android 9.0 Windows 10 IoT Core | Wide range of applications • Smart Home • Audio field • Entertainment • Advertising machine • Edge Computing • Gateway |
Customizable Customizable hardware interface functions board functions. Structure of the custom. | Enterprise service Provide comprehensive quality assurance, technical support and mass production services |
Product Specification
| Processor | Quad core ARM Cortex A53(64bit) Cortex M4 |
| CPU Frequency | 1.2GHz |
| Memory | 2GB LPDDR4(1-4GB optional) |
| Storage | 8GB eMMC5.1(8-128GB optional) |
| WLAN | Wi-Fi 5 Dual-band 2.4GHz/5GHz Bluetooth 4.1(integration) |
| Separate Bluetooth support :BT4.0(optional) |
| Ethernet | RJ45-100/1000 MHz |
| Security | Encryption IC Support |
| Display | HDMI V1.4 |
| USB | USB 2.0 Type A *2 |
| Micro-USB | OTG |
| TF-Card | SDIO 3.0 |
| RTC(Real-Time Clock) | Support |
| Key | Volume+/volume-/Power |
| Indicator light | User(Programmable)*4 System status*3 |
| Connectivi ty | 1x Mezzanineboards 40 pin Low-Speed connector • UART, SPI, I2S, I2C x2, GPIO x12, DC power 1x Mezzanineboards 60 pin High-Speed connector • 4L-MIPI DSI, USB, I2C x2, 2L+4L-MIPI CSI 1xoptional 16-pin Analog expansion connector • Headset, Speaker, FM antenna |
| Mechanical properties |
| Size (mm) | 85*54 |
| Net Weight (g) | 10 |
| Power | 12V/1.5A |
| Wide working range | Consumer (0°C to 95°C Tj) Industrial (-40°C to 105°C Tj) |
| RoHS and Reach compliant | Yes |
