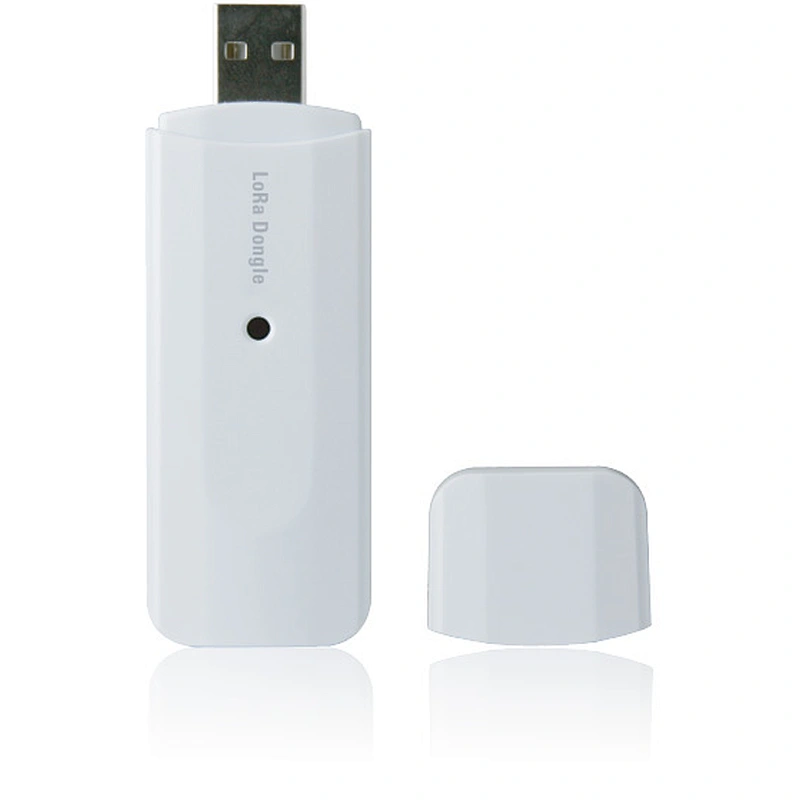

LoRa USB Dongle

This module is designed around the Sentrius™ SX1301 digital baseband chip withan integrated LoRa concentrator IP, which is designed toperform high performance gateway function in the ISM band. The RF front-end consists of two of the SX1257,high performance digital I and Q modulator/demodulator transceiver chips.The SX1257 is designed to operateover the frequency band of 862–960 MHz to cover the Europe and North American markets.The RF front-end is terminated with standard U.FL connector.The board form factor and connector pinout are designed to conform to M2.COM specifications.The card requires a single 5-volt supply and it generates its power supply requirements on-board.Standard SPI communication, reset, and power supply to the board are providedthrough a 75-position host interface connector.
