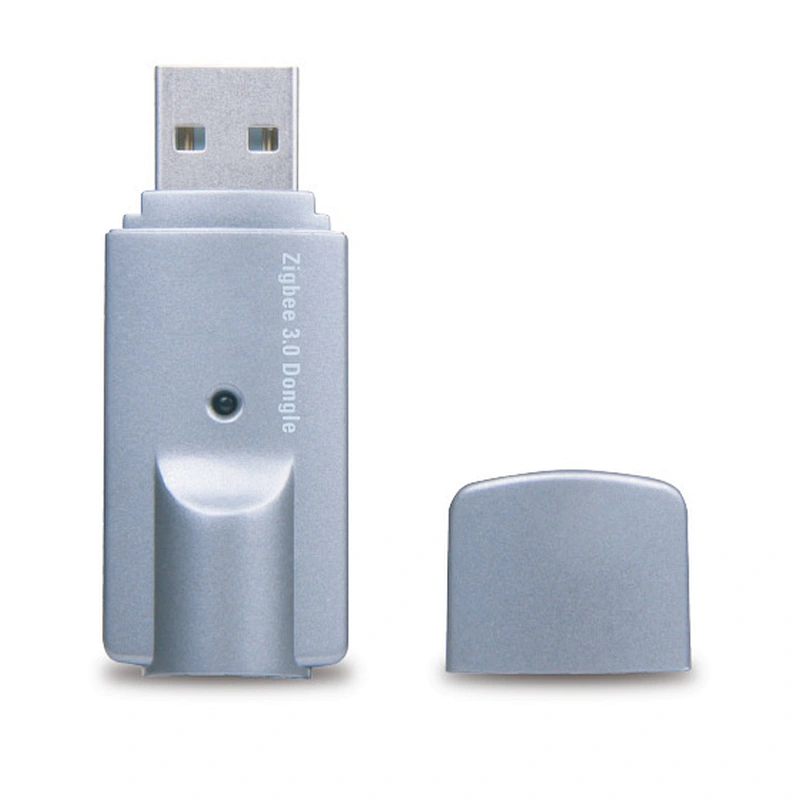

The UZB100 developed and produced by Geniatech is an ideal solution for energy-saving smart home control applications. It is especially suitable for modular products, including advanced wearable applications for payment and medical purposes, as well as industrial sensors and other Internet of Things (IoT) device performance combinations . It can be matched with Geniatech's other products, such as gateways, TV set-top boxes and routers, which are closer to real life and suitable for practical applications.
Compatibility and ecology The Zigbee alliance already has more than 160 internationally renowned companies in the field of smart homes. | Encryption 128-bit AES CCM ARM CryptoCell |
Rich Applications - Smart home - Wearable application - Industrial sensor - Beacon | Multi-protocol Bluetooth 5 Bluetooth Low Energy Bluetooth mesh ANT, 802.15.4, Thread, Zigbee |
Supported system - Debian&openWRT(Linux) - Android | Scalability - USB Dongle - Module(Support Geniatech products built - in) |
Customizable Customizable hardware interface functions; board functions; Structure of the custom. | Enterprise service Provide comprehensive quality assurance, after-sales service and technical support |
Product Specification
| MCU | 64 MHz 32-bit Arm Cortex-M4 with FPU |
| RAM | 256 KB |
| ROM | 1 MB Flash |
| GPIO | x 32(Preserve) |
| USB interface type | Type-A USB |
| Key | 1 (programmable) |
| Indicater | 1 (programmable) |
| Sensitivity | -95 dBm |
| PA | Support |
| Peripherals | UART SPI TWI PDM I2S QSPI PWM 12-bit ADC NFC-A USB 2.0 |
| Radio current consumption |
| TX Power at +8 dBm | 14.8 μA |
| TX Power at +4 dBm | 9.6 μA |
| TX Power at 0 dBm | 4.8 μA |
| RX at 1 Mbps | 4.6 μA |
| RX at 2 Mbps | 5.2 μA |
| System current consumption |
| In system OFF,no RAM retention | 0.4 μA |
| In system OFF,full RAM retention | 1.86 μA |
| In system ON,no RAM retention | 0.97 μA |
| In system ON,full RAM retention | 2.35 μA |
| In system ON,full RAM retention | 3.16 μA |
| Mechanical dimensions |
| Size (cm) | 42*16mm |
| Net Weight (g) | 10 |
| Power | DC: 1.7V~+5.5V |
| Wide working range | -40 C ~ 85 C |
| RoHS and Reach compliant | Yes |
