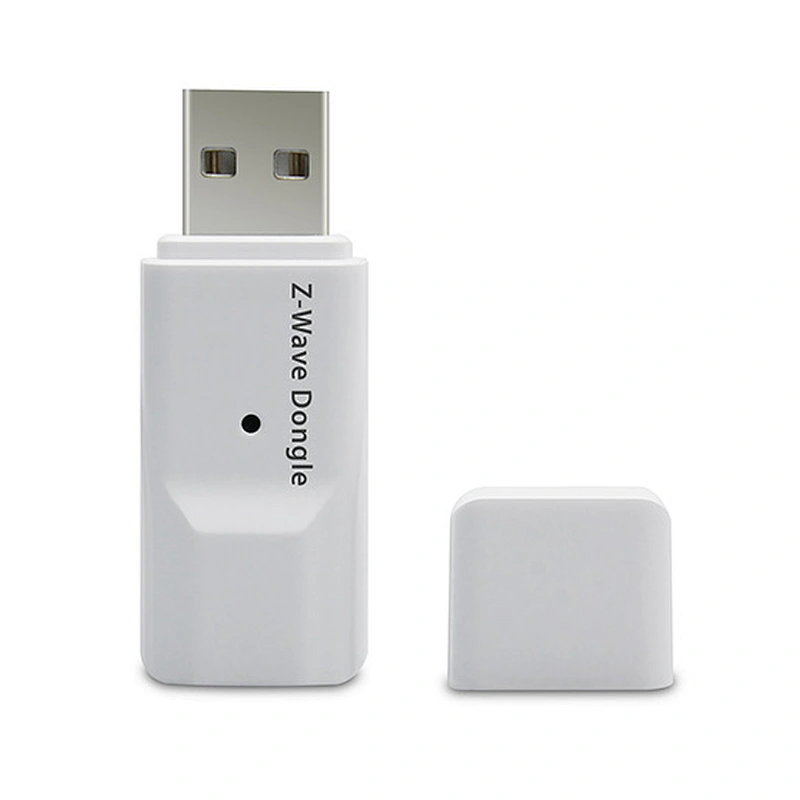

Z-Wave USB Dongle

Model NO.: Z-Wave USB Dongle

Quantity:

Product Description

UZW100 is an ideal solution for energy-friendly smart home control applications such as motion sensors, door/window sensors, access control, appliance control, building automation,energy management, lighting, and security networks in the “Internet of Things”.Combined with Geniatech's Gateway,TV set-top box and Router, it is more suitable for practical application.

Compatibility and ecology

The Z-Wave alliance already has more than 160 internationally renowned companies in the field of smart homes.

Simplify deployment

USB interface, easy to expand, plug and play, is conducive to development.

Rich Applications

Z-Wave focuses on home automation and smart home Smart home features Router solutions

Hotspot

RF-based, low cost, low power consumption, high reliability, suitable for short distance, narrow bandwidth applications

Supported system

- Debian&openWRT(Linux)

- Android 7

- Windows (PC)

Scalability

- USB Dongle

- Module(Support Geniatech products built - in)

Customizable

Customizable hardware interface functions; board functions; Structure of the custom

Enterprise service

Provide comprehensive quality assurance, after-sales service and technical support

Product Specification

MCU	32-bit ARM®Cortex®-M4 core at 39 MHz
RAM	64KB (8KB Application)
FLASH Memory	512KB (64KB Application)
GPIO	x 32(Preserve)
USB interface type	Type-A USB
Key	1 (programmable)
Indicater	1 (programmable)
	100kbps
Max TX Power	13dBm
USB	USB2.0 x 1
Frequency	US 908.42MHz( 915MHz )
Frequency	EU 868.42MHz( 868MHz )
Power consumption
At 100 kbps, GFSK, 868 MHz	9.8 mA
At 13 dBm output power at 868 MHz	40.7 mA
At 0 dBm output power at 908 MHz	13.3 mA
In Active Mode (EM0)	69 μA/MHz
EM4 Mode (128 Byte RAM retention and RTCC running from LFRCO)	0.8 μA
Mechanical dimensions
Size (cm)	42*16mm
Net Weight (g)	10
Power	DC +5V
Wide working range	-40 °C ~ 85 °C
RoHS and Reach compliant	Yes
