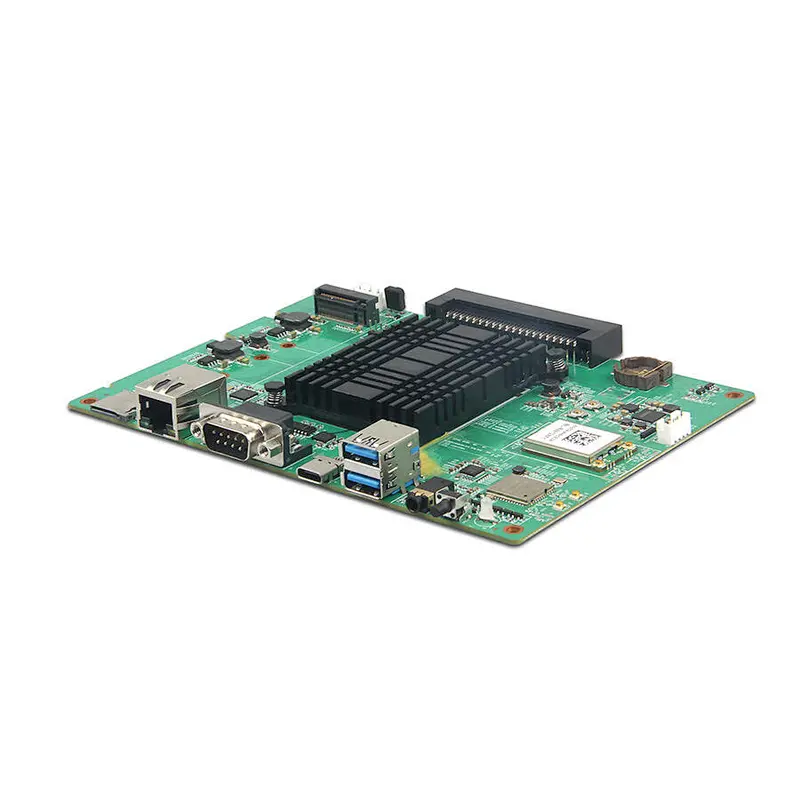

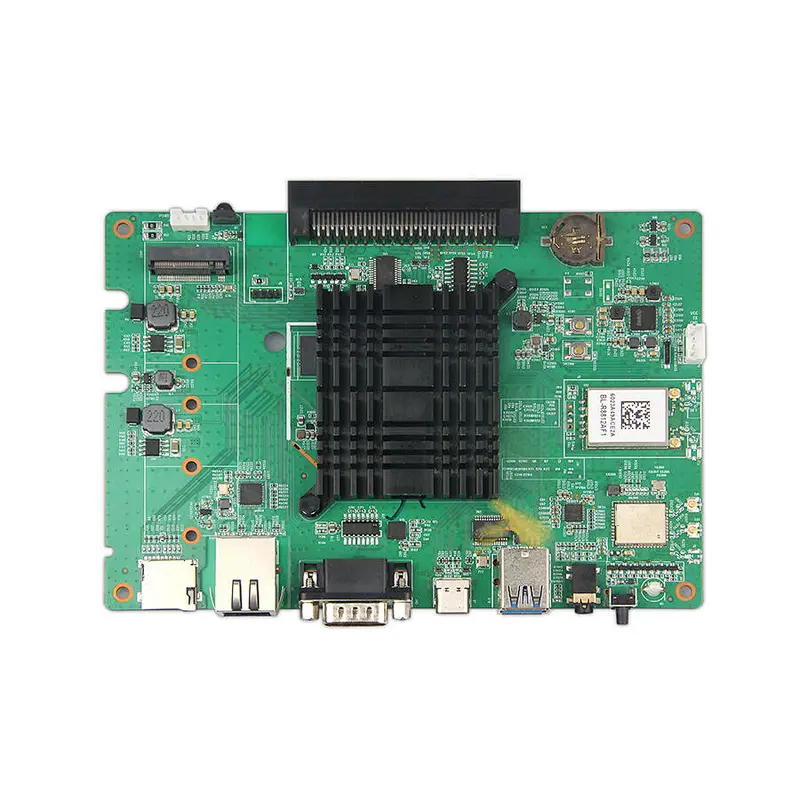

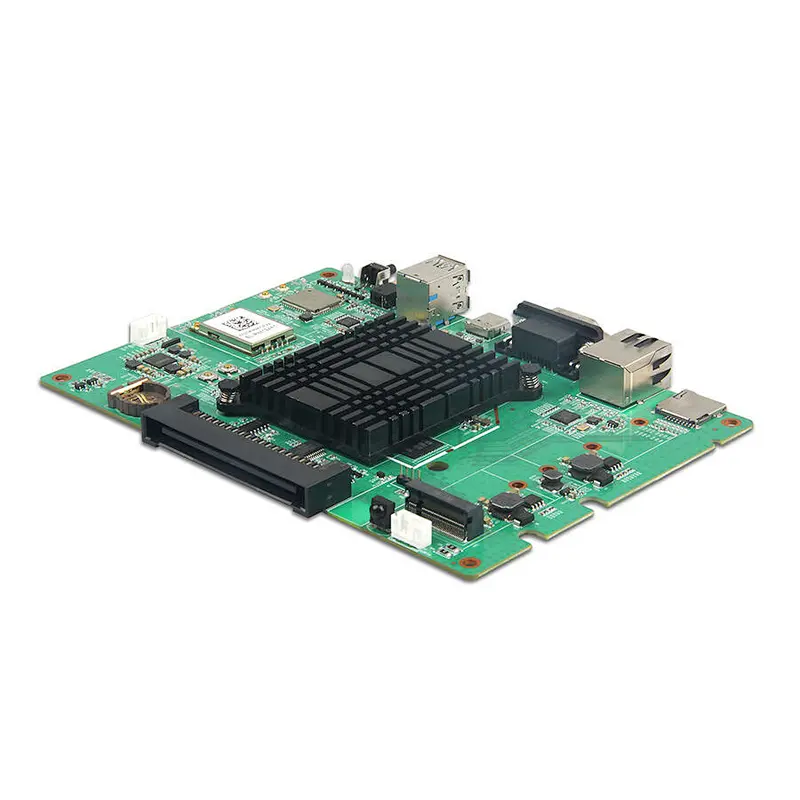

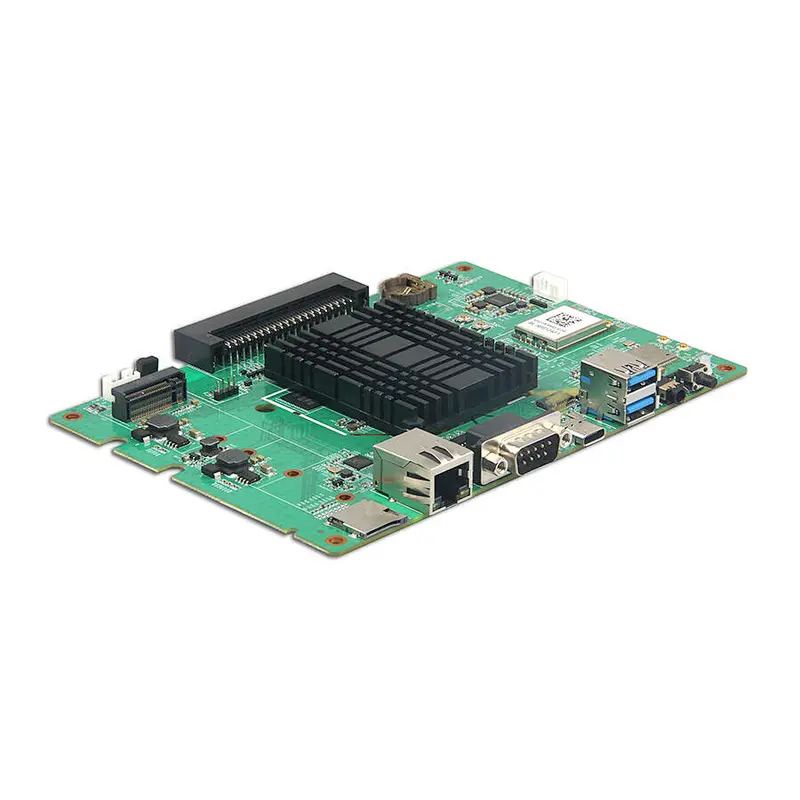

OPS3399

Model NO.: OPS3399

Quantity:

Product Description

Ops3399-H is a high-end customized development board of Geniatech. It can be applied to business meetings, projection meetings and other application scenarios. It has the functions of document sharing, real-time writing board, intelligent screen casting, etc. Below is the detailed specification：

(I) Rockchip RK3399 with Dual-core ARM Cortex-A72 MPCore processor and Quad-core ARM Cortex-A53MPCore processor

(II) 4GB LPDDR4, 32GB eMMc flash

(III) 80 Pin Connector(Intel),M2,Micro SD,USB3.0*2,Type-C,headphone (audio out/mic in)

(IV) WiFi 2.4G + BT + 5G ac and 1000M LAN interface

(V) Support Micro SD card(TF card : Max256G )

(VI) Designed for retail, interactive communication

(VII)Dimensions:180x119x30mm

OPS3399 Specification

Chipset	Rockchip RK3399
Market area	Global
OSD Language	English/Chinese(multi language OSD)
OS	Android 7.1
Processor	CPU	Dual-core ARM A72 processor@ 1.8GHz And Quad Core A53 @ 1.4GHz
	GPU	ARM Mali-T860MP4 GPU 800MHz
	DDR	4GB（2G Optional）
	EMMC FLASH	32GB（8G/16G/64G Optional）
Network	Ethernet	RJ45, 10/100/1000M
	WiFi 1	IEEE 802.11a/b/g/n/ac , 2.4G + BT + 5.8G @2T2R
	WiFi 2	IEEE 802.11a/b/g/n/ac , 2.4G + 5.8G @2T2R
Interface	Micro SD	Micro SD *1(max. 256GB)
	80 Pin Connector(Intel)	JAE TX25A 80-pin connector
	USB	USB 3.0*1
	Power IN	Power IN headpin
	M.2	M.2*1
	Type-C	USB3.0 &DP output
	3.5mm jack	Headphone(audio out/mic in)
	HDMI IN	HDMI In * 1
	Reset	Reset*1
	LED	Power LED*1
IR receiver	Infrared remote control
Dimensions	180 mm * 119 mm * 30 mm
Adapter	DC12~19V
Accessory	WiFi antenna
