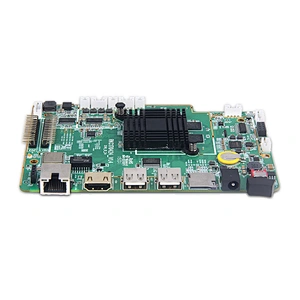

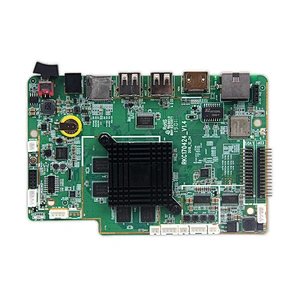

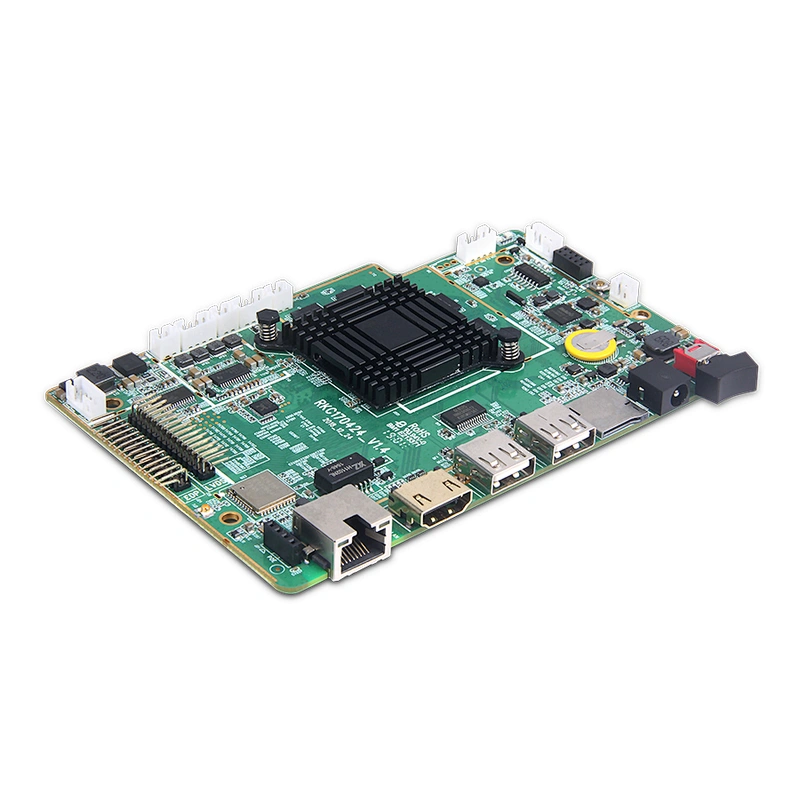

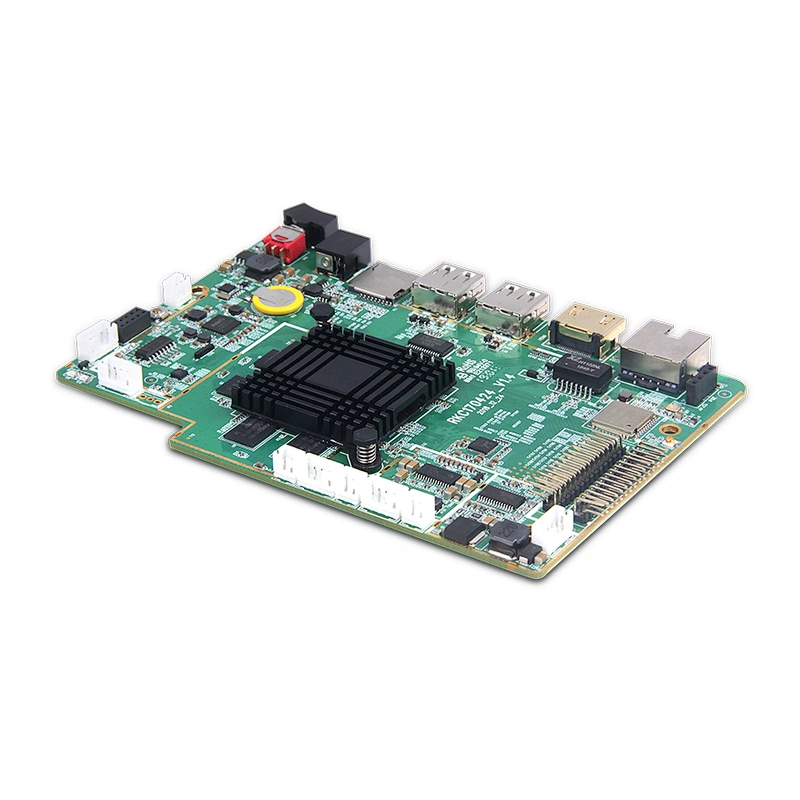

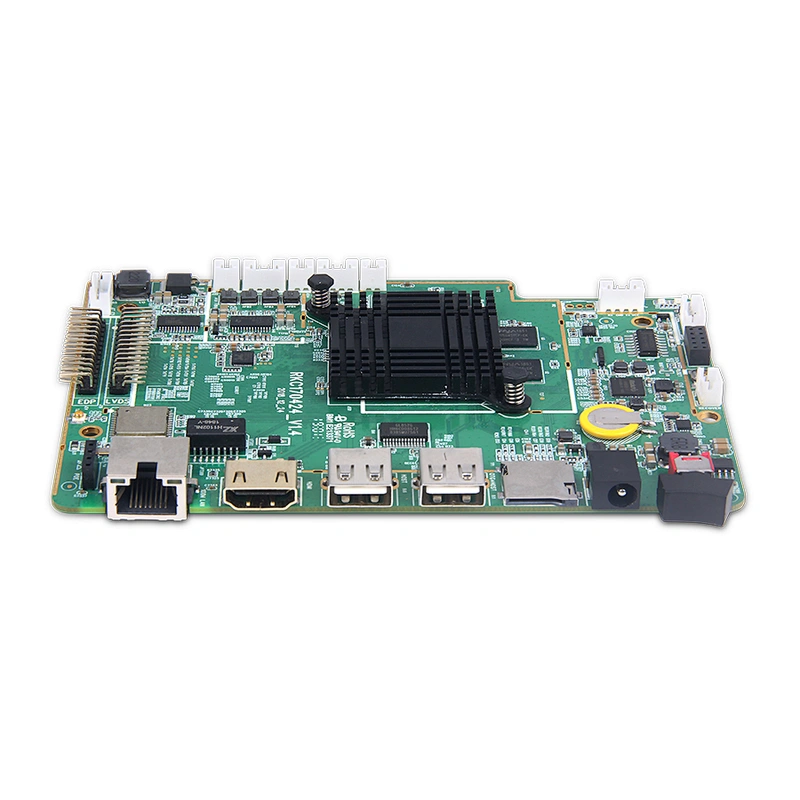

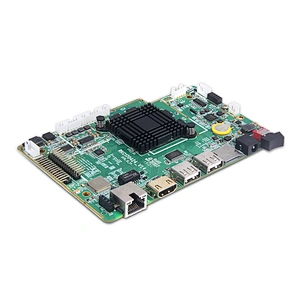

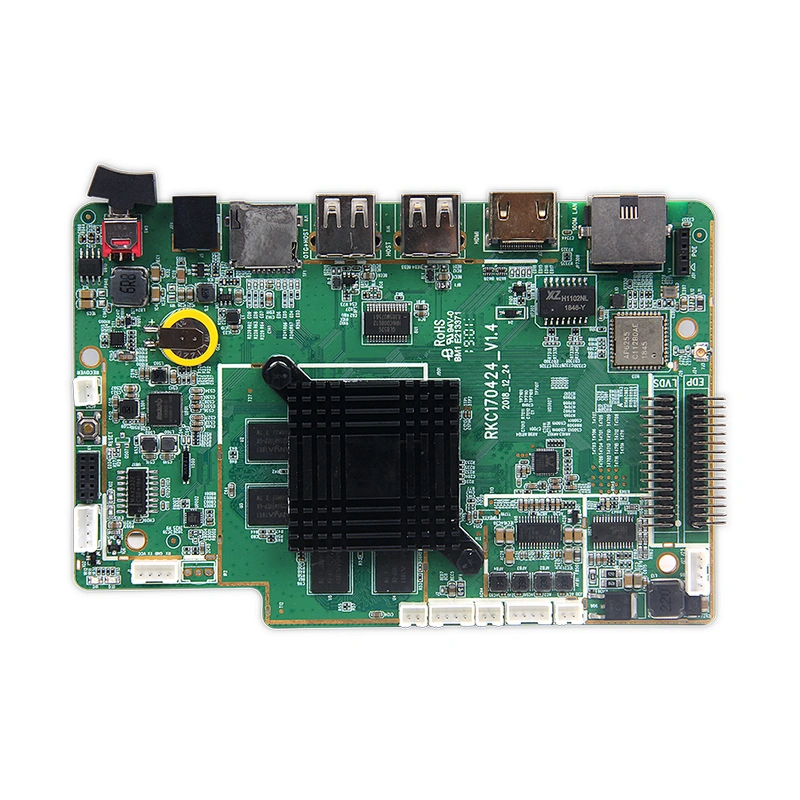

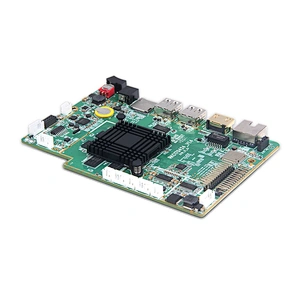

RK3288 Board – DB5

Model NO.: RK3288 Board – DB5

▪ Quad Core ARM® Cortex™-A17 up to 1.8GHz
▪ Quad-core ARM® Mali™-T764MP
▪ 2GB dual-channel MIPI-DSI DDR3
▪ 8GB~32GB eMMC 5.1 Storage
▪ WLAN 802.11ac and Bluetooth 4.1
▪ USB 2.0 *2,USB OTG 2.0 *1
▪ Dual-screen Display
▪ POE, RS232, LVDs, eDP

Quantity:

Product Description

can support LVDS/EDP interface LCD Panel	Quad Core Cortex A17 @1.8GHz, support Android 5.1 OS/Linux
2GB RAM, 8GB eMMc , external expansion storage SD card (max. 64GB)	Designed for retail, interactive communication
Plastic frame, support wall mount and desktop	USB, SD, TF external storage, support 4K play
Built-in WiFi, 100M LAN interface

FEATURES

CHIPSET		Rockchip RK3288
OS		Android 5.1
CPU		Quad Core A17r4 CPU @ 1.8GHz
GPU		Mali T764MP
DDR		2GB
eMMc Flash		8GB(6G/32G optional)
Spport Pane	Panel type	TFT LCD
	Interface	LVDS / EDP
	Resolution(Max)	1920*1080
	Voltage	3.3 V
Network	Ethernet	RJ45, 10/100M
	WiFi	802.11.b/g/n
	Bluetooth	BT4.1
	3G/4G	Option
Standby Power		<0.5W
Interface	SD	SD card *1(max. 64GB)
	HDMI	HDMI out*1
	USB Host	USB Host 2.0*1
	USB OTG	USB OTG 2.0*1
	DC IN	DC IN*1
Size(mm)		155x105 mm
Weight		135g
Adapter		DC12V / 3A
Customizable GUI		We provided GUI customization and we have a vast collection of Launcher created by our R&D team for you to choose from.
Rich Applications		There are over 1 million applications in the market, and supports most famous applications like: Youtube, Facebook, and Twitter, etc..
