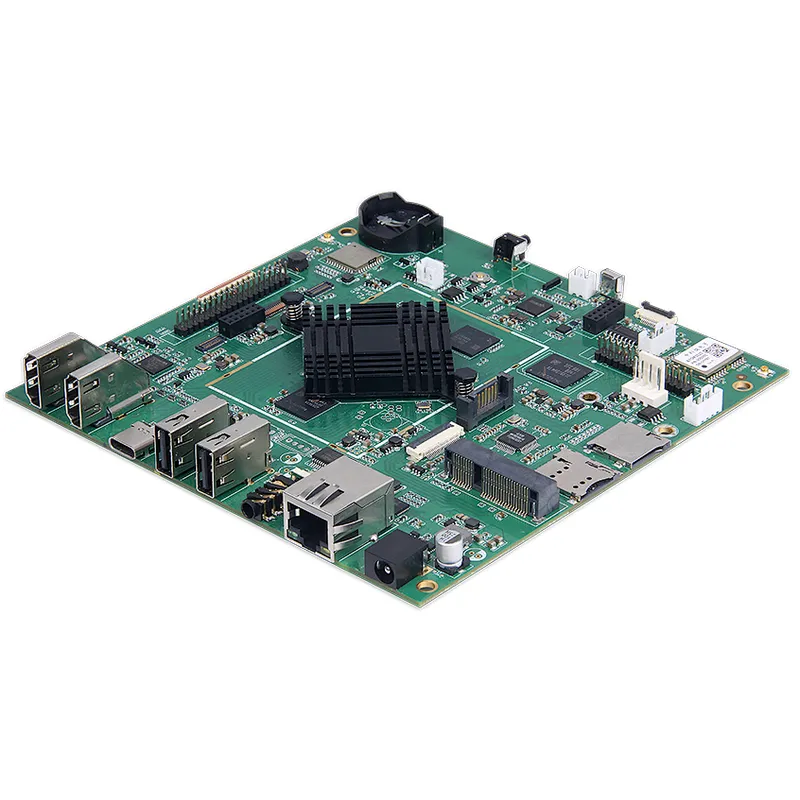

RK3566 Development Board

Quantity:

Quad-core ARM Cortex-A55 CPU and Mali-G52 GPU.	Neural network acceleration engine with processing performance up to 0.8 TOPS
2GB RAM(up to 8GB) 16GB eMMC(up to 128GB)	Build-In Wifi module，2.4G/5.8G， support BT5.0(Optional)，and Double gigabit Ethernet.
Support HDMI out and HDMI in(optional) Support LVDS/MIPI/eDP panel(up to 2K panel)	Support 2*8W(Max) Speaker, and mic array
Used in commercial display, security, industrial control, commercial display and other fields	Rich Interface USB3.0 x 2, USB2.0 x 1, TF Card Slot, SPDIF, RF connector (DVB-T2/ISDB-T/DTMB/ATSC), SIM Card Slot, SATA, M.2, USB2.0 x 3, Uart x 3

Product Specificatio

CPU	Rockchip RK3566 Quad-core ARM Cortex-A55
CPU Frequency	2.0 GHz
Internal Memory	2/4GB DDR4
Internal Storage	16/32/64/128GB EMMC5.1.
OS	Android 11.0/Linux
Bluetooth	5.0(Optional)
Built-in WiFi	802.11 a/b/g/n/ac
WiFi Frequency Range	2.400~2.497GHz, 4.900~5.845GHz
Ethernet port	1 gigabit Ethernet
I/O	1 x PCIe 3.0(M.2 Slot) 1 x Dual Channel 24-bits LVDS(MIPI DSI ) 1 x eDP 1.3 1 x HDMI2.1, up to 4096 x 2160@60Hz(Output) 1 x HDMI IN, Up to 4096 x 2160@30Hz 1 x SATA3.0 1 x USB3.0 Type-A, 1 x USB2.0 Type-A,3 x USB2.0 4 Pin Slot 2 x Antenna Slot(WIFI/BT) 1 x GTIoT 1 x POE(Optional) 1 x TF Card Slot(Up to 512GB) 1 x RF(Tuner RF In, Default ATSC , DVB-T/DVB-T2/ISDB-T/DMBT is optional) 3 x Serial Port(2 x 2-wire UART，1 x 2-wire UART/Debug) 1 x MIPI CSI RX(1 x 4-lane MIPI CSI) 12 x GPIO(1 x PWM)
Power	12V/2V
