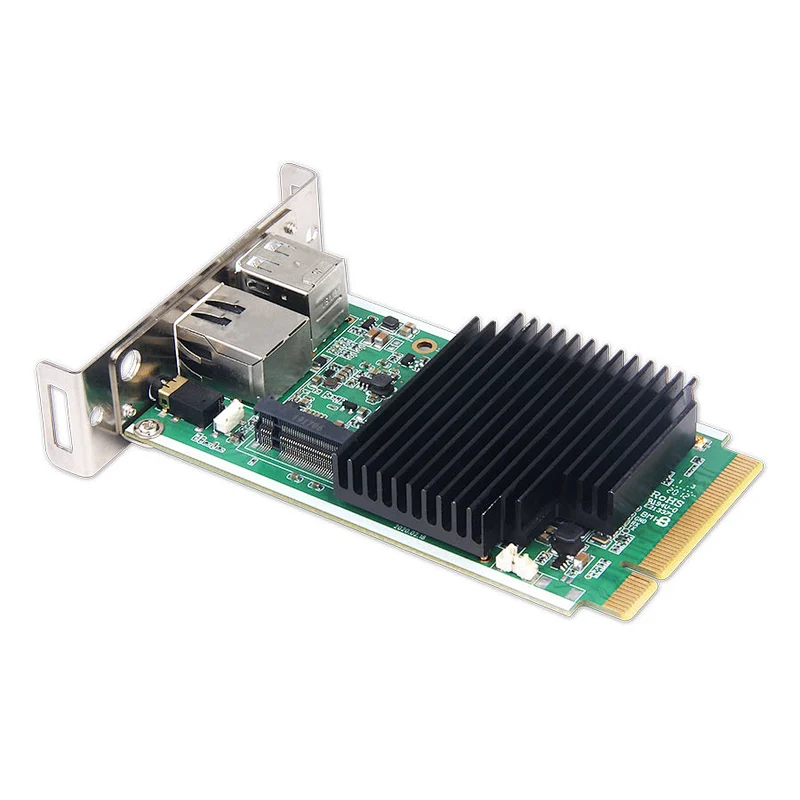

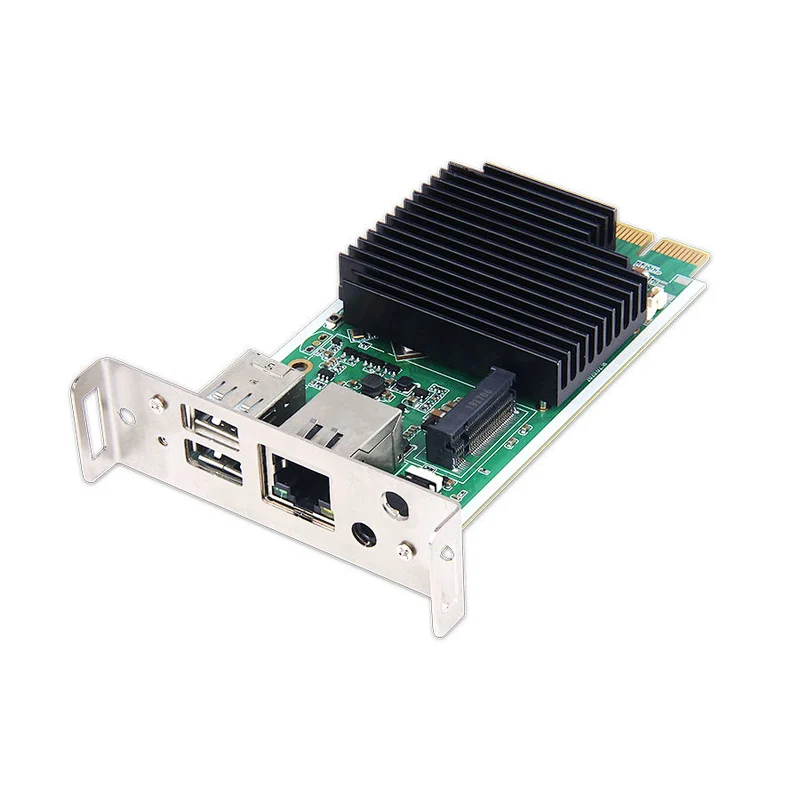

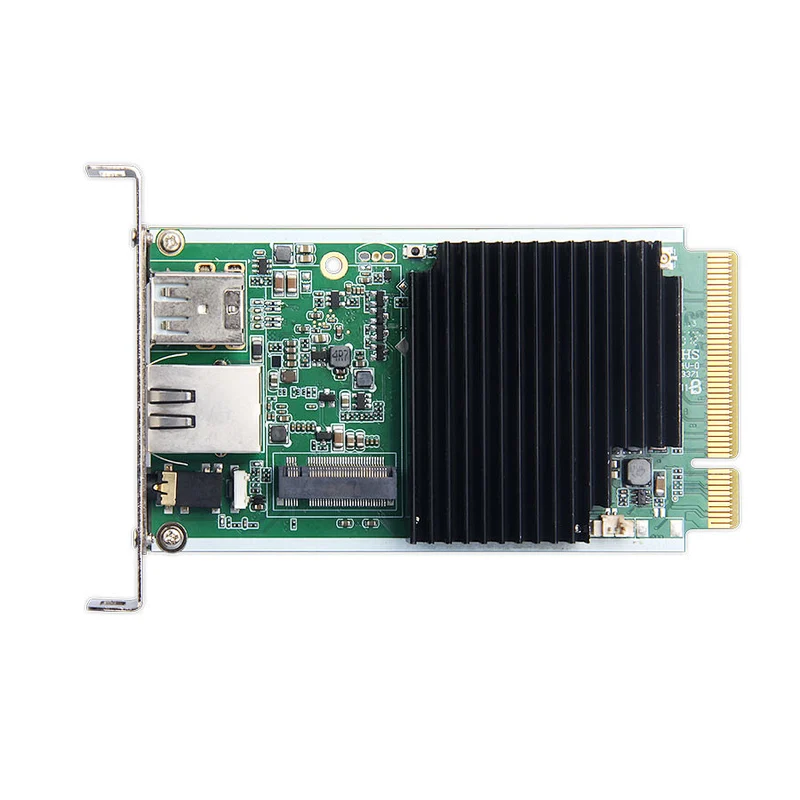

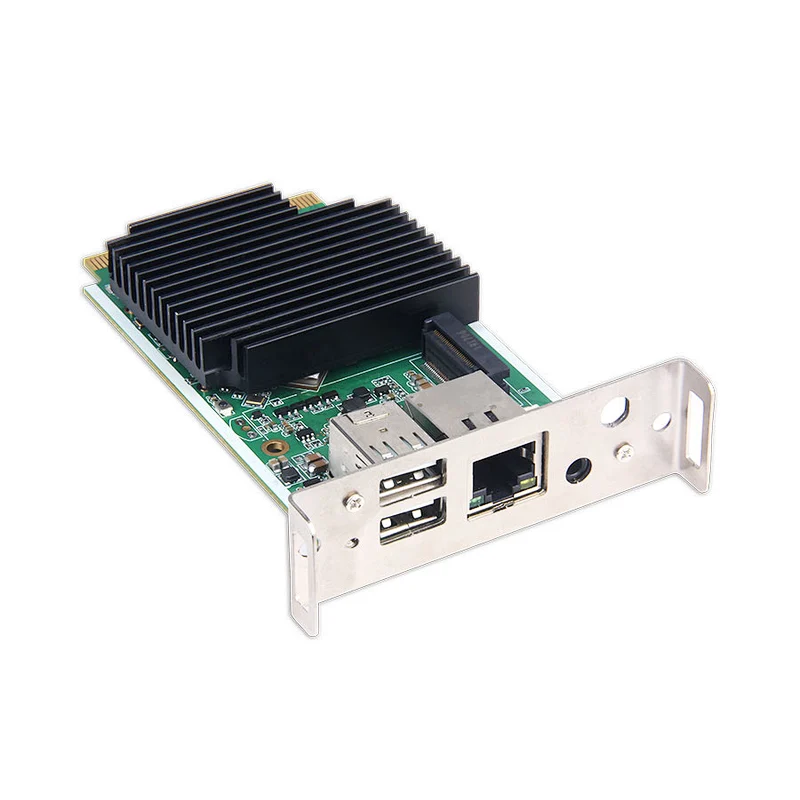

SDM3399

Model NO.: SDM3399

Quantity:

Product Description

Sdm3399 is a high-end customized development board of Geniatech. It can be applied to business display, digital signage and other application scenarios. It has the functions of document sharing, real-time writing board, intelligent screen casting, etc. Below is the detailed specification：

(I) Rockchip RK3399 with Dual-core ARM Cortex-A72 MPCore processor and Quad-core ARM Cortex-A53MPCore processor

(II)2GB LPDDR4, 8GB eMMc flash

(III) SDM Connector(Intel): PCIe*1,HDMI Out*1,USB2.0*2,Serial Port*1,Display Port Out*1

(IV) WiFi 2.4G + BT + 5G ac and 1000M LAN interface

(V) Designed for Digital Signage or Kiosk Display Solutions,Smart Display Solutions, System Integration

(VI)Dimensions:60x100x25mm

Chipset	Rockchip RK3399
Market area	Global
OSD Language	English/Chinese(multi language OSD)
OS	Android 7.1
Processor	CPU	Dual-core ARM A72 processor@ 1.8GHz And Quad Core A53 @ 1.4GHz
	GPU	ARM Mali-T860MP4 GPU 800MHz
	DDR	2GB（4G Optional）
	EMMC FLASH	8GB（16G/32G/64G Optional）
Network	Ethernet	RJ45, 10/100/1000M
Network	WiFi	IEEE 802.11a/b/g/n/ac , 2.4G + BT + 5.8G
Interface	SDM Connector(Intel)	PCIe* x 8 (98pin) SMT connector
	USB	USB 2.0*2
	M.2	M.2*1
	3.5mm jack	Audio Out
	Battery port	External Battery
Dimensions	60 mm * 100 mm * 25mm

Support Formats

Media Remark	Codec
Video	VP9 Profile-2 up to 4Kx2K@60fps
	H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps
	H.264 AVC HP@L5.1 up to 4Kx2K@30fps
	H.264 MVC up to 1080P @60fps
	MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)
	WMV/VC-1 SP/MP/AP up to 1080P@60fps
	AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps
	MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)
	MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)
	RealVideo 8/9/10 up to 1080P@60fps
	WebM up to VGA
	Multiple language and multiple format sub-title video support
	MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)
	Supports JPEG thumbnail, scaling, rotation and transition effects
	Supports .mkv,.wmv,.mpg, .mpeg, .dat, .avi, .mov, .iso, .mp4, .rm and *.jpg file formats
Audio	Supports MP3, AAC, WMA, RM, FLAC, Ogg, Dolby Digital Optional , Dolby Digital Plus Optional , DTS Optional and programmable with 7.1/5.1 down-mixing
Photo	jpeg, jpg, png
