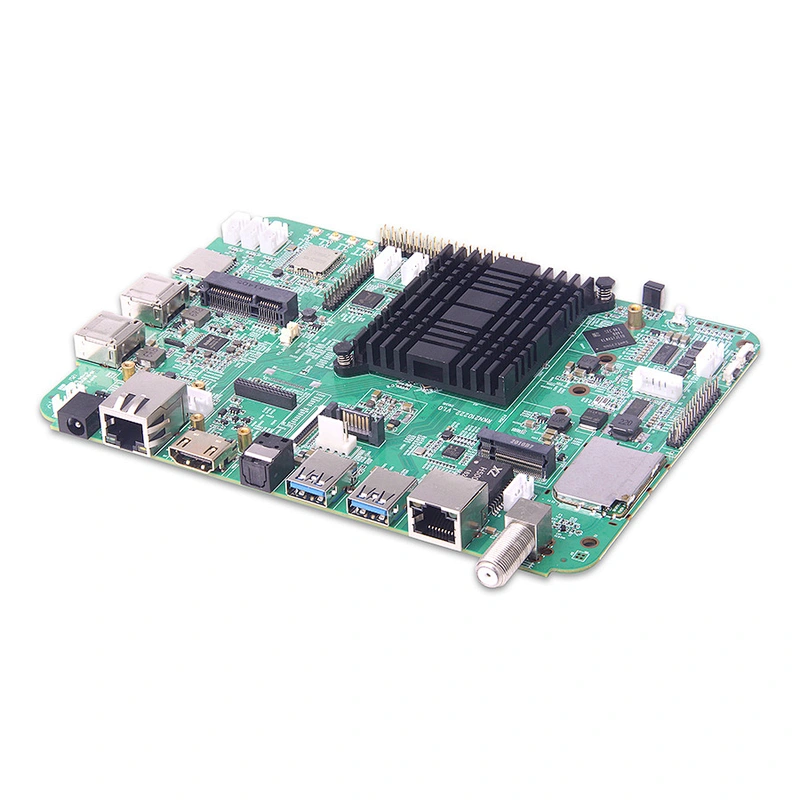

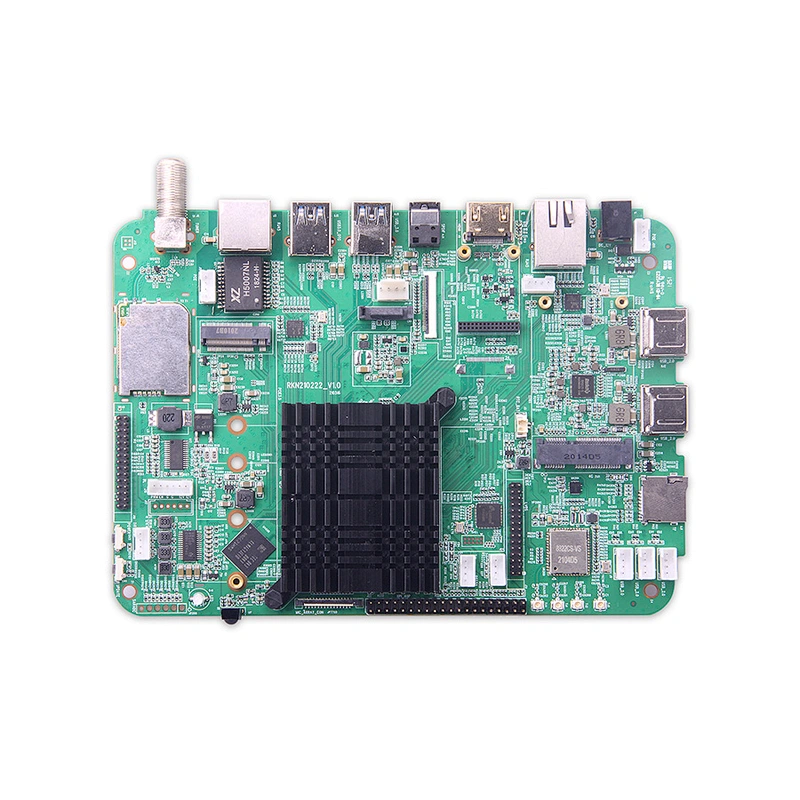

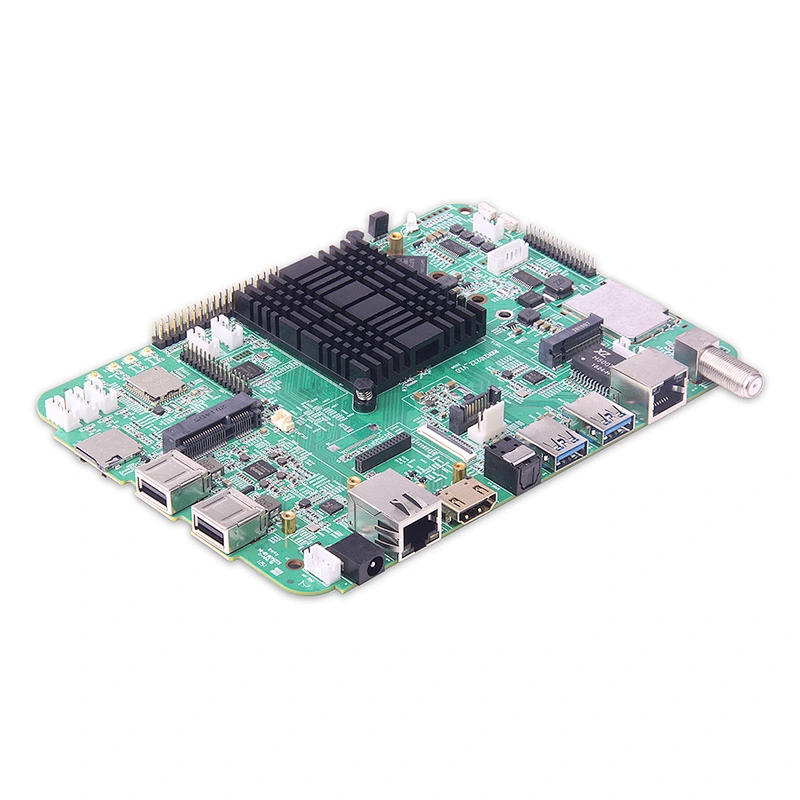

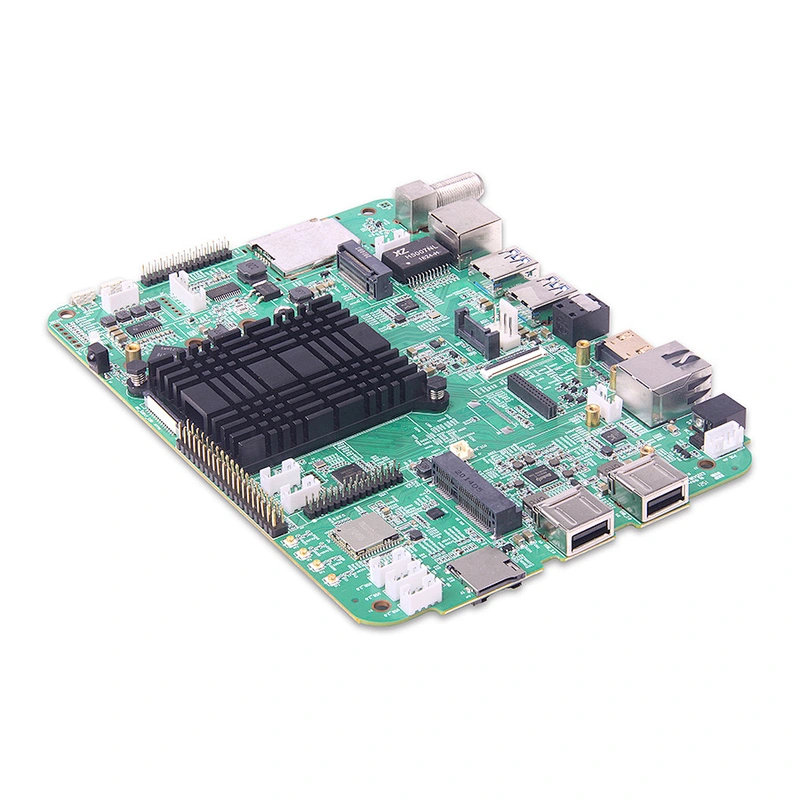

RK3568 Development Board

Model NO.: RK3568 Development Board

▪ Quad-core Cortex-A55 up to 2.0GHz Mali-G52 GPU
▪ Interface rich:LVDS, EDP, SATA, M.2, USB3.0, multiple USB2.0 interfaces, HDMI IN (MIPI), HDMI OUT, GTIOT, SPDIF, RF, 40Pin-XPI,Double Gigabit Network Interface (RGMII0/RGMII1) DEBUG, RS-232, MICPHONE, POE
▪ Multiple OS: Android 10.0 and Linux(Buildroot/Debian/Yocto)
▪ PCIE3.0 1x2Lanes/2x1Lane, 2-way Micphone, etc

Quantity:

Product Description

Quad-core ARM Cortex-A55 CPU and Mali-G52 GPU.	Neural network acceleration engine with processing performance up to 0.8 TOPS
2GB RAM(up to 8GB) 16GB eMMC(up to 128GB)	Build-In Wifi module，2.4G/5.8G， support BT5.0(Optional)，and Double gigabit Ethernet.
Support HDMI out and HDMI in(optional) Support LVDS/MIPI/eDP panel(up to 2K panel)	Support 2*8W(Max) Speaker, and mic array
Used in commercial display, security, industrial control, commercial display and other fields	Rich Interface USB3.0 x 2, USB2.0 x 1, TF Card Slot, SPDIF, RF connector (DVB-T2/ISDB-T/DTMB/ATSC), SIM Card Slot, SATA, M.2, USB2.0 x 3, Uart x 3

Product Specificatio

CPU	Rockchip RK3568 Quad-core ARM Cortex-A55
CPU Frequency	1.5GHz
Internal Memory	2/4GB DDR4
Internal Storage	16/32/64GB EMMC5.1.
OS	Android 11.0/Linux
Bluetooth	5.0(Optional)
Built-in WiFi	802.11 a/b/g/n/ac
WiFi Frequency Range	2.400~2.497GHz, 4.900~5.845GHz
Ethernet port	Double gigabit Ethernet
GPS	No
USB Interface	USB 3.0 Jack x 2; USB 2.0 Jack x 2 USB2.0 Internel socket * 3
Micro SD Card Slot	1
Camera	Integrated Dual ISP with support for image sensors up to 18MP
Expansion connector	• 40 pin extension connector for GPIO • UART x 3, Speaker Socket * 1, Mic 1, Mic Array 1 • 4L-MIPI DSI * 1, MIPI CSI * 1 • HDMI IN * 1，HDMI OUT * 1 • SATA * 1，M.2 * 1, SPDIF 1, MiniPCIe 1 • RF * 1(DVB-T2/ISDB-T/DTMB/ATSC)
Size (mm)	180mm*130mm
Power	12V/2V
