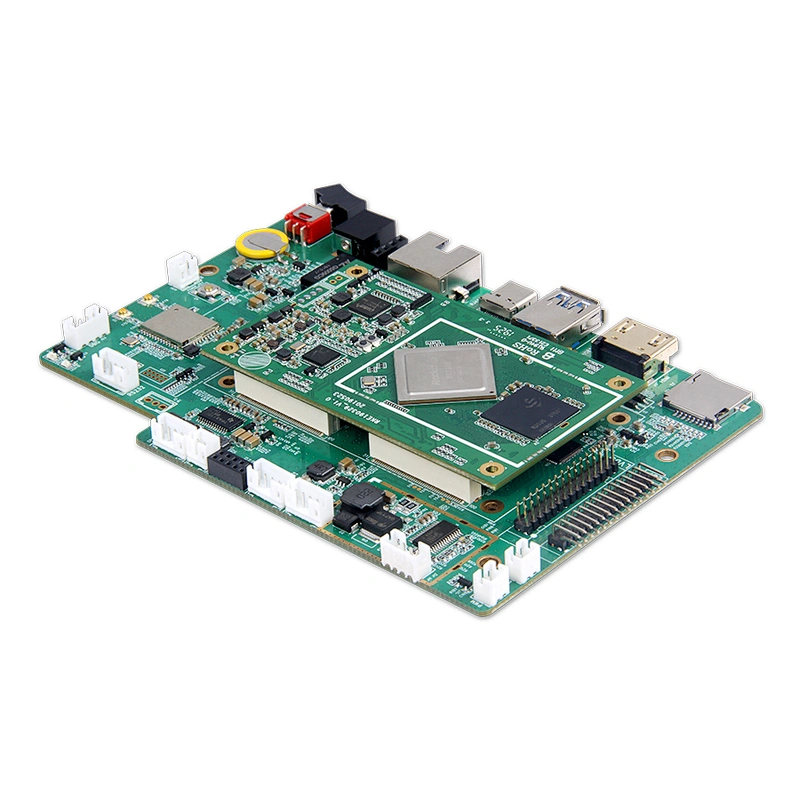

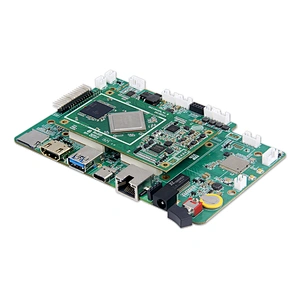

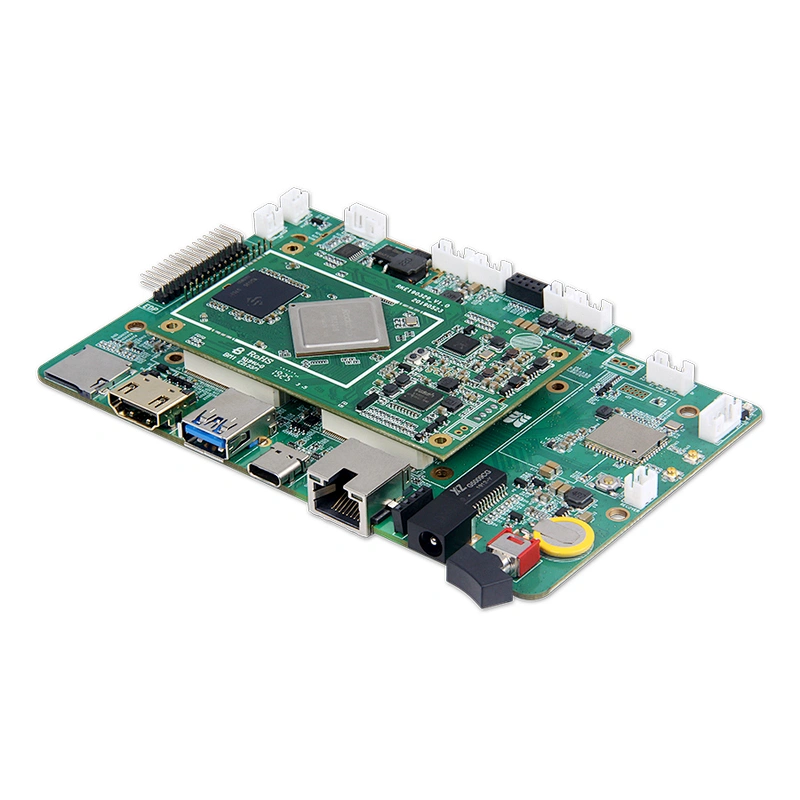

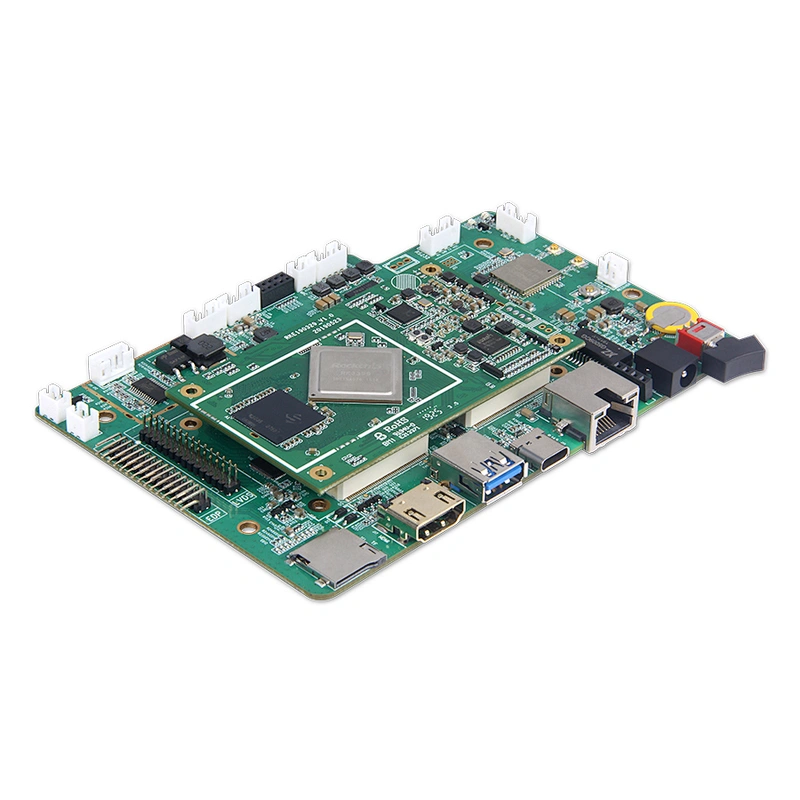

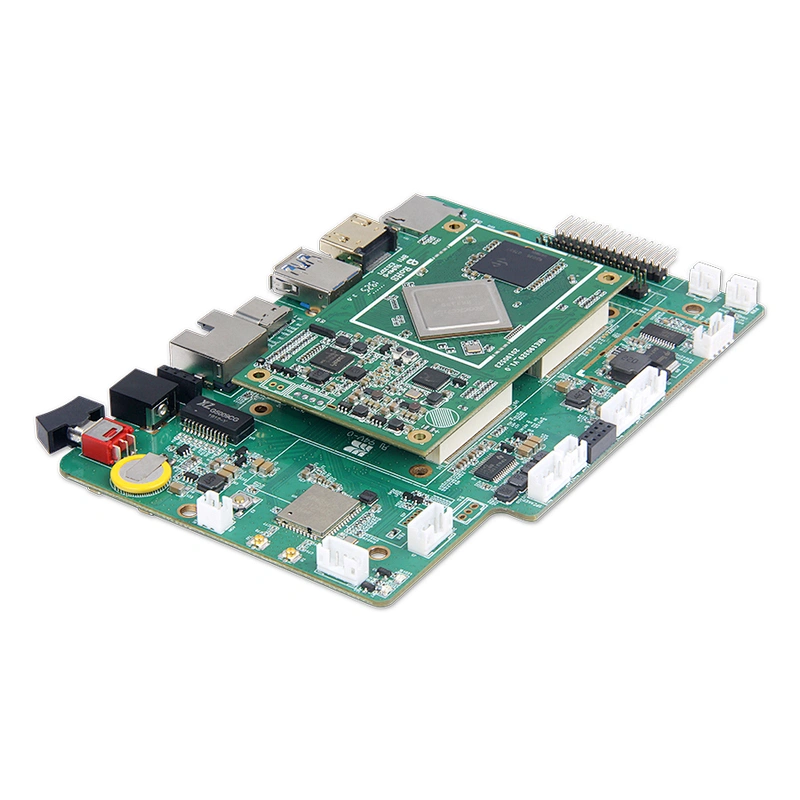

CBD96-3399

Model NO.: CBD96-3399

▪ Compliant with the 96Boards
▪ Dual-core Cortex-A72 and Quad-core Cortex-A53
▪ CPU Frequency : 1.8GHz/1.4GHz
▪ 2GB LPDDR4 (option 4G)
▪ 8GB eMMC (16/32/64GB option)
▪ RJ45 10/100/1000M,802.11 a/b/g/n/ac and Bluetooth 4.2
▪ USB 3.0 x 1; Type-C x 1

Quantity:

Product Description

Processor

Dual-core Cortex-A72 up to 1.8GHz

Quad-core Cortex-A53 up to 1.4GHz

Graphics

ARM® Mali-T860 MP4 Quad-core GPU Support OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11 Support AFBC

Excellent graphics processing power

HD video 3 x 1080p@30fps 4K UHD H265/H264/VP9

Camera

Support 13MP camera, support wavelet denoising, JPEG decoding and other hardware-level post-processing techniques.

Wide range of application scenarios

Applications in the communications, smart home, smart healthcare, Internet of Things (IOT) applications

Compatibility

Compliant with 96Boards Open Hardware Design Specification

Support system diversification

Android, Linux

Enterprise service

Provide comprehensive quality assurance, after-sales service and technical support

Product Specification

CPU	Dual-core Cortex-A72 up to 1.8GHz Quad-core Cortex-A53 up to 1.4GHz
GPU	Mali-T864 GPU
Internal Memory	2GB LPDDR4（4GB option）
Internal Storage	8GB EMMC（16/32/64GB option）
OS	Android 7.1/Linux
Bluetooth	4.2
Built-in WiFi	802.11 a/b/g/n/ac
WiFi Frequency Range	2.400~2.497GHz, 4.900~5.845GHz
Ethernet port	RJ45 10/100/1000Mbps
GPS	Yes
USB Interface	USB 3.0 x 1; Type-C x 1
Micro SD Card Slot	1
Camera	Integrated Dual ISP with support for 2 image sensors up to 13MP
Expansion connector	1x 96boards 40 pin Low-Speed connector • UART x2, SPI, I2S, I2C x2, GPIO x12, DC power 1x 96boards 60 pin High-Speed connector • 4L-MIPI DSI,LVDS, USB, I2C x2, 2L+4L-MIPI CSI 2x Analog expansion connector • headset, speaker via sound-wire interface, microphones, line-outs 1x 60 pin High-Speed connector • secondary 4L-MIPI DSI, SSC serial busses, TSIF – connection available only in hardware
Size (mm)	124*126
Power	12V
